Owner Maintenance

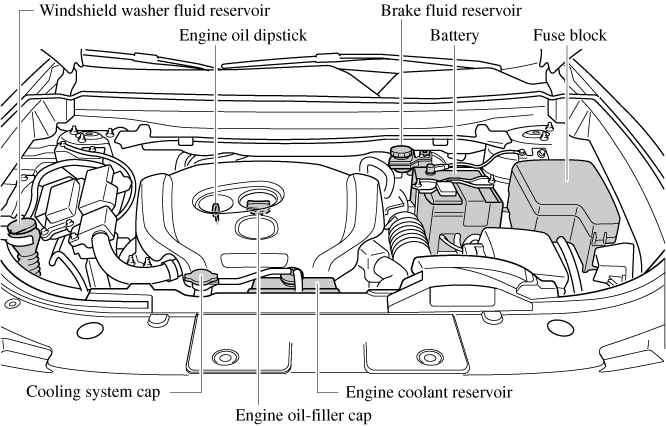

Engine Compartment Overview

Engine Compartment Overview

Engine Coolant

Engine Coolant

Wiper Blades

Replacing Windshield Wiper Blades

When the wipers no longer clean well, the blades are probably worn or cracked.

Replace them.



  • To prevent damage to the wiper arms and other components, do not try to sweep the wiper arm by hand.

  • Do not bend the blade rubber unnecessarily when replacing it. Otherwise, the metal stiffener in the blade may deform and the windshield wiper operation may be adversely affected.

Close Caution
View Caution



When raising both windshield wiper arms, raise the driver's side wiper arm first. When lowering the wiper arms, slowly lower the wiper arm from the passenger's side first while supporting it with your hand. Forcefully lowering the wiper arms could damage the wiper arm and blade, and may scratch or crack the windshield.

Close Note
View Note

  1. Raise the wiper arm.



    To prevent damage to the windshield let the wiper arm down easily, do not let it slap down on the windshield.

    Close Caution
    View Caution

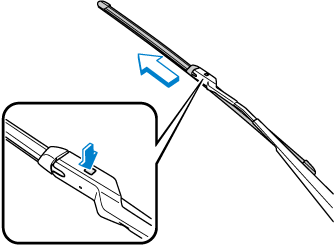

  2. Slide the blade component in the direction of the arrow while pressing the wiper arm tab to remove the blade component from the wiper arm.

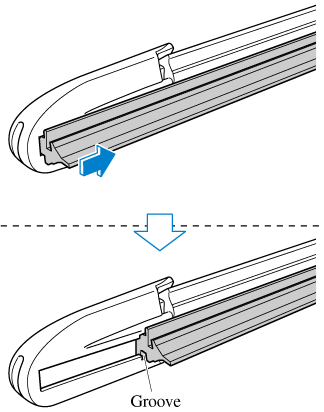

  3. Pull the blade rubber in the direction of the arrow and slide it to a position where the blade holder groove can be checked.

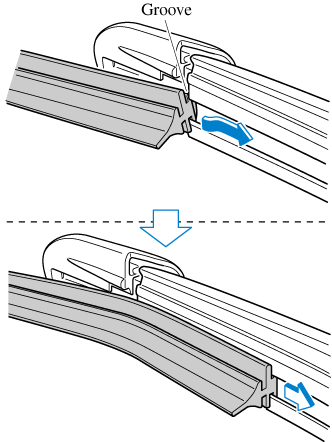

  4. Pull the end of the blade rubber from the blade holder groove in the direction of the arrow and remove the blade rubber from the blade holder.



  5. Insert the end of the new blade rubber into the groove of the blade holder until it contacts the end of the blade holder.

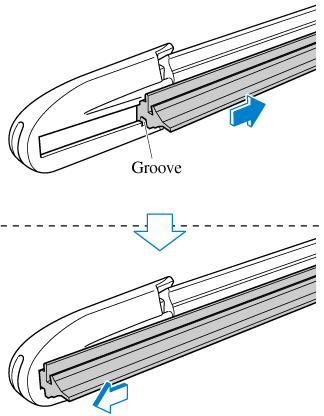

  6. After pulling the blade rubber in the direction of the arrow and sliding the blade rubber to a position to check the blade holder groove, slide the blade rubber end in the opposite direction.



  7. Make sure that the blade rubber is correctly installed to the blade holder.

  8. Align the wiper arm tabs with the blade component grooves.

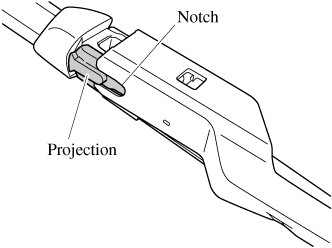

  9. Align the blade component projection with the wiper arm notch.

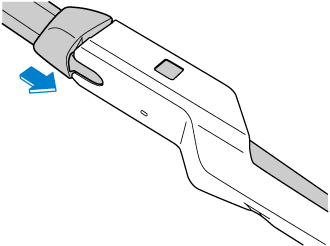

  10. Slide the blade component and install it to the wiper arm.



  11. Slowly lower the wiper arm onto the windshield.

Fuses

Fuse Panel Description

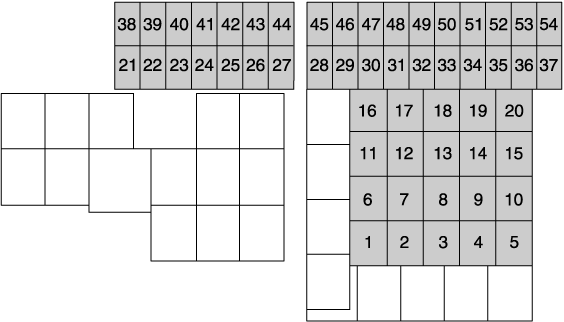

Fuse block (Engine compartment)



DESCRIPTION

FUSE RATING

PROTECTED COMPONENT

1

WIPER.DEI

20 A

Windshield wiper de-icer (Some Models)

2

IG2

30 A

For protection of various circuits

3

INJECTOR

30 A

Engine control system

4

―

―

―

5

P.WINDOW1

30 A

―

6

―

―

―

7

―

―

―

8

EVVT

20 A

Engine control system

9

DEFOG

40 A

Rear window defogger

10

―

―

―

11

R.HEATER

40 A

Air conditioner

12

EPB L

20 A

Electric parking brake (EPB) (LH)

13

AUDIO

40 A

Audio system

14

EPB R

20 A

Electric parking brake (EPB) (RH)

15

ENG.MAIN

40 A

Engine control system

16

ABS/DSC M

50 A

ABS, Dynamic stability control system

17

50 A

For protection of various circuits

18

WIPER

20 A

Front window wiper and washer

19

HEATER

40 A

Air conditioner

20

―

―

―

21

ENGINE.IG1

7.5 A

Engine control system

22

C/U IG1

15 A

For protection of various circuits

23

H/L LOW L

15 A

Headlight low beam (LH)

24

H/L LOW R1

15 A

―

25

ENGINE3

15 A

Engine control system

26

ENGINE2

15 A

Engine control system

27

ENGINE1

15 A

Engine control system

28

AT

15 A

Transaxle control system

29

H/CLEAN

20 A

―

30

A/C

7.5 A

Air conditioner

31

AT PUMP

15 A

―

32

STOP

10 A

Brake lights

33

R.WIPER

15 A

Rear window wiper

34

H/L HI

20 A

Headlight high beam

35

H/L LOW R2

15 A

Headlight low beam (RH)

36

FOG

15 A

Fog lights (Some Models)

37

7.5 A

Engine control system

38

AUDIO2

7.5 A

Audio system (Some Models)

39

INTERIOR

10 A

Overhead light

40

METER2

15 A

―

41

METER1

10 A

Instrument cluster

42

SRS1

7.5 A

Air bag

43

AUDIO4

10 A

Audio system (Some Models)

44

AUDIO1

25 A

Audio system (Some Models)

45

ABS/DSC S

30 A

ABS, Dynamic stability control system

46

―

―

―

47

ST.HEATER

15 A

Heated steering wheel (Some Models)

48

TAIL

15 A

Parking lights

49

FUEL PUMP2

25 A

Fuel system

50

HAZARD

25 A

Hazard warning flashers, Turn signal lights, Taillights

51

DRL

15 A

Daytime running lights

52

R.OUTLET2

15 A

Accessory sockets

53

HORN

15 A

Horn

54

ROOM

25 A

For protection of various circuits

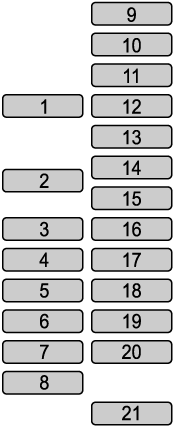

Fuse block (Left side)



DESCRIPTION

FUSE RATING

PROTECTED COMPONENT

1

P.SEAT D

30 A

Power seat (Some Models)

2

P.WINDOW3

30 A

Power windows

3

R.OUTLET3

15 A

Accessory sockets

4

P.WINDOW2

25 A

Power windows

5

PLG

20 A

Power liftgate (Some Models)

6

D.LOCK

25 A

Power door locks

7

SEAT WARM

20 A

Seat warmer (Some Models)

8

SRS2/ESCL

15 A

Trailer hitch (Some Models)

9

SUNROOF

10 A

Moonroof (Some Models)

10

INTERIOR2

15 A

Audio system

11

7.5 A

Engine control system

12

MIRROR

7.5 A

Power control mirror

13

AT IND

7.5 A

AT shift indicator

14

F.OUTLET

15 A

Accessory sockets

15

R.OUTLET1

15 A

Accessory sockets (Some Models)

16

―

―

―

17

M.DEF

7.5 A

Mirror defogger (Some Models)

18

R.SEAT.WARM

20 A

Seat warmer (Some Models)

19

AUDIO3

15 A

Audio system

20

―

―

―

21

P.SEAT P

30 A

Power seat (Some Models)
