Instrument Cluster and Display

Instrument Cluster (Type A)

Multi-information Display (Type A)

The multi-information display indicates the following information.

  • Speedometer

  • Odometer

  • Trip meter

  • Outside temperature

  • Distance-to-empty

  • Average fuel economy

  • Current fuel economy

  • Maintenance Monitor

  • Mazda intelligent Drive Select (Mi-Drive) Display

  • Blind Spot Monitoring (BSM) Display

  • Traffic Sign Recognition System (TSR) Display

  • Distance Recognition Support System (DRSS) Display

  • Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) System Display

  • Traffic Jam Assist (TJA) Display

  • Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Display

  • Cruise Control Display

  • Compass Display

  • Door-Ajar/Liftgate-Ajar Warning Indication

  • Message Display

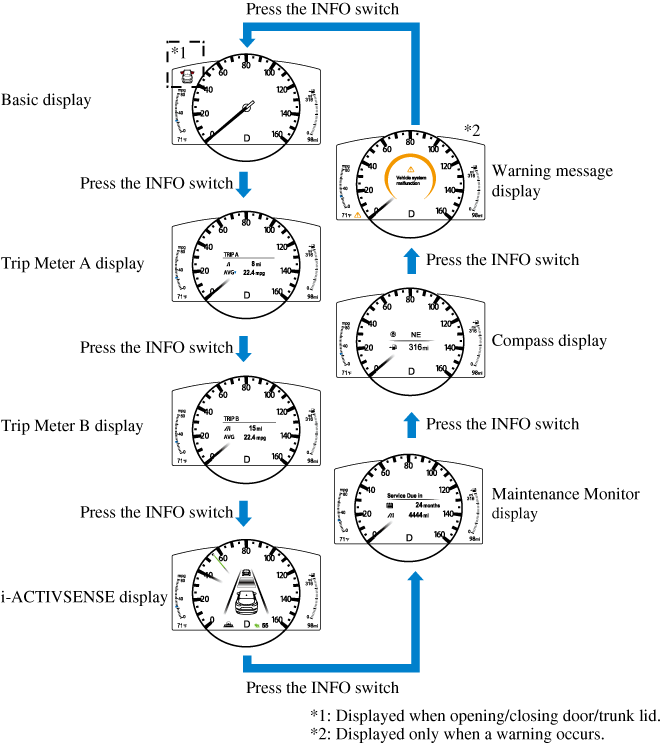

The screen content changes each time the INFO switch is pressed.

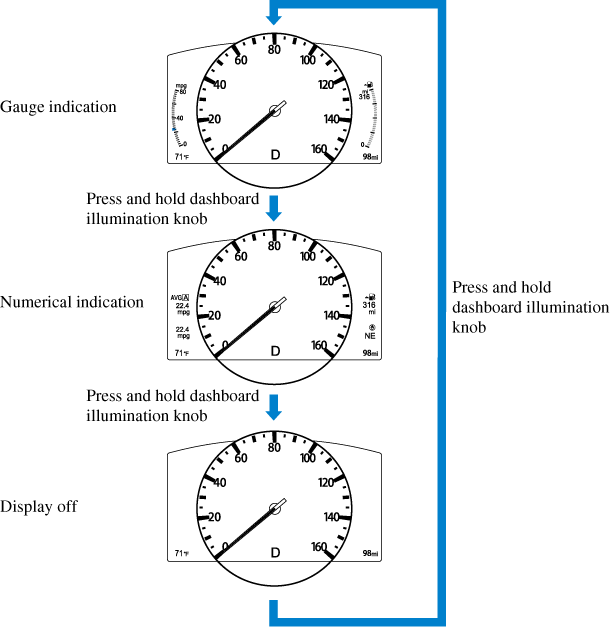

The screen content changes each time the dashboard illumination knob is pressed and held.

Distance Recognition Support System (DRSS) Display (Some Models)

Displays the distance between your vehicle and the vehicle ahead.



Refer to Distance Recognition Support System (DRSS) (Search).

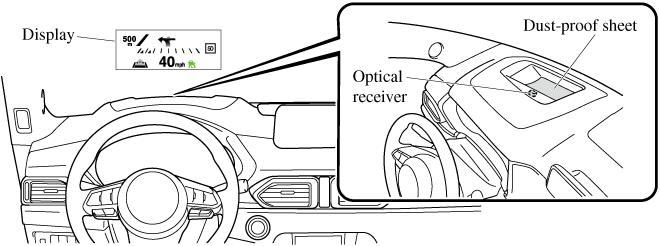

Active Driving Display (Some Models)

Active Driving Display (Some Models)



Always adjust the display brightness and position with the vehicle stopped:

Adjusting the display brightness and position while driving the vehicle is dangerous as doing so could distract your attention from the road ahead and lead to an accident.

Close Warning
View Warning



  • Do not place beverages near the active driving display. If water or other liquids are splashed on the active driving display, it could cause damage.

  • Do not place objects above the active driving display or apply stickers to the dust-proof sheet/optical receiver as they will cause interference.

  • A sensor is integrated to control the display's luminosity. If the optical receiver is covered, the display's luminosity will lower making the display difficult to view.

  • Do not allow intense light to hit the optical receiver. Otherwise, it could cause damage.

Close Caution
View Caution



  • Wearing polarized sunglasses will reduce the visibility of the active driving display due to the characteristics of the display.

  • If the battery has been removed and re-installed or the battery voltage is low, the adjusted position may deviate.

  • The display may be difficult to view or temporarily affected by weather conditions such as rain, snow, light, and temperature.

  • If the audio system is removed, the active driving display cannot be operated.

Close Note
View Note

The active driving display indicates the following information:

  • Blind Spot Monitoring (BSM) Operation Conditions and Warnings

    Refer to Blind Spot Monitoring (BSM) (Search).

  • Traffic Sign Recognition System (TSR) traffic signs and Warnings

    Refer to Traffic Sign Recognition System (TSR) (Search).

  • Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Operation Conditions and Warnings

    Refer to Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) (Search).

  • Traffic Jam Assist (TJA) Operation Conditions and Warnings

    Refer to Traffic Jam Assist (TJA) (Search).

  • Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Operation Conditions and Warnings

    Refer to Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) (Search).

  • Advanced Smart City Brake Support (Advanced SCBS) Warnings

    Refer to Advanced Smart City Brake Support (Advanced SCBS) (Search).

  • Smart City Brake Support [Forward] (SCBS F) Warnings

    Refer to Smart City Brake Support [Forward] (SCBS F) (Search).

  • Smart Brake Support (SBS) Operation Conditions and Warnings

    Refer to Smart Brake Support (SBS) (Search).

  • Cruise Control Operation Conditions

    Refer to Cruise Control (Search).

  • Navigation Guidance (vehicles with navigation system)

  • Speed limit indicator (vehicles with navigation system)

  • Vehicle Speed

The active driving display settings can be changed or adjusted.

Refer to the Settings section in the Mazda Connect Owner's Manual.



  • The desired driving position (display position, brightness level, display information) can be called up after programming the position.

    Refer to Driving Position Memory (Search).

Close Note
View Note
