Active Driving Display (Some Models)



Always adjust the display brightness and position with the vehicle stopped:

Adjusting the display brightness and position while driving the vehicle is dangerous as doing so could distract your attention from the road ahead and lead to an accident.

Close Warning



  • Do not place beverages near the active driving display. If water or other liquids are splashed on the active driving display, it could cause damage.

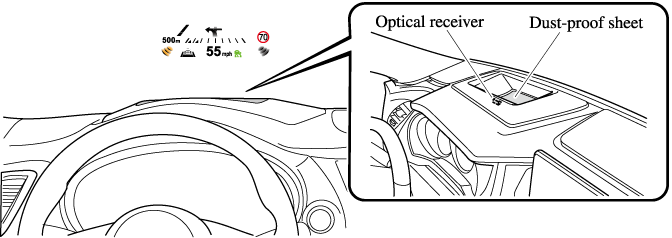

  • Do not place objects above the active driving display or apply stickers to the dust-proof sheet/optical receiver as they will cause interference.

  • A sensor is integrated to control the display's luminosity. If the optical receiver is covered, the display's luminosity will lower making the display difficult to view.

  • Do not allow intense light to hit the optical receiver. Otherwise, it could cause damage.

Close Caution



  • It may be difficult to view the display when wearing polarized sunglasses. Take off your polarized sunglasses or adjust the luminosity.

  • If the battery has been removed and re-installed or the battery voltage is low, the adjusted position may deviate.

  • The display may be difficult to view or temporarily affected by weather conditions such as rain, snow, light, and temperature.

  • If the audio system is removed, the active driving display cannot be operated.

Close Note

The active driving display indicates the following information:

  • Blind Spot Monitoring (BSM) Operation Conditions and Warnings

    Refer to Blind Spot Monitoring (BSM) (Search).

  • Distance Recognition Support System (DRSS) Operation Conditions and Warnings

    Refer to Distance Recognition Support System (DRSS) (Search).

  • Mazda Radar Cruise Control (MRCC) Operation Conditions and Warnings

    Refer to Mazda Radar Cruise Control (MRCC) (Search).

  • Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Operation Conditions and Warnings

    Refer to Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) (Search).

  • Smart City Brake Support (SCBS) Warnings

    Refer to Smart City Brake Support (SCBS) (Search).

  • Smart Brake Support (SBS) Operation Conditions and Warnings

    Refer to Smart Brake Support (SBS) (Search).

  • Cruise Control Operation Conditions

    Refer to Cruise Control (Search).

  • Navigation Guidance (vehicles with navigation system)

  • Speed limit indicator (vehicles with navigation system)

  • Tachometer

  • Vehicle Speed

Each setting/adjustment for the active driving display can be performed on the center display.

  1. Select the icon on the home screen and display the Settings screen.

  2. Select the AD-Disp tab.

  3. Select the desired item and perform the setting/adjustment.

    • Method for adjusting screen brightness (automatically/manually)

    • Screen brightness initial settings (automatic adjustment is selected)

    • Screen brightness adjustment (manual adjustment is selected)

    • Display position of active driving display (display height)

    • Active driving display angle adjustment (display angle correction)

    • Turn by turn (TBT) display/non-display (navigation guidance)

    • Street name display timing can be changed (navigation guidance)

    • Tachometer display/non-display

    • Active driving display ON/OFF (indication)

    • Reset settings (reset)



  • The desired driving position (display position, brightness level, display information) can be called up after programming the position.

    Refer to Driving Position Memory (Search).
