Instrument Cluster and Display
Warning/Indicator Lights

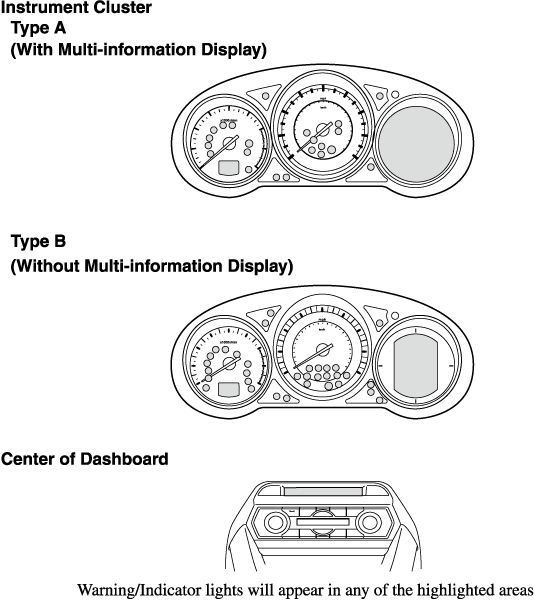

Instrument Cluster varies depending on model and specifications.
Warning Indication/Warning Lights
These lights turn on or flash to notify the user of the system operation status or a system malfunction.
|
Signal |
Warning |
Page |
|---|---|---|
 |
Brake System Warning Indication/Warning Light*1*2 |
(Search) |
 |
ABS Warning Light*1 |
Electronic Brake Force Distribution System Warning (Search), ABS warning (Search) |
 |
Charging System Warning Indication/Warning Light*1 |
(Search) |
 |
Engine Oil Warning Light*1 |
(Search) |
 (Red) |
High Engine Coolant Temperature Warning Indication/Warning Light*1 (Some Models) |
(Search) |
 |
Power Steering Malfunction Indication/Malfunction Indicator Light*1 |
(Search) |
 |
Master Warning Indication/Warning Light*1 (Some Models) |
(Search) |
 |
Electric Parking Brake Warning Indication/Warning Light |
(Search) |
 |
Engine Oil Level Warning Indication (Some Models) |
(Search) |
 |
Check Engine Light*1 |
(Search) |
 |
Automatic Transaxle Warning Indication/Warning Light*1 |
(Search) |
 |
AWD Warning Indication/Warning Light*1 (Some Models) |
(Search) |
 |
Air Bag/Front Seat Belt Pretensioner System Warning Light*1 |
(Search) |
 |
Tire Pressure Monitoring System Warning Light*1 (Some Models) |
|
 (Amber) |
KEY Warning Indication (Some Models) |
(Search) |
 (Red) |
KEY Warning Light*1 (Some Models) |
|
 (Amber) |
High Beam Control System (HBC) Warning Indication/Warning Light*1 (Some Models) |
(Search) |
 |
Blind Spot Monitoring (BSM) Warning Indication/Warning Light*1 (Some Models) |
(Search) |
 (Amber) |
Mazda Radar Cruise Control (MRCC) Warning Indication (Some Models) |
(Search) |
 (Amber) |
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Warning Indication (Some Models) |
(Search) |
 |
LED Headlight Warning Light |
(Search) |
 (Amber) |
Smart Brake Support/Smart City Brake Support (SBS/SCBS) Warning Indication (Some Models) |
(Search) |
 |
Low Fuel Warning Indication/Warning Light |
(Search) |
 |
Check Fuel Cap Warning Indication/Warning Light*1 (Some Models) |
(Search) |
 |
Seat Belt Warning Light |
(Search) |
|
Engine Oil Level Warning Light |
(Search) |
 |
Low Washer Fluid Level Warning Indication/Warning Light (Some Models) |
(Search) |
 |
Door-Ajar Warning Indication (Some Models) |
(Search) |
 |
Liftgate-Ajar Warning Indication (Some Models) |
(Search) |
 |
Door-Ajar Warning Light (Some Models) |
(Search) |
-
The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an Authorized Mazda Dealer.
-
The light turns on continuously when the parking brake is applied.
Indication/Indicator Lights
These lights turn on or flash to notify the user of the system operation status or a system malfunction.
|
Signal |
Indicator |
Page |
|---|---|---|
 |
Front Passenger Air Bag Deactivation Indicator Light*1 |
(Search) |
 (White/Green) |
KEY Indication/Indicator Light |
(Search) |
 |
Security Indicator Light*1 |
(Search) |
 |
Wrench Indication/Indicator Light*1 |
(Search) |
 (Blue) |
Low Engine Coolant Temperature Indicator Light (Some Models) |
(Search) |
 |
Shift Position Indication |
(Search) |
 |
Lights-On Indication/Indicator Light |
(Search) |
 |
Headlight High-Beam Indicator Light |
Headlight High-Low Beam (Search), Flashing the Headlights (Search) |
 |
Turn Signal/Hazard Warning Indicator Lights |
Turn and Lane-Change Signals (Search), Hazard Warning Flasher (Search) |
 |
Brake Pedal Operation demand Indicator Light |
(Search) |
 |
TCS/DSC Indicator Light*1 |
(Flashes) Traction Control System (TCS) (Search), Dynamic Stability Control (DSC) (Search) (Turns on) (Search) |
 |
TCS OFF Indicator Light*1 |
(Search) |
 |
Select Mode Indication |
(Search) |
 (Green) |
High Beam Control System (HBC) Indicator Light (Some Models) |
(Search) |
 (White) |
Mazda Radar Cruise Control (MRCC) Main Indication (Some Models) |
(Search) |
 (Green) |
Mazda Radar Cruise Control (MRCC) Set Indication (Some Models) |
(Search) |
 (White/Green) |
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Indication (Some Models) |
|
|
Smart City Brake Support (SCBS) Indication (Some Models) |
|
 |
Smart Brake Support/Smart City Brake Support (SBS/SCBS) OFF Indicator Light*1 (Some Models) |
Smart City Brake Support (SCBS) System (Search), Smart Brake Support (SBS) System (Search) |
 (White) |
Cruise Main Indication (Some Models) |
(Search) |
 (Green) |
Cruise Set Indication (Some Models) |
(Search) |
-
The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an Authorized Mazda Dealer.
Wrench Indicator Light (Some Models)
When the ignition is switched ON, the wrench indicator light turns on and then turns off after a few seconds.
The wrench indicator light turns on under the following conditions:
-
When the preset maintenance period has arrived.
-
When its time to replace the engine oil.
Refer to Maintenance Monitor (Search).
Low Engine Coolant Temperature Indicator Light (Blue) (Some Models)
The light illuminates continuously when the engine coolant temperature is low and turns off after the engine is warm.
