Rear Air Conditioner
Climate control information is displayed on the display.

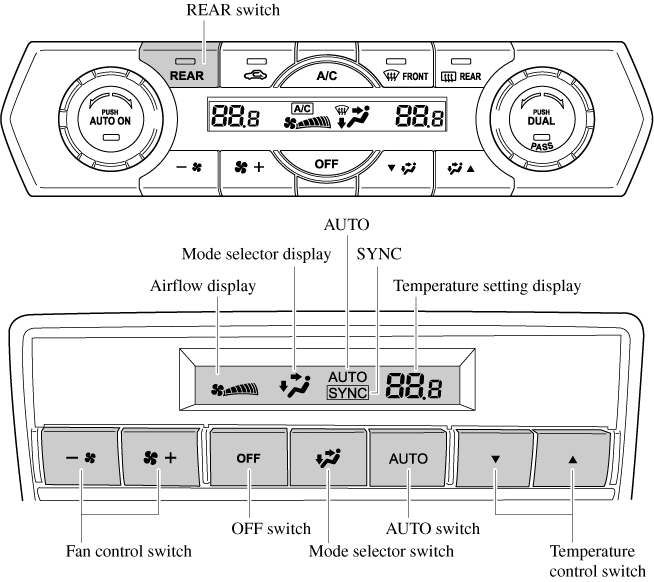

Control Switches
Rear switch
Press the rear switch to operate the rear air-conditioning.
The indicator illuminates to indicate that the rear air-conditioning is operating.
AUTO switch
By pressing the AUTO switch the following functions will be automatically controlled in accordance with the set temperature:
-
Airflow temperature
-
Amount of airflow
-
Selection of airflow mode
OFF switch
Pressing the OFF switch shuts off the climate control system.
Temperature control switch
This switch controls temperature. Press
for hot and
for cold.
Fan control switch
The fan has five speeds. The selected speed will be displayed.
Mode selector switch
The desired airflow mode can be selected. Refer to Selecting the Airflow Mode (Search).
Operation of Automatic Air-conditioning
Operation from front seats
-
Turn the front air-conditioning on.
-
Press the rear switch. The rear air-conditioning operates.
-
Selection of the airflow mode, airflow amount and temperature will be automatically controlled to the same temperature setting as the front air conditioner for the driver's side.
-
If the AUTO switch is pressed while the front A/C switch is off, the rear air-conditioning operates only to circulate air.
-
Setting the temperature to the maximum high or low will not provide the desired temperature at a faster rate.
-
When selecting heat, the system will restrict airflow until it has warmed to prevent cold air from blowing out of the vents.
-
When the rear air conditioner is controlled to the same temperature setting as the front air conditioner for the driver's side, “SYNC” is displayed on the rear screen.
Close Note
-
Operation from rear seats
-
Turn the front air-conditioning on.
-
Press the AUTO switch. The selection of the airflow mode and airflow amount will be automatically controlled.
-
Use the temperature control switch to set the desired temperature.
-
If the AUTO switch is pressed while the front A/C switch is off, the rear air-conditioning operates only to circulate air.
-
Setting the temperature to the maximum high or low will not provide the desired temperature at a faster rate.
-
When selecting heat, the system will restrict airflow until it has warmed to prevent cold air from blowing out of the vents.
-
When the rear air conditioner is operated automatically, “AUTO” is displayed on the rear screen.
-
When the rear air conditioner is controlled to the same temperature setting as the front air conditioner for the driver's side, “SYNC” is displayed on the rear screen.
Close Note -
To turn off the system, press the OFF switch.
