Interior FeaturesInterior EquipmentInterior Lights

Interior Lights



  • Do not leave the lights on for long periods while the engine is turned off. Otherwise the battery power could be depleted.

Close Note

Overhead Lights

Switch Position

Overhead Lights

Light off

  • Light is on when any door is open

  • Light is on or off when the illuminated entry system is on

Light on

Front

Center

Rear



The rear overhead light and the center map lights also turn on and off when the front overhead light switch is operated.

Close Note

Map Lights

When the overhead light switch is in the door or off position, press the lens to illuminate the map lights, and then press the lens again to turn them off.

Front

Center



  • Once the center map lights have been turned off, they will turn on and off depending on the position to which the overhead light is switched.

  • The map lights will not turn off even if the lens is pressed in the following cases:

    • The overhead light switch is in the ON position.

    • The overhead light switch is in the door position with the door open.

    • The illuminated entry system is on.

Close Note

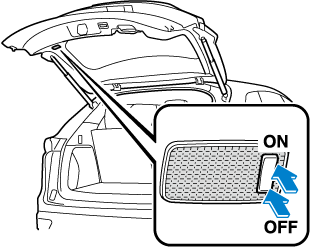

Luggage Compartment Lights



Switch Position

Luggage Compartment Light

Light off

Light on when the liftgate is open

Ambient Light (Some Models)

The ambient lights continuously turn on when the ignition is switched ON.

The ambient lights dim when the parking lights or headlights are turned on.



  • The ambient lights turn on or off in conjunction with the illuminated entry system when the ignition is switched OFF.

  • The ambient light illumination level can be changed while the parking lights or headlights are turned on.

    Refer to Personalization Features (Search).

Close Note
Interior FeaturesInterior EquipmentInterior Lights

Illuminated Entry System

When the illuminated entry system operates, the overhead lights and the ambient lights turn on in the following conditions:

  • The driver's door is unlocked after the ignition is switched OFF.

  • The ignition is switched OFF with all doors closed.



  • (Overhead lights)

    The illuminated entry system operates when the overhead light switch is in the DOOR position.

  • The illumination time differs depending on the operation.

  • Battery saver

    If an interior light is left on with the ignition switched OFF, the light is turned off automatically after about 30 minutes to prevent battery depletion.

  • The operation of the illuminated entry system can be changed.

    Refer to Personalization Features (Search).

Close Note
