i-ACTIVSENSE

The Blind Spot Monitoring (BSM) will operate when all of the following conditions are met:

• The ignition is switched ON.

• The Blind Spot Monitoring (BSM) OFF indicator light in the instrument cluster is turned off.

• The vehicle speed is about 10 km/h (6.3 mph) or faster.

The Blind Spot Monitoring (BSM) will not operate under the following circumstances.

• The vehicle speed falls below about 10 km/h (6.3 mph) even though the Blind Spot Monitoring (BSM) OFF indicator light is turned off.

• The shift lever (manual transaxle)/selector lever (automatic transaxle) is shifted to reverse (R) and the vehicle is reversing.

In the following cases, the Blind Spot Monitoring (BSM) OFF indicator light turns on and operation of the system is stopped. If the Blind Spot Monitoring (BSM) OFF indicator light remains illuminated, have the vehicle inspected at an Authorized Mazda Dealer as soon as possible.

• Some problem with the system including the Blind Spot Monitoring (BSM) warning indicator lights is detected.

• A large deviation in the installation position of a radar sensor (rear) on the vehicle has occurred.

• There is a large accumulation of snow or ice on the rear bumper near a radar sensor (rear). Remove any snow, ice or mud on the rear bumper.

• Driving on snow-covered roads for long periods.

• The temperature near the radar sensors (rear) becomes extremely hot due to driving for long periods on slopes during the summer.

• The battery voltage has decreased.

Under the following conditions, the radar sensors (rear) cannot detect target objects or it may be difficult to detect them.

• A vehicle is in the detection area at the rear in an adjacent driving lane but it does not approach. The Blind Spot Monitoring (BSM) determines the condition based on radar detection data.

• A vehicle is traveling alongside your vehicle at nearly the same speed for an extended period of time.

• Vehicles approaching in the opposite direction.

• A vehicle in an adjacent driving lane is attempting to pass your vehicle.

• A vehicle is in an adjacent lane on a road with extremely wide driving lanes. The detection area of the radar sensors (rear) is set at the road width of expressways.

In the following case, the flashing of the Blind Spot Monitoring (BSM) warning indicator light, and the activation of the warning sound and the warning screen indicator display may not occur or they may be delayed.

• A vehicle makes a lane change from a driving lane two lanes over to an adjacent lane.

• Driving on steep slopes.

• Crossing the summit of a hill or mountain pass.

• The turning radius is small (making a sharp turn, turning at intersections).

• When there is a difference in the height between your driving lane and the adjacent lane.

• Directly after the Blind Spot Monitoring (BSM) system becomes operable by changing the setting.

If the road width is extremely narrow, vehicles two lanes over may be detected. The detection area of the radar sensors (rear) is set according to the road width of expressways.

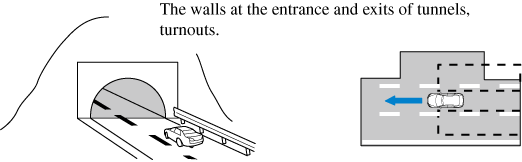

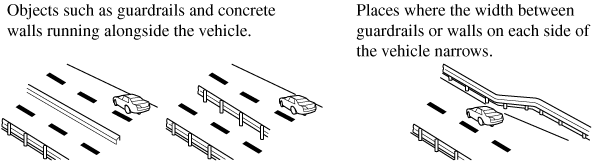

The Blind Spot Monitoring (BSM) warning indicator light may turn on and the vehicle detection screen may be displayed in the display in reaction to stationary objects (guardrails, tunnels, sidewalls, and parked vehicles) on the road or the roadside.

A Blind Spot Monitoring (BSM) warning indicator light may flash or the warning beep may be activated several times when making a turn at a city intersection.

Turn off the Blind Spot Monitoring (BSM) while pulling a trailer or while an accessory such as a bicycle carrier is installed to the rear of the vehicle. Otherwise, the radar’s radio waves will be blocked causing the system to not operate normally.

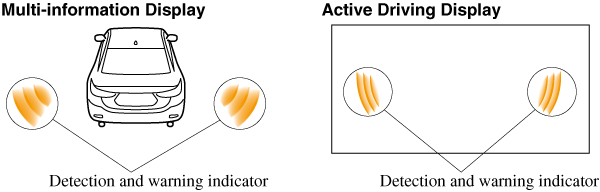

In the following cases, it may be difficult to view the illumination/flashing of the Blind Spot Monitoring (BSM) warning indicator lights equipped on the door mirrors.

• Snow or ice is adhering to the door mirrors.

• The front door glass is fogged or covered in snow, frost or dirt.

If a vehicle with the Blind Spot Monitoring (BSM) system is driven in a country other than the U.S.A., Canada, or Mexico, the system has to be turned off by changing the setting on the center display.

The system switches to the Rear Cross Traffic Alert function when the shift lever (manual transaxle) or the selector lever (automatic transaxle) is shifted to the reverse (R) position.

Refer to Rear Cross Traffic Alert (RCTA) (Search).
