Owner Maintenance

Overhead lights (Front)/Map lights, Overhead lights (Rear)

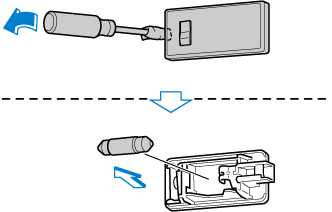

1. Wrap a small flathead screwdriver with a soft cloth to prevent damage to the lens, and then remove the lens by carefully prying on the edge of the lens with the flathead screwdriver.

2. Disconnect the bulb by pulling it out.

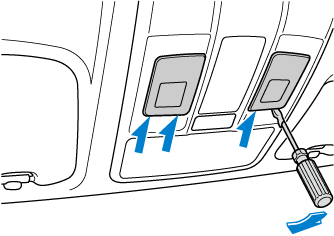

   Overhead lights (Front)/Map lights

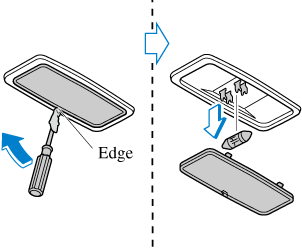

   Overhead lights (Rear)





3. Install the new bulb in the reverse order of the removal procedure.

Luggage compartment light

1. Wrap a small flathead screwdriver with a soft cloth to prevent damage to the lens and remove the lens unit by carefully prying on the edge of the lens unit with the flathead screwdriver.

2. Disconnect the bulb by pulling it out.





3. Install the new bulb in the reverse order of the removal procedure.
