Instrument Cluster and Display

Fuel Gauge

The fuel gauge shows approximately how much fuel is remaining in the tank when the ignition is switched ON. We recommend keeping the tank over 1/4 full.

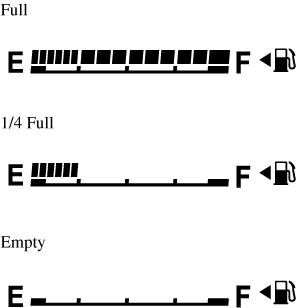

Type A/Type B instrument cluster

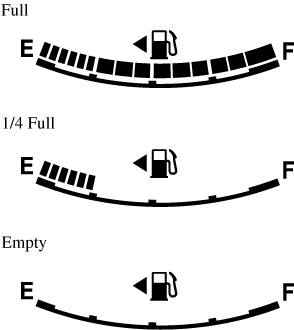

Type C instrument cluster

If the low fuel warning light illuminates or the fuel level is very low, refuel as soon as possible.

Refer to Taking Action (Search) .

After refueling, it may require some time for the indicator to stabilize. In addition, the indicator may deviate while driving on a slope or curve since the fuel moves in the tank.
The display indicating a quarter or less remaining fuel has more segments to show the remaining fuel level in greater detail.
The direction of the arrow () indicates that the fuel-filler lid is on the left side of the vehicle.

Close Note

View Note

Outside Temperature Display (Some Models)

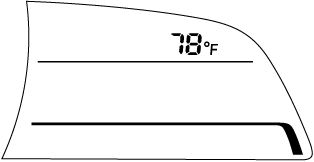

When the ignition is switched ON, the outside temperature is displayed.

Under the following conditions, the outside temperature display may differ from the actual outside temperature depending on the surroundings and vehicle conditions:
- Significantly cold or hot temperatures.
- Sudden changes in outside temperature.
- The vehicle is parked.
- The vehicle is driven at low speeds.

Close Note

View Note

Active Driving Display (Some Models)

Warning/Indicator Lights

Warning Lights

These lights turn on or flash to notify the user of the system operation status or a system malfunction.

Signal	Warning	Page
	Brake System Warning Light^12	(Search)
	ABS Warning Light^*1	Electronic Brake Force Distribution System Warning (Search)
	ABS Warning Light^*1	ABS warning (Search)
	Charging System Warning Light^*1	(Search)
	Engine Oil Warning Light^*1	(Search)
(Red)	High Engine Coolant Temperature Warning Light^*1	(Search)
	Power Steering Malfunction Indicator Light^*1	(Search)
	Master Warning Light^*1	(Search)
	Electric Parking Brake (EPB) Warning Light^*1 (Some Models)	(Search)
	Check Engine Light^*1	(Search)
	Automatic Transaxle Warning Light^*1 (Some Models)	(Search)
	Air Bag/Seat Belt Pretensioner System Warning Light^*1	(Search)
	Tire Pressure Monitoring System Warning Light^*1 (Some Models)	Flashing (Search)
		Turns on (Search)
(Red)	KEY Warning Light^*1	Turns on (Search)
(Red)	KEY Warning Light^*1	Flashing (Search)
(Amber)	High Beam Control System (HBC) Warning Light^*1 (Some Models)	(Search)
(Amber)	Mazda Radar Cruise Control (MRCC) Warning Light (Some Models)	(Search)
	Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Warning Light^*1 (Some Models)	(Search)
	LED Headlight Warning Light^*1 (Some Models)	(Search)
(Amber)	Smart Brake Support/Smart City Brake Support (SBS/SCBS) Warning Light^*1 (Some Models)	(Search)
	Low Fuel Warning Light	(Search)
	Check Fuel Cap Warning Light^*1	(Search)
	Seat Belt Warning Light	(Search)
	Low Washer Fluid Level Warning Light (Some Models)	(Search)
	Door-Ajar Warning Light	(Search)

The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an Authorized Mazda Dealer.
The light turns on continuously when the parking brake is applied.

Wrench Indicator Light

When the ignition is switched ON, the wrench indicator light is illuminated and then turns off after a few seconds.

The wrench indicator light is illuminated when the preset maintenance period arrives. Verify the content and perform maintenance.

Refer to Maintenance Monitor (Search).
