Climate Control System
Manual Climate Control
Operation of Automatic Air Conditioner
-

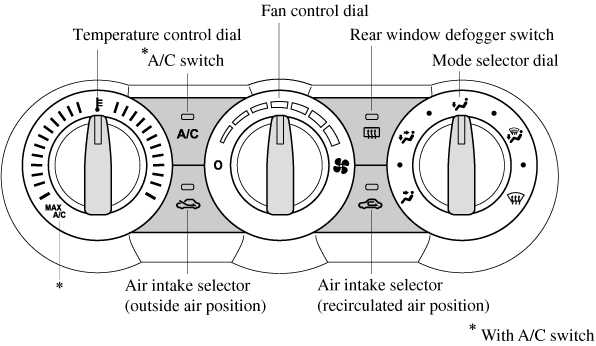

Set the mode selector dial to the AUTO position.
-
Set the air intake selector to the outside air position (indicator light turned off).
If the recirculated air position is used for long periods in cold weather or high humidity, the windshield may fog up more easily.
-
Set the fan control dial to the AUTO position.
-
Press the A/C switch to operate the air conditioner (turn indicator light on).
-
Set the temperature control dial to the desired position.
-
To turn off the system, set the fan control dial to the 0 position.
-
Setting the temperature to maximum hot or cold will not provide the desired temperature at a faster rate.
-
When selecting heat, the system will restrict airflow until it has warmed to prevent cold air from blowing out of the vents.
