Audio System

Operating Tips for Audio System

Operating Tips for OGG

OGG is the audio compression format for Xiph. Org Foundation.

Audio data can be created and stored at a higher compression ratio than MP3.

This unit plays files with the extension (.ogg) as OGG files.





Do not use an audio file extension on files other than audio files. In addition, do not change the audio file extension. Otherwise, the unit will not recognize the file correctly resulting in noise or a malfunction.

Close Caution
View Caution

  • OGG files written under specifications other than the indicated specification may not play normally or files or folder names may not display correctly.

  • The file extension may not be provided depending on the computer operating system, version, software, or settings. In this case, add the file extension “.ogg” to the end of the file name, and then write it to the memory.

Audio set [Type B (touchscreen)]

Audio set [Type B (touchscreen)]



The explanation of functions described in this manual may differ from the actual operation, and the shapes of screens and buttons and the letters and characters displayed may also differ from the actual appearance.

Additionally, depending on future software updates, the content may successively change without notice.

Close Note
View Note

Audio Set (Type B) has three different human interfaces.

  • Commander switch

  • Touch panel

  • Voice recognition with steering switch and microphone

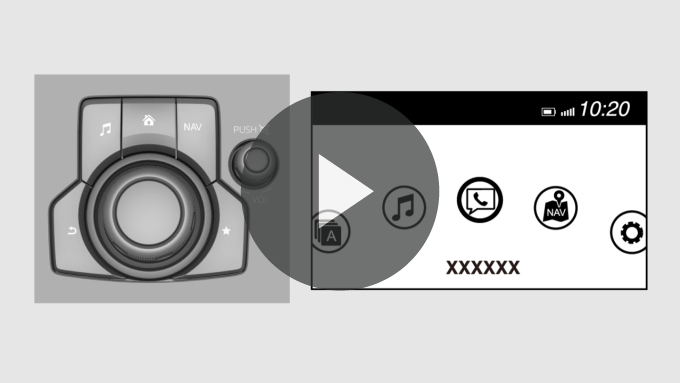

Commander switch operation



For safety reasons, some operations are disabled while the vehicle is being driven.

Close Note
View Note

Volume dial operation

Press the volume dial to switch the audio MUTE on and off.

Turn the volume dial to adjust the volume. The volume increases by turning the dial clockwise, and decreases by turning it counterclockwise.

Switches around commander knob

The following operations can be done by pressing the switches around the commander knob.

: Displays the home screen.

: Displays the Entertainment screen.

: Displays the Navigation screen (Only navigation-equipped vehicles). For operation of the Navigation screen, refer to the navigation system manual. If the SD card for the navigation system is not inserted, the compass indicating the direction in which the vehicle is moving is displayed.

: Displays the Favorites screen. Long-press to store particular items in Favorites. (Radio, phonebook and destination of the navigation system can be programmed.)

: Returns to previous screen.

Commander knob operation



(Selection of icons on screen)

  1. Tilt or turn the commander knob and move the cursor to the desired icon.

  2. Press the commander knob and select the icon.



Long-press operation of the commander knob is also possible for some functions.

Close Note
View Note

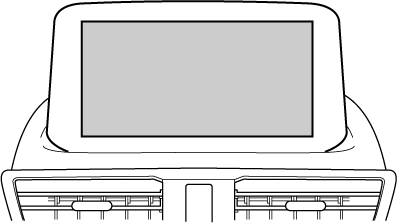

Touch panel operation



Do not press the screen strongly or press it with a sharp-pointed object. Otherwise, the screen could be damaged.

Close Caution
View Caution



For safety reasons, operation of the center display is disabled while the vehicle is being driven. However, items not displayed in gray can be operated using the commander switch while the vehicle is being driven.

Close Note
View Note



Basic Operation Method

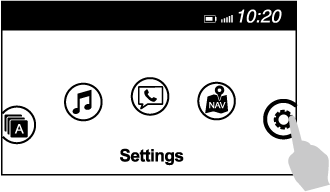

TOUCH & TAP

  1. Touch or tap on the item indicated on the screen.

  2. The operation is launched and the next item is displayed.



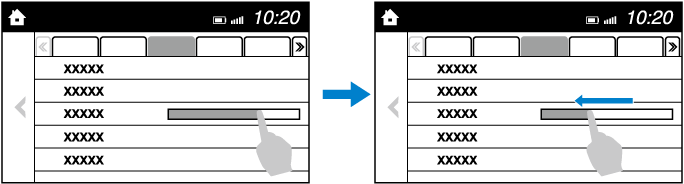

SLIDE (USB audio only)

  1. Touch the setting item displaying a slider bar.

  2. Touch the slider with your finger and move to the desired level.

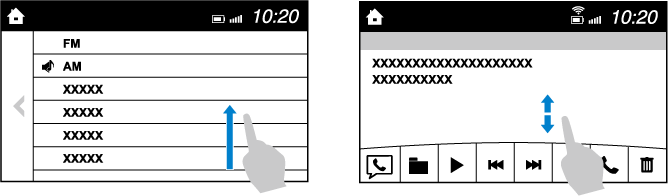

SWIPE

  1. Touch the screen with your finger and move up or down.

  2. Items which were not displayed can be displayed.



Return to previous screen

  1. Touch the .

Displaying the home screen

  1. Touch the .

Home screen

Icon

Function

Applications

Information such as average fuel economy, maintenance, and warnings can be verified.

Depending on the grade and specification, the screen display may differ.

Entertainment

Operates audio such as the radio and CDs. The audio source most recently used is displayed. An audio source which cannot be used at that time is skipped and the previous audio source is displayed.

To change the audio source, select the icon displayed at the bottom of the screen.

Communication

Bluetooth® related functions are available.

Navigation

Navigation screen is displayed (vehicles with navigation system).

If the SD card for the navigation system is not inserted, the compass indicating the direction in which the vehicle is moving is displayed.

The compass may not indicate the correct bearing when the vehicle is stopped or traveling at a slow speed.

Settings

Overall setting menu (Such as display, sound, Bluetooth® and Language).

Depending on the grade and specification, the screen display may differ.

Operating the Satellite Radio (Some Models)

What is satellite radio?

SiriusXM® Satellite Radio

SiriusXM satellite radio is a subscription-based satellite radio service that broadcasts a variety of music, sports, news, weather, traffic and entertainment programming.

Your new Mazda vehicle is factory-installed with SiriusXM satellite radio hardware and includes a limited trial subscription term that begins on the date of sale or lease of your vehicle. See an authorized dealer for availability.

The satellite radio service should be active in your vehicle, if you cannot hear SiriusXM audio, please activate online by visiting siriusxm.com/refresh or by calling SiriusXM Listener Care at 1-877-447-0011 (U.S.A.)/1-888-539-7474 Customer Care (Canada). You can find the radio ID by turning to Channel 0 or visiting siriusxm.com/activationhelp (U.S.A), and siriusxm.ca/subscribe-now/ (Canada).

For more information on extended subscription terms (a service fee is required), the online media player and a list of SiriusXM satellite radio channels, and other features, please visit www.siriusxm.com (U.S.A), and www.siriusxm.ca (Canada), or call SiriusXM at 1-877-447-0011 (U.S.A.)/1-888-539-7474 (Canada).



This feature may not be available in all markets and requires an active subscription. SiriusXM reserves the unrestricted right to change, rearrange, add or delete programming. This includes canceling, moving or adding particular channels, and its prices, at any time, with or without notice to you. Mazda shall not be responsible for any such programming changes.

Close Note
View Note

Displaying the Radio ID (ESN)

When channel 0 is selected, the radio ID is displayed. Use the PREVIOUS or NEXT channel buttons to select channel 0.

SiriusXM operation

Select the icon on the home screen to display the Entertainment screen. When is selected, the following icons are indicated in the bottom part of the center display.

Icon

Function

Displays the Entertainment menu. Use to switch to a different audio source.

Displays the channel list of the current category.

Displays the favorites list. Long-press to store the channel currently being aired.

Refer to Operating the Radio (Search).

Indicates that the parental lock function is in use.

Switching of Lock/Unlock and PIN code setting changes can be performed.

Plays each channel in the current channel list for 5 seconds.

Select again to continue receiving the channel.

Plays the previous channel.

Plays the next channel.

Displays sound settings to adjust audio quality level.

Refer to Volume/Display/Sound Controls (Search).

Selection from channel list

Receivable channels can be displayed on the channel list screen. You can easily select the channel you want to listen from the list. Each category can be also displayed.

  1. Select the icon to display the channel list.

  2. Select a desired channel.

(Select from category list)

  1. Select the icon to display the channel list.

  2. Select to display the category list.

  3. Select a desired category.

Parental lock

If a channel is locked, the channel is muted.

To use the parental lock function, the PIN code must be initialized first.

By using the session lock, the parental lock can be enabled or disabled during the current drive cycle (from when the ignition is switched on to switched off). When the session lock is on, the parental lock is available. When the session lock is off, the parental lock is temporarily cancelled.

When canceling the parental lock or session lock, or when changing the PIN code, PIN code input is required.

PIN code reset

If the registered code has been forgotten, reset the code to the default [0000] code.

  1. Select the icon.

  2. If the selected channel is locked, input the PIN code to cancel the parental lock temporarily.

  3. Select .

  4. Input the default code [0000] using the number buttons.

  5. Select .

  6. Input the new PIN code using the number buttons.

  7. Select .

Operating the Compact Disc (CD) Player (Some Models)

Type

Playable data

Music/MP3/WMA/AAC CD player

  • Music data (CD-DA)

  • MP3/WMA/AAC file



If a disc has both music data (CD-DA) and MP3/WMA/AAC files, playback of the two or three file types differs depending on how the disc was recorded.

Close Note
View Note

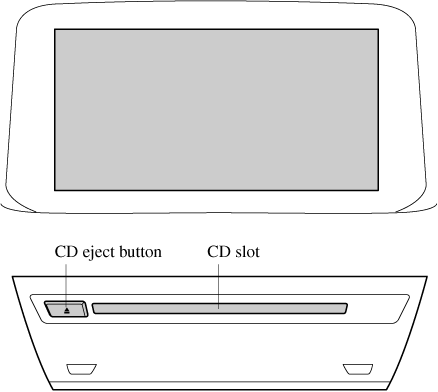

Inserting the CD

Insert the CD into the slot, label-side up. The auto-loading mechanism will set the CD and begin play.



There will be a short lapse before play begins while the player reads the digital signals on the CD.

Close Note
View Note

Ejecting the CD

Press the CD eject button () to eject the CD.

Playback

Select the icon on the home screen with a CD inserted and display the Entertainment screen. When is selected, the following icons are indicated in the lower part of the center display.

Icon

Function

Displays the Entertainment menu. Use to switch to a different audio source.

(Music CD)

Displays the track list of the CD.

Select the track you want to play.

(MP3/WMA/AAC CD)

Displays the top level folder/file list.

Select the folder you want to select.

The files in the selected folder are displayed.

Select the file you want to play.

(MP3/WMA/AAC CDs only)

Displays the file list of the folder currently being played.

Select the song you want to listen to.

(Music CD)

Replays the song currently being played repeatedly.

Select it again to cancel.

(MP3/WMA/AAC CD)

Replays the song currently being played repeatedly.

When selected again, the songs in the folder are played repeatedly.

Select it again to cancel.

(Music CD)

Plays songs on the CD in random order.

Select it again to cancel.

(MP3/WMA/AAC CD)

Plays songs in the folder in random order.

When selected again, the songs on the CD are played in random order.

Select it again to cancel.

(Music CD)

The beginning of each track on a CD is played to aid in searching for a desired track.

When selected again, the operation is canceled and the song currently being played continues.

(MP3/WMA/AAC CD)

The beginning of each track in a folder is played to aid in searching for a desired track.

When selected again, the operation is canceled and the song currently being played continues.



If the audio is operated during scan-play, the track being scan-played is played normally. Then, the audio operation is performed.

If selected within a few seconds of a song which has started to play, the previous song is selected.

If more than a few seconds have elapsed after a song has begun to play, the song currently being played is replayed from the beginning.

Long-press to fast reverse. It stops when you remove your hand from the icon or the commander knob.

Plays a CD. When selected again, playback is temporarily stopped.

Advances to the beginning of the next song.

Long-press to fast forward. It stops when you remove your hand from the icon or the commander knob.

Displays sound settings to adjust audio quality level.

Refer to Volume/Display/Sound Controls (Search).

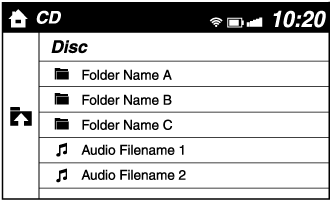

Example of use (When searching for a song from the top level of an MP3/WMA/AAC CD)

  1. Select the icon to display the folder/file list at the top level.



  2. When the folder is selected, folders/file lists in the folder are displayed.

  3. Select the desired song.



  • Select to move to a folder one level higher.

  • The appearance of the repeat and shuffle icons changes depending on the type of operation in which the function is used.

Close Note
View Note
