Owner Maintenance

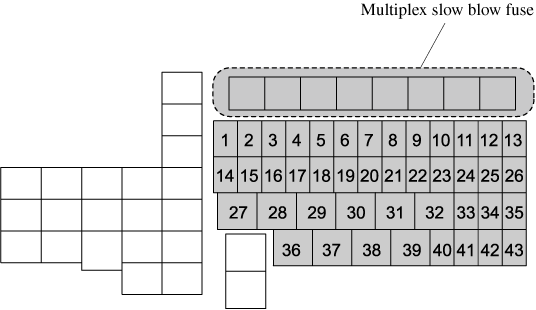

1

FOG

15 A

Fog lights (Some Models)

2

H/L HI

20 A

Headlight high beam^*2

3

H/CLEAN

20 A

―

4

STOP

10 A

Brake lights

5

ROOM

15 A

Overhead light

6

7.5 A

Engine control system

7

FUEL WARM

15 A

―

8

HAZARD

25 A

Hazard warning flashers, Turn signal lights

9

ABS/DSCS

30 A

ABS, Dynamic stability control system

10

METER2

7.5 A

―

11

AUDIO2

7.5 A

Audio system

12

BOSE

25 A

Bose^® Sound System-equipped model (Some Models)

13

AUDIO1

15 A

Audio system

14

FUEL PUMP

15 A

Fuel system

15

HID R DRL

15 A

Headlight (RH)^*1, Daytime running lights (Some Models)

16

AT PUMP

15 A

―

17

HORN

15 A

Horn

18

TAIL

15 A

Taillights, License plate lights, Parking lights, Front side-marker lights

19

ST HEATER

15 A

Heated steering wheel (Some Models)

20

AT

15 A

Transaxle control system

21

R.WIPER

15 A

Rear window wiper (Some Models)

22

A/C

7.5 A

Air conditioner

23

ENGINE3

15 A

Engine control system

24

ENGINE2

15 A

Engine control system

25

ENGINE1

15 A

Engine control system

26

GLOW SIG

5 A

―

27

EVVT

20 A

Engine control system

28

WIPER

20 A

Front window wiper and washer

29

DCDC REG

30 A

―

30

EPB L

FUEL.P2

30 A

Electric parking brake (EPB) (LH) (Some Models)

31

ADD FAN DE

40 A

―

32

P.WINDOW1

30 A

Power windows

33

H/L LOW R

15 A

Headlight low beam (RH)^*2

34

H/L LOW L HID L

15 A

Headlight (LH)^*1, Headlight low beam (LH)^*2

35

METER1

10 A

Instrument cluster

36

IG2

30 A

For protection of various circuits

37

EPB R

LPG

30 A

Electric parking brake (EPB) (RH) (Some Models)

38

FUEL.P3

FAN DE

40 A

―

39

DCDC DE

40 A

―

40

SRS1

7.5 A

Air bag

41

ENGINE. IG1

15 A

Engine control system

42

C/U IG1

15 A

For protection of various circuits

43

METER3

10 A

―

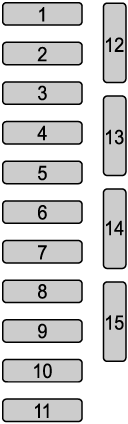

1

P.WINDOW3

P.SEAT D

30 A

Power seat (Some Models)

2

D.LOCK

25 A

Power door locks

3

P.WINDOW2

25 A

Power windows

4

SEAT WARM

20 A

Seat warmer (Some Models)

5

R.OUTLET3

15 A

Accessory sockets

6

SRS2/ESCL

15 A

Air bag

7

SUNROOF

10 A

Moonroof (Some Models)

8

M.DEF

7.5 A

Mirror defogger (Some Models)

9

R.OUTLET1

15 A

―

10

MIRROR

7.5 A

Power control mirror

11

F.OUTLET

15 A

Accessory sockets

12

ABS IG

AT IND

7.5 A

AT shift indicator (Some Models)

13

SRS1

7.5 A

―

14

METER1

10 A

―

15

C/U IG1

15 A

―
