Instrument Cluster and Display

Instrument Cluster (Type A)

Speedometer

The speedometer indicates the speed of the vehicle.

Tachometer

The tachometer shows engine speed in thousands of revolutions per minute (rpm).



Do not run the engine with the tachometer needle in the RED ZONE.

This may cause severe engine damage.



Close Caution
View Caution



When the tachometer needle enters the STRIPED ZONE, this indicates to the driver that the gears should be shifted before entering the RED ZONE.

Close Note
View Note

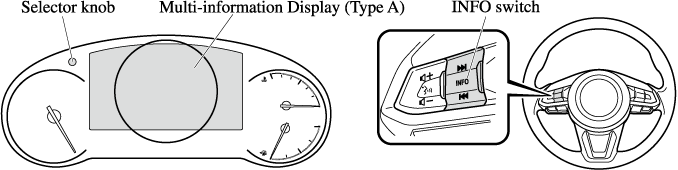

Multi-information Display (Type A)

The multi-information display indicates the following information.

  • Speedometer

  • Odometer

  • Trip meter

  • Outside temperature

  • Distance-to-empty

  • Average fuel economy

  • Current fuel economy

  • Maintenance Monitor

  • Blind Spot Monitoring (BSM) Display

  • Distance Recognition Support System (DRSS) Display

  • Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) System Display

  • Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Display

  • Cruise Control Display

  • Compass Display

  • Door-Ajar/Liftgate-Ajar Warning Indication

  • Warning message

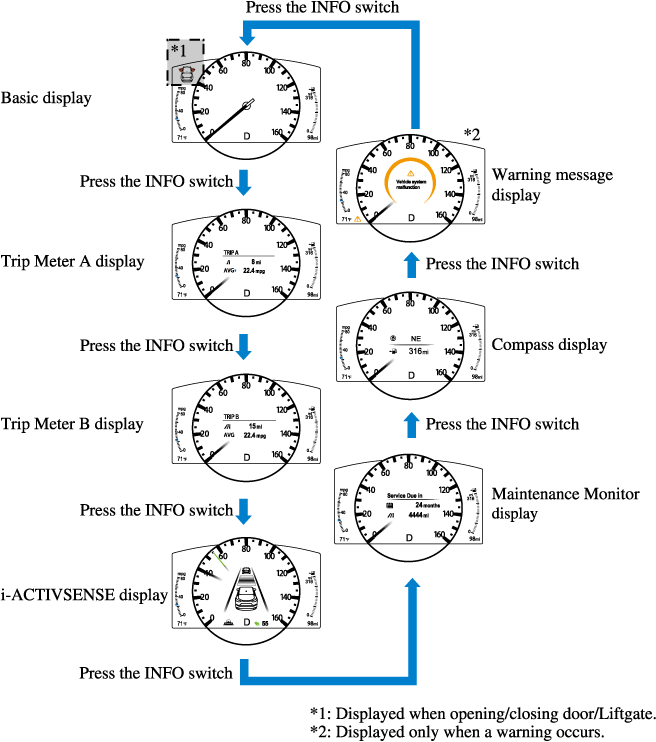

The screen content changes each time the INFO switch is pressed.

The screen content changes each time the selector knob is pressed and held.

Dashboard Illumination

When the lights are turned on with the ignition switched ON, the brightness of the dashboard illumination is dimmed. However, when the light sensor detects that the surrounding area is bright such as when the lights are turned on in the daytime, the dashboard illumination does not dim.



  • When the ignition is switched ON in the early evening or at dusk, the dashboard illumination is dimmed for several seconds until the light sensor detects the brightness of the surrounding area, however, the dimming may cancel after the brightness is detected.

  • When the lights are turned on, the lights-on indicator light in the instrument cluster turns on.

    Refer to Headlights (Search).

Close Note
View Note

The brightness of the instrument cluster and dashboard illuminations can be adjusted by rotating the knob.

  • The brightness decreases by rotating the knob to the left. A beep sound will be heard when the knob has been rotated to the maximum dim position.

  • The brightness increases by rotating the knob to the right.

Function for canceling illumination dimmer

The illumination dimmer can be canceled by rotating the dashboard illumination knob to the right until a beep sound is heard while the instrument cluster is dimmed with the ignition switched ON. If the instrument cluster's visibility is reduced due to glare from surrounding brightness, cancel the illumination dimmer.



  • When the illumination dimmer is canceled, the instrument cluster cannot be dimmed even if the lights are turned on.

  • When the illumination dimmer is canceled, the screen in the center display switches to constant display of the daytime screen.

Close Note
View Note

Average Fuel Economy

The average fuel economy is calculated every minute from the total traveled distance on the trip meter and the total fuel consumption, and the average fuel economy for either TRIP A or TRIP B is displayed.



The average fuel economy and trip meters can be reset by pressing the INFO switch for 1.5 seconds or more while in each mode. After the data is cleared, the fuel consumption is recalculated and the - - - km/L (- - - mpg) for the 1 minute prior to it being displayed is indicated.

Distance Recognition Support System (DRSS) Display (Some Models)

Displays the distance between your vehicle and the vehicle ahead.



Refer to Distance Recognition Support System (DRSS) (Search).
