Climate Control System
Operating Tips
-
Operate the climate control system with the engine running.
-
To prevent the battery from being discharged, do not leave the fan control switch on for a long period of time with the ignition switched ON when the engine is not running.
-
Clear all obstructions such as leaves, snow and ice from the hood and the air inlet in the cowl grille to improve the system efficiency.
-
Use the climate control system to defog the windows and dehumidify the air.
-
The recirculate mode should be used when driving through tunnels or while in a traffic jam, or when you would like to shut off outside air for quick cooling of the interior.
-
Use the outside air position for ventilation or windshield defrosting.
-
If the vehicle has been parked in direct sunlight during hot weather, open the windows to let warm air escape, then run the climate control system.
-
Run the air conditioner about 10 minutes at least once a month to keep internal parts lubricated.
-
Have the air conditioner checked before the weather gets hot. Lack of refrigerant may make the air conditioner less efficient.

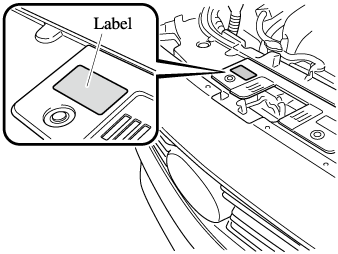

The refrigerant specifications are indicated on a label attached to the inside of the engine compartment. If the wrong type of refrigerant is used, it could result in a serious malfunction of the air conditioner. Consult a professional, government certified repairer for the inspection or repair because a special device is required for the air conditioner maintenance.
For details, consult an Authorized Mazda Dealer.
Vent Operation (Front)
Selecting the Airflow Mode
The location airflow exits the air vents and the airflow amount may change depending on the open or close status of the air vents.
Front Air Conditioner
Climate control system information is displayed on the display.
Control Switches
AUTO switch
By pressing the AUTO switch the following functions will be automatically controlled in accordance with the selected set temperature:
-
Airflow temperature
-
Amount of airflow
-
Selection of airflow mode
-
Outside/Recirculated air selection
-
Air conditioner operation
AUTO switch indicator light
-
When on, it indicates auto operation, and the system will function automatically.
-
If any of the following switches are operated while in auto control, the AUTO switch indicator turns off.
-
Mode selector switch
-
Fan control switch
-
Windshield defroster switch
The functions for switches other than those operated continue to operate in auto control.
-
Power switch (Fan On/Off)
The climate control system turns on or off by pressing the power switch.
Temperature control dial
This dial controls temperature. Turn it clockwise for hot and counterclockwise for cold.
-
When the SYNC switch is on:
Turn the driver temperature control dial to control the temperature throughout the entire cabin.
-
When the SYNC switch is off:
Turn the driver or front passenger temperature control dial to independently control the temperature on each side of the cabin.
-
The climate control system changes to the individual operation mode (SYNC switch indicator light turns off) by turning the front passenger temperature control dial even when the SYNC switch is on, which allows individual control of the set temperature for the driver and front passenger.
-
When the temperature control dial is set to the maximum or minimum, “Hi” or “Lo” is indicated on the display.
-
The temperature units for the temperature setting display can be changed in conjunction with the temperature units for the outside temperature display.
(Instrument cluster Type A)
Refer to Outside Temperature Display (Search).
(Instrument cluster Type B)
Refer to Outside Temperature Display (Search).
(Instrument cluster Type C)
Refer to Outside Temperature Display (Search).
Fan control switch
The fan has 7 speeds. The selected speed will be displayed.
Mode selector switch
The desired airflow mode can be selected (Search).
-
With the airflow mode set to the
position and the temperature control dial set at a medium temperature, heated air is directed to the feet and air at a comparably lower temperature will flow through the central, left and right vents. -
To set the air vent to
, press the windshield defroster switch. -
In the
or position, the air conditioner is automatically turned on and the outside air position is automatically selected to defrost the windshield. In the or position, the outside air position cannot be changed to the recirculated air position.
A/C switch
Pressing the A/C switch while the AUTO switch is turned on will turn off the air conditioner (cooling/dehumidifying functions).
The on/off of the air conditioner switches each time the A/C switch is pressed.
-
The air conditioner operates when the A/C switch is pressed while the air conditioner is turned off.
-
The air conditioner may not function when the outside temperature approaches 0 °C (32 °F).
Air intake selector
Outside or recirculated air positions can be selected. Press the switch to select outside/recirculated air positions.
Recirculated air position (indicator light turns on)
Outside air is shut off. Use this position when going through tunnels, driving in congested traffic (high engine exhaust areas) or when quick cooling is desired.
Outside air position (indicator light turns off)
Outside air is allowed to enter the cabin. Use this mode for ventilation or windshield defrosting.
Do not recirculate the air in the cabin during cold or rainy weather:
Recirculating the air in the cabin during cold and rainy weather is dangerous as it will cause the windows to fog up. Your vision will be hampered, which could lead to a serious accident.
SYNC (Synchronized Temperature) switch
Use the SYNC switch to change the mode between the individual operation (driver and passenger) and interconnection (simultaneous) modes.
Interconnection mode (indicator light turns on)
The set temperature for the driver and front passenger is controlled simultaneously.
Individual operation mode (indicator light turns off)
The set temperature can be controlled individually for the driver and front passenger.
Windshield defroster switch
Press the switch to defrost the windshield and front door windows.
Refer to Windshield Defrosting and Defogging (Search).
Rear window defogger switch
Press the rear window defogger switch to defrost the rear window.
Refer to Rear Window Defogger (Search).
Operation of Automatic Air Conditioner
-
Press the AUTO switch. Selection of the airflow mode, air intake selector and amount of airflow will be automatically controlled.
-
Use the temperature control dial to select a desired temperature.
Turn the front passenger temperature control dial to control the set temperature individually for the driver and front passenger.
To turn off the system, press the power switch.
-
Setting the temperature to maximum hot or cold will not provide the desired temperature at a faster rate.
-
When selecting heat, the system will restrict airflow until it has warmed to prevent cold air from blowing out of the vents.
Rear Air Conditioner
Climate control system information is displayed on the display.
Operation of Automatic Air Conditioner
Operation from front seats
-
Turn the front air conditioner on.
-
Press the rear switch. The rear air conditioner operates.
-
Selection of the airflow mode, airflow amount and temperature will be automatically controlled to the same temperature setting as the front air conditioner for the driver's side.
-
If the AUTO switch is pressed while the front A/C switch is off, the rear air conditioner operates only to circulate air.
-
Setting the temperature to the maximum high or low will not provide the desired temperature at a faster rate.
-
When selecting heat, the system will restrict airflow until it has warmed to prevent cold air from blowing out of the vents.
-
When the rear air conditioner is controlled to the same temperature setting as the front air conditioner for the driver's side, “SYNC” is displayed on the rear screen.
-
When operating the fan switch of the front air conditioner while the rear air conditioner is operating automatically, the airflow amount of the rear air conditioner may change.
-
Operation from rear seats
-
Turn the front air conditioner on.
-
Press the AUTO switch. The selection of the airflow mode and airflow amount will be automatically controlled.
-
Use the temperature control switch to set the desired temperature.
-
If the AUTO switch is pressed while the front A/C switch is off, the rear air conditioner operates only to circulate air.
-
Setting the temperature to the maximum high or low will not provide the desired temperature at a faster rate.
-
When selecting heat, the system will restrict airflow until it has warmed to prevent cold air from blowing out of the vents.
-
When the rear air conditioner is operated automatically, “AUTO” is displayed on the rear screen.
-
When the rear air conditioner is controlled to the same temperature setting as the front air conditioner for the driver's side, “SYNC” is displayed on the rear screen.
-
To turn off the system, press the Power switch.
