Climate Control System
Rear Air Conditioner
Climate control system information is displayed on the display.

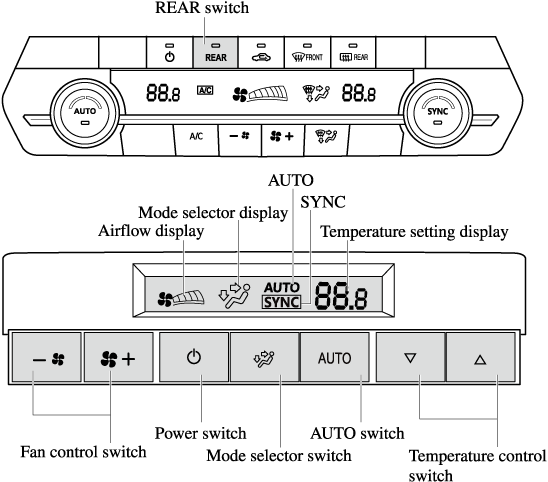

Control Switches
Rear switch
Press the rear switch to operate the rear air conditioner.
The indicator illuminates to indicate that the rear air conditioner is operating.
AUTO switch
By pressing the AUTO switch the following functions will be automatically controlled in accordance with the set temperature:
-
Airflow temperature
-
Amount of airflow
-
Selection of airflow mode
Power switch
The rear climate control system turns on or off by pressing the power switch.
Temperature control switch
This switch controls temperature. Press
for hot and
for cold.
When the temperature control switch is set to the maximum or minimum, “Hi” or “Lo” is indicated on the display.
Fan control switch
The fan has five speeds. The selected speed will be displayed.
Mode selector switch
The desired airflow mode can be selected. Refer to Selecting the Airflow Mode (Search).
