Interior Equipment
Interior Lights
-
Do not leave the lights on for long periods while the engine is turned off. Otherwise the battery power could be depleted.
Overhead Lights
Type A
|
Switch |
Overhead Lights |
|---|---|
|
|
The DOOR OFF switch can be switched between the DOOR position and DOOR OFF position. DOOR position
DOOR OFF position
|
|
|
Press the switch to turn it on. Press the switch again to turn off the lights. |
(DOOR OFF)Front
Center
Rear
Type B
|
Switch Position |
Overhead Lights |
|---|---|
 |
Light off |
 |
|
 |
Light on |
Front
Center
Rear
The rear overhead light and the center map lights also turn on and off when the front overhead light switch is operated.
Front Map Lights
Type A
Press the switch to illuminate the front map lights, and then press the switch again to turn them off.
The front map lights will not turn off even if the switch is pressed in the following cases:
-
The overhead lights turn on by operating the overhead ON/OFF switch (
). -
The overhead lights turn on in conjunction with a door opening/closing.
-
The illuminated entry system is on.
Type B
When the overhead light switch is in the door or off position, press the lens to illuminate the front map lights, and then press the lens again to turn them off.
The front map lights will not turn off even if the lens is pressed in the following cases:
-
The overhead light switch is in the ON position.
-
The overhead light switch is in the door position with the door open.
-
The illuminated entry system is on.
Center Map Lights
Type A
Press the switch to illuminate the center map lights, and then press the switch again to turn them off.
-
Once the center map lights have been turned off, they will turn on and off in conjunction with the overhead light operation.
-
The center map lights will not turn off even if the switch is pressed in the following cases:
-
The overhead lights turn on by operating the overhead ON/OFF switch (
). -
The overhead lights turn on in conjunction with a door opening/closing.
-
The illuminated entry system is on.
-
Type B
When the overhead light switch is in the door or off position, press the lens to illuminate a center map light, and then press the lens again to turn it off.
-
Once the center map lights have been turned off, they will turn on and off depending on the position to which the overhead light is switched.
-
The center map lights will not turn off even if the lens is pressed in the following cases:
-
The overhead light switch is ON.
-
The overhead light switch is in the door position with the door open.
-
The illuminated entry system is on.
-

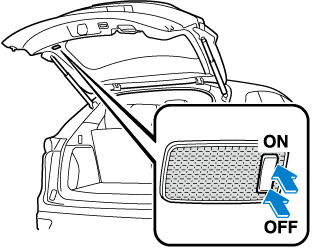

Luggage Compartment Lights
|
Switch Position |
Luggage Compartment Light |
|---|---|
|
Light off |
|
Light on when the liftgate is open |

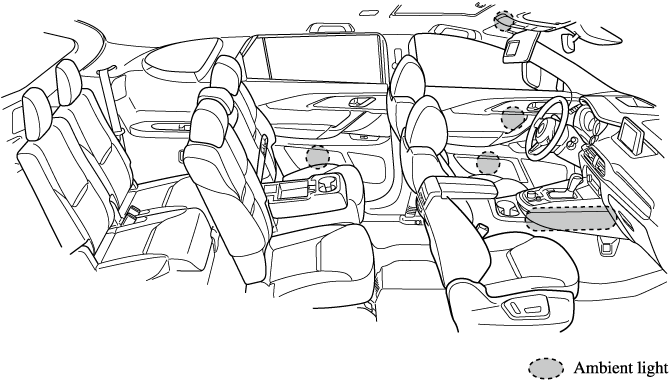

Ambient Light (Some Models)
The ambient lights continuously turn on when the ignition is switched ON.
The ambient lights dim when the parking lights or headlights are turned on.
-
The ambient lights turn on or off in conjunction with the illuminated entry system when the ignition is switched OFF.
-
The ambient light illumination level can be changed while the parking lights or headlights are turned on.
Refer to Personalization Features (Search).
Center Console
To open, push the button.
Sunshade (Rear Door Window) (Some Models)
The sunshades are equipped to the windows on both sides of the second-row seats.
Hold the tab and pull the sunshade upward and hook the slots.
To return the sunshade to its original position, unhook the sunshade and retract it slowly.
-
Securely hook the sunshade. Otherwise, the sunshade may retract suddenly resulting in injury such as fingers get pinched.
-
Use the sunshades only when the windows are fully closed. Using a sunshade while a window is open could cause is to unhook and flap around inside the cabin where it can hit someone sitting near the window, resulting in injury.
