Interior Equipment
Side Extension Sunvisors (Some Models)
The visor extender extends the sunvisor's range of sun shading.
To use, pull it out.
When moving the sunvisor, retract the visor extender to its original position. Otherwise, the visor extender could hit the rearview mirror.
Accessory Sockets
Only use genuine Mazda accessories or the equivalent requiring no greater than 120 W (DC 12 V, 10 A).

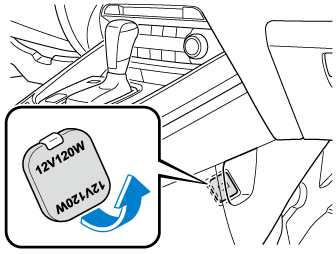

Front
The ignition must be switched to ACC or ON.

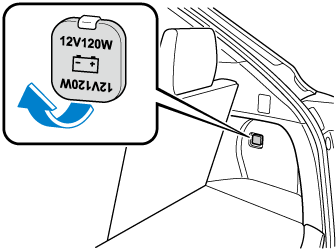

Rear
The accessory sockets can be used regardless of whether the ignition is on or off.
-
To prevent accessory socket damage or electrical failure, pay attention to the following:
-
Do not use accessories that require more than 120 W (DC 12 V, 10 A).
-
Do not use accessories that are not genuine Mazda accessories or the equivalent.
-
Close the cover when the accessory socket is not in use to prevent foreign objects and liquids from getting into the accessory socket.
-
Correctly insert the plug into the accessory socket.
-
Do not insert the cigarette lighter into the accessory socket.
-
-
Noise may occur on the audio playback depending on the device connected to the accessory socket.
-
Depending on the device connected to the accessory socket, the vehicle's electrical system may be affected, which could cause the warning light to illuminate. Disconnect the connected device and make sure that the problem is resolved. If the problem is resolved, disconnect the device from the socket and switch the ignition off. If the problem is not resolved, consult an Authorized Mazda Dealer.
To prevent discharging of the battery, do not use the socket for long periods with the engine off or idling.
USB Power Outlet (Some Models)
The USB power outlets can be used regardless of whether the ignition is switched to ACC or ON.
Only use USB devices that have a maximum power consumption of 10.5W (DC5V, 2.1A) or below.
-
To prevent USB power outlets damage or electrical failure, pay attention to the following:
-
Do not use USB devices that require more than 10.5 W (DC 5 V, 2.1 A).
-
Close the lid when the USB power outlets are not in use to prevent foreign objects and liquids from getting into the USB power outlets.
-
Correctly connect the USB connector into the USB power outlets.
-
-
The USB power outlets are designed only for charging and they cannot be used for connecting to the vehicle's audio system.
-
To prevent discharging of the battery, do not use the USB power outlets for long periods with the engine off or idling.
How to connect
The groove in the armrest box can be used to pass the cord of the device into the box to connect it to the USB power outlets.
-
Open the lid.
-
Route the cord through the groove in the armrest box and insert the USB connector into the USB power outlets.
Cup Holder
Never use a cup holder to hold hot liquids while the vehicle is moving:
Using a cup holder to hold hot liquids while the vehicle is moving is dangerous. If the contents spill, you could be scalded.
Do not put anything other than cups or drink cans in cup holders:
Putting objects other than cups or drink cans in a cup holder is dangerous.
During sudden braking or maneuvering, occupants could be hit and injured, or objects could be thrown around the vehicle, causing interference with the driver and the possibility of an accident. Only use a cup holder for cups or drink cans.
