Owner Maintenance

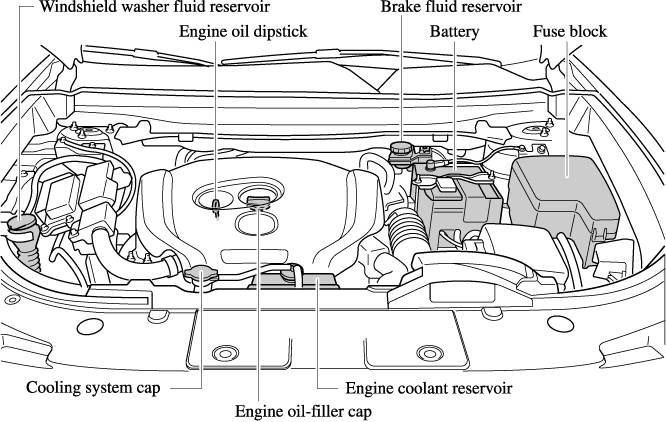

Engine Compartment Overview

Engine Compartment Overview

Engine Oil

Inspecting Engine Oil Level

  1. Be sure the vehicle is on a level surface.

  2. Warm up the engine to normal operating temperature.

  3. Turn it off and wait at least 5 minutes for the oil to return to the oil pan.

  4. Pull out the dipstick, wipe it clean, and reinsert it fully.



  5. Pull it out again and examine the level.

    The level is normal if it is between the MIN and MAX marks.

    If it is near or below MIN, add enough oil to bring the level to MAX.



    Do not overfill the engine oil. This may cause engine damage.

    Close Caution
    View Caution

  6. Make sure the O-ring on the dipstick is positioned properly before reinserting the dipstick.

  7. Reinsert the dipstick fully.

Brake Fluid

Inspecting Brake Fluid Level



If the brake fluid level is low, have the brakes inspected:

A low brake fluid level is dangerous.

A low level could indicate brake lining wear or a brake system leak which could cause the brakes to fail and lead to an accident.

Close Warning
View Warning

Inspect the fluid level in the reservoir regularly. It should be kept between the MAX and MIN lines.

The level normally drops with accumulated distance, a condition associated with wear of brake linings. If it is excessively low, have the brake system inspected by an Authorized Mazda Dealer.

Key Battery Replacement

Key Battery Replacement

If the buttons on the transmitter are inoperable and the operation indicator light does not flash, the battery may be dead.

Replace with a new battery before the transmitter becomes unusable.



  • Make sure the battery is installed correctly. Battery leakage could occur if it is not installed correctly.

  • When replacing the battery, be careful not to touch any of the internal circuitry and electrical terminals, bend the electrical terminals, or get dirt in the transmitter as the transmitter could be damaged.

  • There is the danger of explosion if the battery is not correctly replaced.

  • Dispose of used batteries according to the following instructions.

    • Insulate the plus and minus terminals of the battery using cellophane or equivalent tape.

    • Never disassemble.

    • Never throw the battery into fire or water.

    • Never deform or crush.

  • Replace only with the same type battery (CR2025 or equivalent).

Close Caution
View Caution

The following conditions indicate that the battery power is low:

  • The KEY indicator light (green) flashes in the instrument cluster for about 30 seconds after the engine is switched OFF (for vehicles with a type A/type B instrument cluster ((Search), (Search)), messages are displayed in the instrument cluster).

  • The system does not operate and the operation indicator light on the transmitter does not flash when the buttons are pressed.

  • The system's operational range is reduced.

Replacing the battery at an Authorized Mazda Dealer is recommended to prevent damage to the key. If replacing the battery by yourself, follow the instruction.

Replacing the key battery

  1. Press the knob and pull out the auxiliary key.

  2. Twist a tape-wrapped flathead screwdriver in the direction of the arrow and open the cover slightly.

  3. Insert the tape-wrapped flathead screwdriver into the gap and slide it in the direction of the arrow.

  4. Twist the flathead screwdriver in the direction of the arrow and remove the cover.

  5. Remove the battery cap, then remove the battery.



    • Be careful not to allow the rubber ring shown in the figure to be scratched or damaged.

    • If the rubber ring detaches, reattach it before inserting a new battery.

    Close Caution
    View Caution

  6. Insert a new battery with the positive pole facing up, and then cover the battery with the battery cap.

  7. Close the cover.

  8. Reinsert the auxiliary key.

Tires

Temporary Spare Tire

Inspect the temporary spare tire at least monthly to make sure it is properly inflated and stored.



The temporary spare tire condition gradually deteriorates even if it has not been used.

Close Note
View Note

The temporary spare tire is easier to handle because of its construction which is lighter and smaller than a conventional tire. This tire should be used only for an emergency and only for a short distance.



Use the temporary spare tire only until the conventional tire is repaired, which should be as soon as possible.

Refer to Tires (Search).





  • Do not use your temporary spare tire rim with a snow tire or a conventional tire. Neither will properly fit and could damage both tire and rim.

  • The temporary spare tire has a tread life of less than 5,000 km (3,000 miles). The tread life may be shorter depending on driving conditions.

  • The temporary spare tire is for limited use, however, if the tread wear solid-band indicator appears, replace the tire with the same type of temporary spare (Search).

Close Caution
View Caution



Tires degrade over time, even when they are not being used on the road. It is recommended that tires generally be replaced when they are 6 years or older. Heat caused by hot climates or frequent high loading conditions can accelerate the aging process. You should replace the spare tire when you replace the other road tires due to the aging of the spare tire. The period in which the tire was manufactured (both week and year) is indicated by a 4-digit number.

Refer to Tire Labeling (Search).

Close Note
View Note
Fuses

Fuses

Your vehicle's electrical system is protected by fuses.



If any lights, accessories, or controls do not work, inspect the appropriate circuit protector. If a fuse has blown, the inside element will be melted.



If the same fuse blows again, avoid using that system and consult an Authorized Mazda Dealer as soon as possible.

Fuse Replacement

Replacing the fuses on the vehicle's left side

If the electrical system does not work, first inspect the fuses on the vehicle's left side.



  1. Make sure the ignition is switched off, and other switches are off.

  2. Open the fuse panel cover.

  3. Pull the fuse straight out with the fuse puller provided on the fuse block located in the engine compartment.

  4. Inspect the fuse and replace it if it is blown.

  5. Insert a new fuse of the same amperage rating, and make sure it fits tightly. If it does not fit tightly, have an expert install it. We recommend an Authorized Mazda Dealer.

    If you have no spare fuses, borrow one of the same rating from a circuit not essential to vehicle operation, such as the AUDIO or OUTLET circuit.



    Always replace a fuse with a genuine Mazda fuse or equivalent of the same rating. Otherwise you may damage the electric system.

    Close Caution
    View Caution

  6. Reinstall the cover and make sure that it is securely installed.

Replacing the fuses under the hood

If the headlights or other electrical components do not work and the fuses in the cabin are normal, inspect the fuse block under the hood.

If a fuse is blown, it must be replaced. Follow these steps:



  1. Make sure the ignition is switched off, and other switches are off.

  2. Remove the fuse block cover.

  3. If any fuse but the MAIN fuse is blown, replace it with a new one of the same amperage rating.



    Do not replace the main fuse by yourself. Have an Authorized Mazda Dealer perform the replacement:

    Replacing the fuse by yourself is dangerous because the MAIN fuse is a high current fuse. Incorrect replacement could cause an electrical shock or a short circuit resulting in a fire.

    Close Warning
    View Warning

  4. Reinstall the cover and make sure that it is securely installed.
