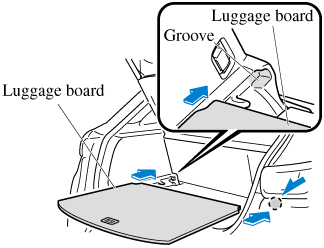

When using the luggage board in the upper level
Make sure the luggage board is securely inserted into the grooves. Otherwise, the luggage board may detach while the vehicle is being driven or during sudden braking resulting in injury or damage to the luggage board.
Insert the luggage board into the left and right grooves.
When using the luggage board in the lower level
By placing the luggage board on top of the luggage mat, more space is available for placing taller items.
-
Lift up the luggage board and pull it outward.
-
Place the luggage board on top of the luggage mat.
When using the luggage board on the lower level, make sure that it is placed horizontally.
The front part of the luggage board folds up on vehicles equipped with the sub-woofer.
The luggage board can be placed horizontally by sliding it towards the vehicle front until the front part of the luggage board folds up.
