Instrument Cluster and Display

Instrument Cluster (Type A)

Odometer, Trip Meter and Trip Meter Selector

The odometer is constantly displayed on the screen when the ignition is switched ON, and the TRIP A or TRIP B screen can be displayed by operating the INFO switch.



Odometer

The odometer records the total distance the vehicle has been driven.

Trip meter

The driving distance for a specified interval is indicated. Two types (TRIP A, TRIP B) of interval distance and the average fuel economy for each can be measured.



For instance, trip meter A can record the distance from the point of origin, and trip meter B can record the distance from where the fuel tank is filled.



When trip meter A is selected, TRIP A will be displayed. When trip meter B is selected, TRIP B will be displayed.



The trip meter and average fuel economy can be reset by pressing the INFO switch for 1.5 seconds or more while in each mode.



  • Only the trip meters record tenths of kilometers (miles).

  • The trip record will be erased when:

    • The power supply is interrupted (blown fuse or the battery is disconnected).

    • The vehicle is driven over 9999.9 km (mile).

Close Note
View Note

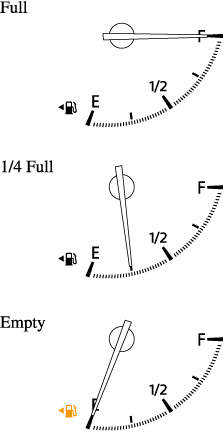

Fuel Gauge

The fuel gauge shows approximately how much fuel is remaining in the tank when the ignition is switched ON. We recommend keeping the tank over 1/4 full.



If the low fuel warning light illuminates or the fuel level is very low, refuel as soon as possible.

If inconsistency in engine performance or stalling occurs due to low fuel level conditions, refuel the vehicle as soon as possible and add at least 10 L (2.7 US gal, 2.2 Imp gal) of fuel.

Refer to Taking Action (Search).



  • After refueling, it may require some time for the indicator to stabilize. In addition, the indicator may deviate while driving on a slope or curve since the fuel moves in the tank.

  • The direction of the arrow () indicates that the fuel-filler lid is on the left side of the vehicle.

Close Note
View Note

Speed Unit Selector

In some countries, you may have to change the speed units between km/h and mph.

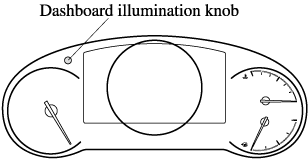

When pressing the dashboard illumination knob, the speed units in the instrument cluster will change.



Average Fuel Economy

The average fuel economy is calculated every minute from the total traveled distance on the trip meter and the total fuel consumption, and the average fuel economy for either TRIP A or TRIP B is displayed.



The average fuel economy and trip meters can be reset by pressing the INFO switch for 1.5 seconds or more while in each mode. After the data is cleared, the fuel consumption is recalculated and the - - - km/L (- - - mpg) for the 1 minute prior to it being displayed is indicated.

Current Fuel Economy

This displays the current fuel economy by calculating the amount of fuel consumption and the distance traveled.





  • Indicates the 0 position when the vehicle speed is about 5 km/h (3 mph) or slower.

  • The red arrow on the scale indicates the average fuel economy.

Close Note
View Note
