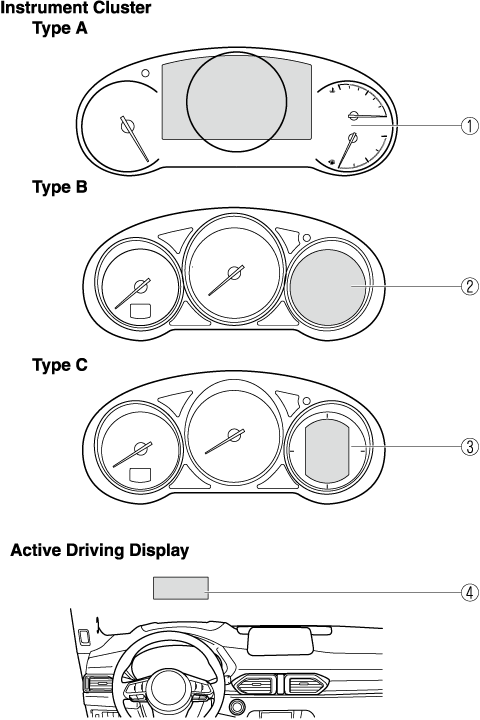

Instrument Cluster and Display

Instrument Cluster (Type A)

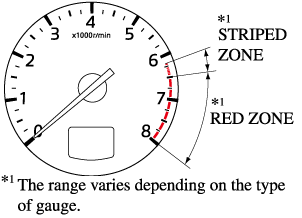

Tachometer

The tachometer shows engine speed in thousands of revolutions per minute (rpm).

Do not run the engine with the tachometer needle in the RED ZONE.

This may cause severe engine damage.

Close Caution

View Caution

When the tachometer needle enters the STRIPED ZONE, this indicates to the driver that the gears should be shifted before entering the RED ZONE.

Close Note

View Note

Instrument Cluster (Type B)

Tachometer

The tachometer shows engine speed in thousands of revolutions per minute (rpm).

Do not run the engine with the tachometer needle in the RED ZONE.

This may cause severe engine damage.

Close Caution

View Caution

When the tachometer needle enters the STRIPED ZONE, this indicates to the driver that the gears should be shifted before entering the RED ZONE.

Close Note

View Note

Fuel Gauge

The fuel gauge shows approximately how much fuel is remaining in the tank when the ignition is switched ON. We recommend keeping the tank over 1/4 full.

If the fuel level is low, () and () turn an amber color. Refuel as soon as possible.

If inconsistency in engine performance or stalling occurs due to low fuel level conditions, refuel the vehicle as soon as possible and add at least 10 L (2.7 US gal, 2.2 Imp gal) of fuel.

Refer to Taking Action (Search).

After refueling, it may require some time for the indicator to stabilize. In addition, the indicator may deviate while driving on a slope or curve since the fuel moves in the tank.
The direction of the arrow () indicates that the fuel-filler lid is on the left side of the vehicle.

Close Note

View Note

Dashboard Illumination

When the lights are turned on with the ignition switched ON, the brightness of the dashboard illumination is dimmed. However, when the light sensor detects that the surrounding area is bright such as when the lights are turned on in the daytime, the dashboard illumination does not dim.

When the ignition is switched ON in the early evening or at dusk, the dashboard illumination is dimmed for several seconds until the light sensor detects the brightness of the surrounding area, however, the dimming may cancel after the brightness is detected.
When the lights are turned on, the lights-on indicator light in the instrument cluster turns on.

Refer to Headlights (Search).

Close Note

View Note

The brightness of the instrument cluster and dashboard illuminations can be adjusted by rotating the knob.

The brightness decreases by rotating the knob to the left. A beep sound will be heard when the knob has been rotated to the maximum dim position.
The brightness increases by rotating the knob to the right.

Function for canceling illumination dimmer

The illumination dimmer can be canceled by rotating the dashboard illumination knob to the right until a beep sound is heard while the instrument cluster is dimmed with the ignition switched ON. If the instrument cluster's visibility is reduced due to glare from surrounding brightness, cancel the illumination dimmer.

The illumination dimmer can be canceled by pressing the dashboard illumination knob.
When the illumination dimmer is canceled, the instrument cluster cannot be dimmed even if the lights are turned on.
When the illumination dimmer is canceled, the screen in the center display switches to constant display of the daytime screen.

Close Note

View Note

Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Display (Some Models)

Displays the system status.

Refer to Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) (Search).

Cruise Control Set Vehicle Speed Display (Some Models)

The vehicle speed preset using the cruise control is displayed.

Refer to Cruise Control (Search).

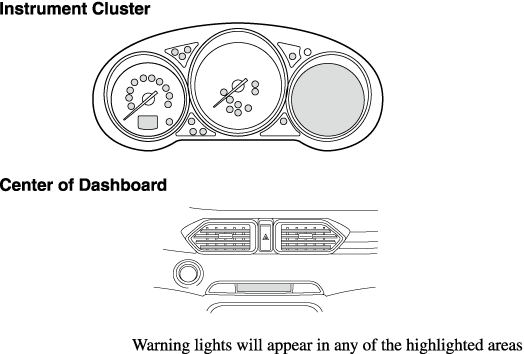

Warning/Indicator Lights

Instrument Cluster varies depending on model and specifications.

Indication/Indicator Lights

These lights turn on or flash to notify the user of the system operation status or a system malfunction.

Signal	Indicator	Page
(Green)	Seat Belt Indicator Light (Rear seat)	(Search)
	Front Passenger Air Bag Deactivation Indicator Light^*1 (Some Models)	(Search)
	Security Indicator Light^*1	(Search)
	Wrench Indication	(Search)
(Blue)	Low Engine Coolant Temperature Indicator Light	(Search)
	Glow Indicator Light^*1 (Some Models)	(Search)
	Diesel Particulate Filter Indication (Some Models)	(Search)
	Shift Position Indication	(Search)
	Lights-On Indication/Indicator Light	(Search)
	Headlight High-Beam Indicator Light	Headlight High-Low Beam (Search)
	Headlight High-Beam Indicator Light	Flashing the Headlights (Search)
	Turn Signal/Hazard Warning Indicator Lights	Turn and Lane-Change Signals (Search)
	Turn Signal/Hazard Warning Indicator Lights	Hazard Warning Flasher (Search)
	AUTOHOLD Active Indicator Light^*1	(Search)
	Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) indicator Light (Some Models)	(Search)
	TCS/DSC Indicator Light^*1	Traction Control System (TCS) (Search)
		Dynamic Stability Control (DSC) (Search)
		Turns on (Search)
	TCS OFF Indicator Light^*1 (Some Models)	(Search)
	Off-Road Traction Assist Indicator Light^*1 (Some Models)	(Search)
	Select Mode Indication	(Search)
(Green)	High Beam Control System (HBC) Indicator Light	(Search)
	Blind Spot Monitoring (BSM) OFF Indicator Light^*1	Malfunction (Search)
	Blind Spot Monitoring (BSM) OFF Indicator Light^*1	Except malfunction (Search)
(White)	Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Main Indication (Some Models)	(Search)
(Green)	Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Set Indication (Some Models)	(Search)
	Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Indication (Some Models)	(Search)
	Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) OFF Indicator Light^*1 (Some Models)	(Search)
	Smart City Brake Support (SCBS) Indication (Some Models)	Advanced Smart City Brake Support (Advanced SCBS) (Search)
	Smart City Brake Support (SCBS) Indication (Some Models)	Smart City Brake Support (SCBS) (Search)
	Smart Brake Support/Smart City Brake Support (SBS/SCBS) OFF Indicator Light^*1 (Some Models)	Advanced Smart City Brake Support (Advanced SCBS) (Search)
		Smart City Brake Support (SCBS) (Search)
		Smart Brake Support (SBS) System (Search)
(White)	Cruise Main Indication (Some Models)	(Search)
(Green)	Cruise Set Indication (Some Models)	(Search)

The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an Authorized Mazda Dealer.

Instrument Cluster (Type C)

Active Driving Display (Some Models)
