Instrument Cluster and Display
Tachometer
The tachometer shows engine speed in thousands of revolutions per minute (rpm).
Do not run the engine with the tachometer needle in the RED ZONE.
This may cause severe engine damage.
When the tachometer needle enters the STRIPED ZONE, this indicates to the driver that the gears should be shifted before entering the RED ZONE.
Engine Coolant Temperature Gauge
Displays the engine coolant temperature. The blue range of the gauge indicates that the engine coolant temperature is low, and the red range of the gauge indicates that the engine coolant temperature is high and overheating.
If the engine coolant temperature gauge needle is in the red range, there is the possibility of overheating. Drive slowly to reduce engine load until you can find a safe place to stop the vehicle and wait for the engine to cool down.
Refer to Overheating (Search).
-
(SKYACTIV-G 2.5T, SKYACTIV-D 2.2)
If the engine coolant temperature is high or the engine is hot, the engine output may be limited.
Speed Unit Selector
In some countries, you may have to change the speed units between km/h and mph.
When pressing the dashboard illumination knob, the speed units in the instrument cluster will change.
Blind Spot Monitoring (BSM) Display
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Display
Displays the system status.
Refer to Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) (Search).
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Display (Some Models)
Displays the currently set system status.
Refer to Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) (Search).
Compass Display
The direction the vehicle is moving is displayed in one of eight directions while the vehicle is being driven.
|
Display |
Direction |
|---|---|
|
N |
North |
|
S |
South |
|
E |
East |
|
W |
West |
|
NE |
Northeast |
|
NW |
Northwest |
|
SE |
Southeast |
|
SW |
Southwest |
Message Display
A message such as the system operation status, a malfunction, or an abnormality is indicated.
Warning/indicator light in instrument cluster turns on/flashes or symbol is indicated on display at same time as message
Check the information regarding the warning/indicator light or indicated symbol.
Refer to If a Warning Indication/Warning Lights (Search).
Refer to If a Indication/Indicator Lights (Search).
Message only is indicated on display
Follow the instructions indicated on the display. For the display content, refer to the next page.
Refer to If a Message Indicated on Multi-information Display (Search).
Warning Indication/Warning Lights
These lights turn on or flash to notify the user of the system operation status or a system malfunction.
|
Signal |
Warning |
Page |
|---|---|---|
 |
Brake System Warning Indication/Warning Light*1*2 |
(Search) |
 |
ABS Warning Light*1 |
Electronic Brake Force Distribution System Warning (Search) |
|
ABS warning (Search) |
||
 |
Charging System Warning Indication/Warning Light*1 |
(Search) |
 |
Engine Oil Warning Light*1 |
(Search) |
 |
High Engine Coolant Temperature Warning Indication |
(Search) |
 |
Power Steering Malfunction Indication |
(Search) |
 |
Master Warning Indication/Warning Light |
(Search) |
 |
Electric Parking Brake (EPB) Warning Indication/Warning Light*1 |
(Search) |
 |
Check Engine Light*1 |
(Search) |
 |
Selective Catalytic Reduction (SCR) system Warning Indication/Warning Light*1 (Some Models) |
(Search) |
 |
Automatic Transaxle Warning Indication |
(Search) |
 |
AWD Warning Indication (Some Models) |
(Search) |
 |
Air Bag/Front Seat Belt Pretensioner System Warning Light*1 |
(Search) |
 |
Tire Pressure Monitoring System Warning Light*1 |
Flashing (Search) |
|
Turns on (Search) |
||
 (Amber/White) |
KEY Warning Indication |
Amber (Search) |
|
White (Search) |
||
 (Amber) |
High Beam Control System (HBC) Warning Indication/Warning Light*1 |
(Search) |
 |
Blind Spot Monitoring (BSM) Warning Indication |
(Search) |
 (Amber) |
Driver Attention Alert (DAA) Warning Indication (Some Models) |
(Search) |
 (Amber) |
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Warning Indication (Some Models) |
(Search) |
 |
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Warning Indication |
(Search) |
 |
LED Headlight Warning Light*1 |
(Search) |
 |
Smart Brake Support/Smart City Brake Support (SBS/SCBS) Warning Indication (Some Models) |
(Search) |
 |
Low Fuel Warning Indication/Warning Light |
(Search) |
 |
Check Fuel Cap Warning Indication/Warning Light*1 |
(Search) |
 |
Engine Oil Level Warning Light*1 |
(Search) |
 |
Seat Belt Warning Light (Front seat) |
(Search) |
 (Red) |
Seat Belt Warning Light (Rear seat) |
(Search) |
 |
Low Washer Fluid Level Warning Indication (Some Models) |
(Search) |
 |
Door-Ajar Warning Indication |
(Search) |
 |
Liftgate-Ajar Warning Indication |
(Search) |
 |
Door-Ajar Warning Light |
(Search) |
-
The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an Authorized Mazda Dealer.
-
The light turns on continuously when the parking brake is applied.
Odometer, Trip Meter and Trip Meter Selector

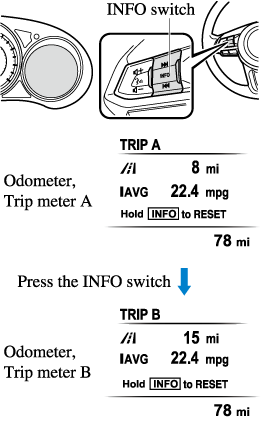

The odometer is constantly displayed on the screen when the ignition is switched ON, and the TRIP A or TRIP B screen can be displayed by operating the INFO switch.
Odometer
The odometer records the total distance the vehicle has been driven.
Trip meter
The driving distance for a specified interval is indicated. Two types (TRIP A, TRIP B) of interval distance and the average fuel economy for each can be measured.
For instance, trip meter A can record the distance from the point of origin, and trip meter B can record the distance from where the fuel tank is filled.
When trip meter A is selected, TRIP A will be displayed. When trip meter B is selected, TRIP B will be displayed.
The trip meter and average fuel economy can be reset by pressing the INFO switch for 1.5 seconds or more while in each mode.
-
Only the trip meters record tenths of kilometers (miles).
-
The trip record will be erased when:
-
The power supply is interrupted (blown fuse or the battery is disconnected).
-
The vehicle is driven over 9999.9 km (mile).
-
Maintenance Monitor (Except SKYACTIV-D 2.2)
The following maintenance period notifications can be displayed by turning the Maintenance Monitor on.
-
Scheduled Maintenance
-
Tire Rotation
-
Oil Change
When the remaining days to the maintenance period is 15 days or less, or the remaining distance is 1,000 km (600 miles) or shorter, a message is indicated when the ignition is switched ON.
For the setting method and indications for the maintenance monitor, refer to the Maintenance Monitor.
Refer to the Information section in the Mazda Connect Owner's Manual.
Remaining Diesel Exhaust Fluid (DEF) and Maximum Driving Distance Display (SKYACTIV-D 2.2)
The remaining amount of DEF and the remaining-distance-to-empty indications are displayed when the ignition is switched ON.
If the remaining amount of DEF is low or there is a problem with the Selective Catalytic Reduction (SCR) system and there is less maximum remaining driving distance, the remaining-distance-to-empty indication is continuously displayed.
If the remaining amount of DEF is low or there is a problem with the SCR system, the SCR warning light turns on/flashes and a warning message is displayed.
Refer to Selective Catalytic Reduction (SCR) System Indications (Search).
