Switches and Controls

Lighting Control

Headlight Leveling

The number of passengers and weight of cargo in the luggage compartment change the angle of the headlights.



Auto type

The angle of the headlights will be automatically adjusted when turning on the headlights.



A system malfunction or operation conditions are indicated by a warning.

Refer to Contact Mazda Dealer and Have Vehicle Inspected (Search).

Manual type

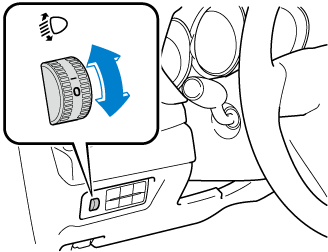

The headlight leveling switch is used to adjust the angle of the headlights manually.

Select the proper headlight angle from the following chart.

Front seat

Rear seat

Load

Switch Position

Driver

Passenger

×

―

―

―

0

×

×

―

―

0

×

×

×

―

1

×

×

×

×

1

×

―

―

×

1.5

×: Yes

―: No

Daytime Running Lights

Some countries require moving vehicles to have their lights on (daytime running lights) during the daytime.



Except Canada

The daytime running lights turn on when the vehicle is driven and turn off when the parking brake is operated or the selector lever is shifted to the P position.



The daytime running lights can be deactivated.

Refer to the Settings section in the Mazda Connect Owner's Manual.

Close Note
View Note

Canada

The daytime running lights continuously turn on when the ignition is switched ON.

When the light switch is switched to the OFF or position while the vehicle is stopped, the daytime running lights turns off. When you start driving the vehicle, they turn on again.



When the light switch is switched to the position, the daytime running lights turn off. If you want to drive the vehicle with the daytime running lights turned on, switch the light switch to a position other than .

Close Note
View Note
