Parking Sensor System (Mazda Connect (Type A))

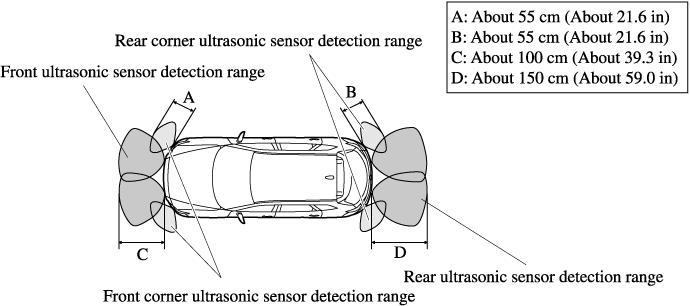

Sensor Detection Range
The sensors detect obstructions within the following range.
Viewing distance display
|
Display |
Distance between vehicle and obstruction |
|
|---|---|---|
|
Front ultrasonic sensor/Front ultrasonic corner sensor |
Rear ultrasonic sensor/Rear ultrasonic corner sensor |
|
|
Green
|
Front ultrasonic sensor: Approx. 100―60 cm (39.3―23.6 in) |
Rear ultrasonic sensor: Approx. 150―60 cm (59.0―23.6 in) |
|
Yellow
|
Front ultrasonic sensor: Approx. 60―45 cm (23.6―17.7 in) Front corner ultrasonic sensor: Approx. 55―38 cm (21.6―14.9 in) |
Rear ultrasonic sensor: Approx. 60―45 cm (23.6―17.7 in) Rear corner ultrasonic sensor: Approx. 55―38 cm (21.6―14.9 in) |
|
Amber
|
Front ultrasonic sensor: Approx. 45―35 cm (17.7―13.7 in) Front corner ultrasonic sensor: Approx. 38―25 cm (14.9―9.8 in) |
Rear ultrasonic sensor: Approx. 45―35 cm (17.7―13.7 in) Rear corner ultrasonic sensor: Approx. 38―25 cm (14.9―9.8 in) |
|
Red
|
Front ultrasonic sensor: Within approx. 35 cm (13.7 in) Front corner ultrasonic sensor: Within approx. 25 cm (9.8 in) |
Rear ultrasonic sensor: Within approx. 35 cm (13.7 in) Rear corner ultrasonic sensor: Within approx. 25 cm (9.8 in) |
