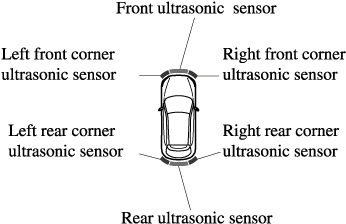

The position of a sensor which has detected an obstruction is indicated. The gauge illuminates in different areas depending on the distance to an obstruction detected by the sensor.
As the vehicle approaches closer to an obstruction, the zone in the gauge closer to the vehicle illuminates.
The detection indicator can switch between display and non-display.
Refer to the Settings section in the Mazda Connect Owner's Manual.
When the detection indicator is set to “Display”, even with the 360° view monitor not displayed, if a front ultrasonic sensor or a front corner ultrasonic sensor detects an obstruction, the 360° view monitor switches automatically to display. When an obstruction is no longer detected, the display switches to the display before the obstruction was detected. However, while the 360° view monitor is displayed, it continues to display no matter if an obstruction is detected or not.
System problem notification
If a problem occurs, the driver is notified of the problem by the following indications.
|
Detection Indicator
|
Solution
|
|
Disconnection
|
 |
The system may have a malfunction. Have the vehicle inspected at an Authorized Mazda Dealer as soon as possible.
|
|
System malfunction
|
 |
The system may have a malfunction. Have the vehicle inspected at an Authorized Mazda Dealer as soon as possible.
|
|
Frost/soiling
|
 |
Foreign matter may be on the sensor area corresponding to the obstruction detection indication shown. If the system does not recover, have the vehicle inspected at an Authorized Mazda Dealer.
|
|
|
|
