Interior Equipment
Sunvisors
When you need a sunvisor, lower it for use in front or swing it to the side.
Interior Lights
Do not leave the lights on for long periods while the engine is turned off. Otherwise the battery power could be depleted.
Overhead Lights
Type A
|
Switch Position |
Overhead Lights |
|---|---|
 |
Light off |
 |
|
 |
Light on |
The rear map lights also turn on and off when the overhead light switch is operated.
Type B
|
Switch |
Overhead Lights |
|---|---|
|
|
The DOOR OFF switch can be switched between the DOOR position and DOOR OFF position. DOOR position
DOOR OFF position
|
|
|
Press the switch to turn it on. Press the switch again to turn off the lights. |
(DOOR OFF)
Front Map Lights
Type A
When the overhead light switch is in the door or off position, press the lens to illuminate the front map lights, and then press the lens again to turn them off.
The front map lights will not turn off even if the lens is pressed in the following cases:
-
The overhead light switch is in the ON position.
-
The overhead light switch is in the door position with the door open.
-
The illuminated entry system is on.
Type B
Press the switch to illuminate the front map lights, and then press the switch again to turn them off.
The front map lights will not turn off even if the switch is pressed in the following cases:
-
The overhead lights turn on by operating the overhead ON/OFF switch (
). -
The overhead lights turn on in conjunction with a door opening/closing.
-
The illuminated entry system is on.
Rear Map Lights
Type A
When the overhead light switch is in the door or off position, press the lens to illuminate a rear map light, and then press the lens again to turn it off.
-
Once the rear map lights have been turned off, they will turn on and off depending on the position to which the overhead light is switched.
-
The rear map lights will not turn off even if the lens is pressed in the following cases:
-
The overhead light switch is ON.
-
The overhead light switch is in the door position with the door open.
-
The illuminated entry system is on.
-
Type B
Press the switch to illuminate the rear map lights, and then press the switch again to turn them off.
-
Once the rear map lights have been turned off, they will turn on and off in conjunction with the overhead light operation.
-
The rear map lights will not turn off even if the switch is pressed in the following cases:
-
The overhead lights turn on by operating the overhead ON/OFF switch (
). -
The overhead lights turn on in conjunction with a door opening/closing.
-
The illuminated entry system is on.
-
Luggage Compartment Lights
|
Switch Position |
Luggage Compartment Light |
|---|---|
|
Light off |
|
Light on when the liftgate is open |

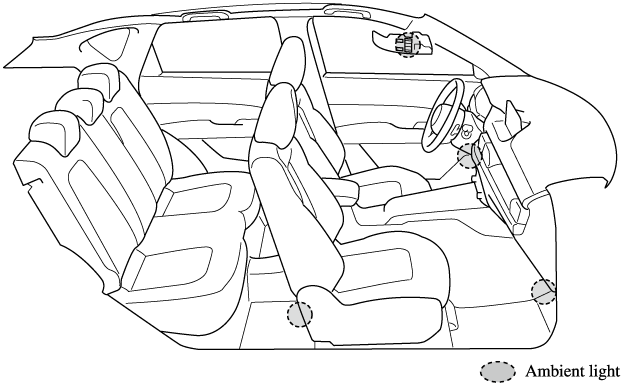

Ambient Light (Some Models)
An ambient light continuously turn on when the ignition is switched ON.
An ambient light dim when the parking lights or headlights are turned on.
-
An ambient light turn on or off in conjunction with the illuminated entry system when the ignition is switched OFF.
-
The ambient light illumination level can be changed while the parking lights or headlights are turned on.
Refer to the Settings section in the Mazda Connect Owner's Manual.
USB Power Outlet (Some Models)
The USB power outlets can be used regardless of whether the ignition is switched to ACC or ON.
Only use USB devices that have a maximum power consumption of 10.5W (DC5V, 2.1A) or below.
-
To prevent USB power outlets damage or electrical failure, pay attention to the following:
-
Do not use USB devices that require more than 10.5 W (DC 5 V, 2.1 A).
-
Close the lid when the USB power outlets are not in use to prevent foreign objects and liquids from getting into the USB power outlets.
-
Correctly connect the USB connector into the USB power outlets.
-
-
The USB power outlets are designed only for charging and they cannot be used for connecting to the vehicle's audio system.
-
To prevent discharging of the battery, do not use the USB power outlets for long periods with the engine off or idling.
How to connect
The groove in the armrest box can be used to pass the cord of the device into the box to connect it to the USB power outlets.
-
Open the lid.
-
Route the cord through the groove in the armrest box and insert the USB connector into the USB power outlets.
