Instrument Cluster and Display

The tachometer shows engine speed in thousands of revolutions per minute (rpm).



---

Do not run the engine with the tachometer needle in the RED ZONE.

This may cause severe engine damage.



Close Caution

View Caution



---

When the tachometer needle enters the STRIPED ZONE, this indicates to the driver that the gears should be shifted before entering the RED ZONE.

Close Note

View Note

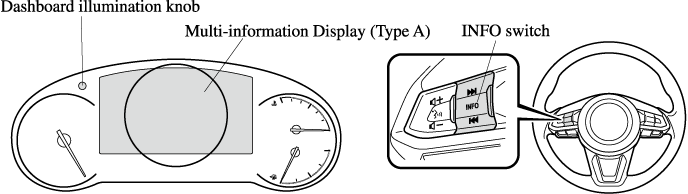

The multi-information display indicates the following information.

• Speedometer

• Odometer

• Trip meter

• Outside temperature

• Distance-to-empty

• Average fuel economy

• Current fuel economy

• Maintenance Monitor

• Blind Spot Monitoring (BSM) Display

• Distance Recognition Support System (DRSS) Display

• Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) System Display

• Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Display

• Cruise Control Display

• Compass Display

• Door-Ajar/Liftgate-Ajar Warning Indication

• Message Display

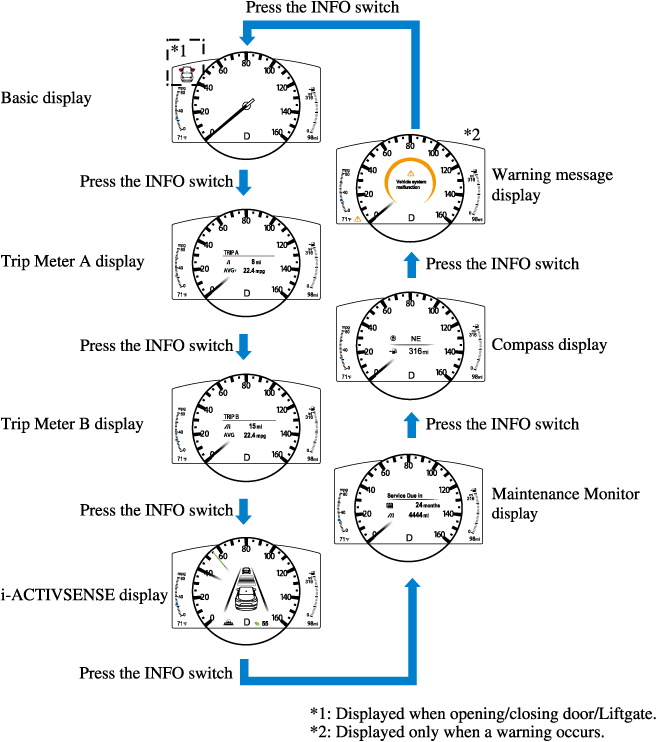

The screen content changes each time the INFO switch is pressed.

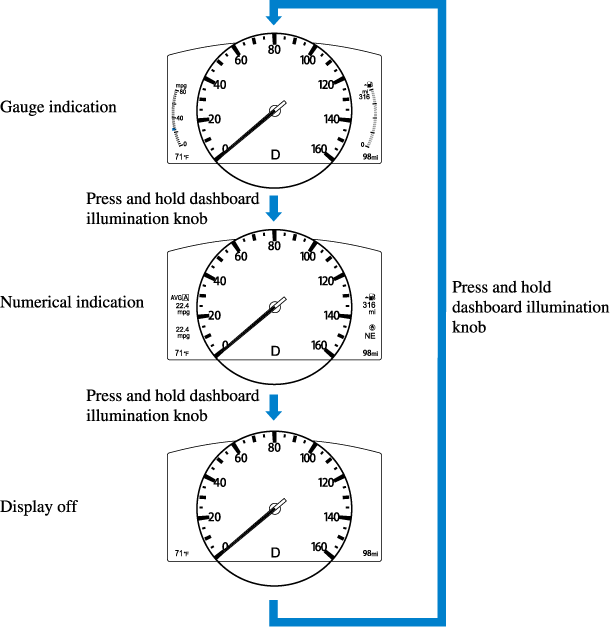

The screen content changes each time the dashboard illumination knob is pressed and held.

Displays the engine coolant temperature. The blue range of the gauge indicates that the engine coolant temperature is low, and the red range of the gauge indicates that the engine coolant temperature is high and overheating.



---

If the engine coolant temperature gauge needle is in the red range, there is the possibility of overheating. Drive slowly to reduce engine load until you can find a safe place to stop the vehicle and wait for the engine to cool down.

Refer to Overheating (Search).

Close Caution

View Caution



---

• If the engine coolant temperature is high or the engine is hot, the engine output may be limited.

Close Note

View Note

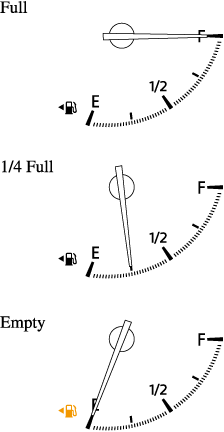

The fuel gauge shows approximately how much fuel is remaining in the tank when the ignition is switched ON. We recommend keeping the tank over 1/4 full.

If the low fuel warning light illuminates or the fuel level is very low, refuel as soon as possible.

If inconsistency in engine performance or stalling occurs due to low fuel level conditions, refuel the vehicle as soon as possible and add at least 10 L (2.7 US gal, 2.2 Imp gal) of fuel.

Refer to Taking Action (Search).



---

• After refueling, it may require some time for the indicator to stabilize. In addition, the indicator may deviate while driving on a slope or curve since the fuel moves in the tank.

• The direction of the arrow () indicates that the fuel-filler lid is on the left side of the vehicle.

Close Note

View Note

When the lights are turned on with the ignition switched ON, the brightness of the dashboard illumination is dimmed. However, when the light sensor detects that the surrounding area is bright such as when the lights are turned on in the daytime, the dashboard illumination does not dim.



---

• When the ignition is switched ON in the early evening or at dusk, the dashboard illumination is dimmed for several seconds until the light sensor detects the brightness of the surrounding area, however, the dimming may cancel after the brightness is detected.

• When the lights are turned on, the lights-on indicator light in the instrument cluster turns on.

  Refer to Headlights (Search).

Close Note

View Note

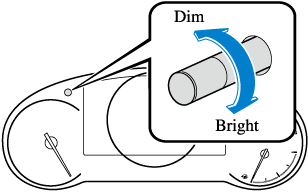

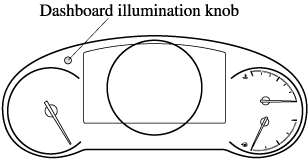

The brightness of the instrument cluster and dashboard illuminations can be adjusted by rotating the knob.

• The brightness decreases by rotating the knob to the left. A beep sound will be heard when the knob has been rotated to the maximum dim position.

• The brightness increases by rotating the knob to the right.

Function for canceling illumination dimmer

The illumination dimmer can be canceled by rotating the dashboard illumination knob to the right until a beep sound is heard while the instrument cluster is dimmed with the ignition switched ON. If the instrument cluster's visibility is reduced due to glare from surrounding brightness, cancel the illumination dimmer.



---

• When the illumination dimmer is canceled, the instrument cluster cannot be dimmed even if the lights are turned on.

• When the illumination dimmer is canceled, the screen in the center display switches to constant display of the daytime screen.

Close Note

View Note

In some countries, you may have to change the speed units between km/h and mph.

When pressing the dashboard illumination knob, the speed units in the instrument cluster will change.

The average fuel economy is calculated every minute from the total traveled distance on the trip meter and the total fuel consumption, and the average fuel economy for either TRIP A or TRIP B is displayed.

The average fuel economy and trip meters can be reset by pressing the INFO switch for 1.5 seconds or more while in each mode. After the data is cleared, the fuel consumption is recalculated and the - - - km/L (- - - mpg) for the 1 minute prior to it being displayed is indicated.

This displays the current fuel economy by calculating the amount of fuel consumption and the distance traveled.



---

• Indicates the 0 position when the vehicle speed is about 5 km/h (3 mph) or slower.

• The red arrow on the scale indicates the average fuel economy.

Close Note

View Note

Displays the currently set system status.

Refer to Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) (Search).

Displays the distance between your vehicle and the vehicle ahead.

Refer to Distance Recognition Support System (DRSS) (Search).

The direction the vehicle is moving is displayed in one of eight directions while the vehicle is being driven.

A message such as the system operation status, a malfunction, or an abnormality is indicated.

Warning/indicator light in instrument cluster turns on/flashes or symbol is indicated on display at same time as message

Check the information regarding the warning/indicator light or indicated symbol.

Refer to If a Warning Indication/Warning Lights (Search).

Refer to If a Indication/Indicator Lights (Search).

Message only is indicated on display

Follow the instructions indicated on the display. For the display content, refer to the next page.

Refer to If a Message Indicated on Multi-information Display (Search).

These lights turn on or flash to notify the user of the system operation status or a system malfunction.

Signal	Warning	Page
	Brake System Warning Indication/Warning Light*1*2	(Search)
	ABS Warning Light*1	Electronic Brake Force Distribution System Warning (Search)
		ABS warning (Search)
	Charging System Warning Indication/Warning Light*1	(Search)
	Engine Oil Warning Light*1	(Search)
	High Engine Coolant Temperature Warning Indication	(Search)
	Power Steering Malfunction Indication	(Search)
	Master Warning Indication	(Search)
	Electric Parking Brake (EPB) Warning Indication/Warning Light*1	(Search)
	Check Engine Light*1	(Search)
	Automatic Transaxle Warning Indication	(Search)
	AWD Warning Indication (Some Models)	(Search)
	Air Bag/Front Seat Belt Pretensioner System Warning Light*1	(Search)
	Tire Pressure Monitoring System Warning Light*1	Flashing (Search)
		Turns on (Search)
(Amber/White)	KEY Warning Indication	Amber (Search)
		White (Search)
(Amber)	High Beam Control System (HBC) Warning Indication/Warning Light*1	(Search)
	Blind Spot Monitoring (BSM) Warning Indication	(Search)
(Amber)	Driver Attention Alert (DAA) Warning Indication (Some Models)	(Search)
(Amber)	Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Warning Indication (Some Models)	(Search)
(Amber)	Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Warning Indication	(Search)
	LED Headlight Warning Light*1	(Search)
	Smart Brake Support/Smart City Brake Support (SBS/SCBS) Warning Indication (Some Models)	(Search)
	Low Fuel Warning Indication/Warning Light	(Search)
	Check Fuel Cap Warning Indication/Warning Light*1	(Search)
	Engine Oil Level Warning Light*1	(Search)
	Seat Belt Warning Light (Front seat)	(Search)
(Red)	Seat Belt Warning Light (Rear seat)	(Search)
	Low Washer Fluid Level Warning Indication (Some Models)	(Search)
	Door-Ajar Warning Indication	(Search)
	Liftgate-Ajar Warning Indication	(Search)
	Door-Ajar Warning Light	(Search)

1. The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an Authorized Mazda Dealer.

2. The light turns on continuously when the parking brake is applied.

These lights turn on or flash to notify the user of the system operation status or a system malfunction.

Signal	Indicator	Page
(Green)	Seat Belt Indicator Light (Rear seat)	(Search)
	Front Passenger Air Bag Deactivation Indicator Light*1 (Some Models)	(Search)
	Security Indicator Light*1	(Search)
	Wrench Indication	(Search)
	Shift Position Indication	(Search)
	Lights-On Indication/Indicator Light	(Search)
	Headlight High-Beam Indicator Light	Headlight High-Low Beam (Search)
		Flashing the Headlights (Search)
	Turn Signal/Hazard Warning Indicator Lights	Turn and Lane-Change Signals (Search)
		Hazard Warning Flasher (Search)
	AUTOHOLD Active Indicator Light*1	(Search)
	Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) indicator Light*1 (Some Models)	(Search)
	TCS/DSC Indicator Light*1	Traction Control System (TCS) (Search)
		Dynamic Stability Control (DSC) (Search)
		Turns on (Search)
	TCS OFF Indicator Light (FWD) *1	(Search)
	Off-Road Traction Assist Indicator Light (AWD) *1	(Search)
	Select Mode Indication	(Search)
(Green)	High Beam Control System (HBC) Indicator Light	(Search)
	Blind Spot Monitoring (BSM) OFF Indicator Light*1	Malfunction (Search)
		Except malfunction (Search)
(White)	Driver Attention Alert (DAA) Indication (Some Models)	(Search)
(White)	Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Main Indication (Some Models)	(Search)
(Green)	Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Set Indication (Some Models)	(Search)
	Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Indication	(Search)
	Smart City Brake Support (SCBS) Indication (Some Models)	Advanced Smart City Brake Support (Advanced SCBS) (Search)
		Smart City Brake Support [Reverse] (SCBS R) (Search)
	Smart Brake Support/Smart City Brake Support (SBS/SCBS) OFF Indicator Light*1 (Some Models)	Advanced Smart City Brake Support (Advanced SCBS) (Search)
		Smart City Brake Support [Reverse] (SCBS R) (Search)
		Smart Brake Support (SBS) System (Search)
(White)	Cruise Main Indication (Some Models)	(Search)
(Green)	Cruise Set Indication (Some Models)	(Search)

1. The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an Authorized Mazda Dealer.
