Instrument Cluster and Display

Instrument Cluster (Type A)

Engine Coolant Temperature Gauge

Displays the engine coolant temperature. The blue range of the gauge indicates that the engine coolant temperature is low, and the red range of the gauge indicates that the engine coolant temperature is high and overheating.





If the engine coolant temperature gauge needle is in the red range, there is the possibility of overheating. Drive slowly to reduce engine load until you can find a safe place to stop the vehicle and wait for the engine to cool down.

Refer to Overheating (Search).

Close Caution
View Caution



  • (SKYACTIV-G 2.5T)

    If the engine coolant temperature is high or the engine is hot, the engine output may be limited.

Close Note
View Note

Dashboard Illumination

When the lights are turned on with the ignition switched ON, the brightness of the dashboard illumination is dimmed. However, when the light sensor detects that the surrounding area is bright such as when the lights are turned on in the daytime, the dashboard illumination does not dim.



  • When the ignition is switched ON in the early evening or at dusk, the dashboard illumination is dimmed for several seconds until the light sensor detects the brightness of the surrounding area, however, the dimming may cancel after the brightness is detected.

  • When the lights are turned on, the lights-on indicator light in the instrument cluster turns on.

    Refer to Headlights (Search).

Close Note
View Note

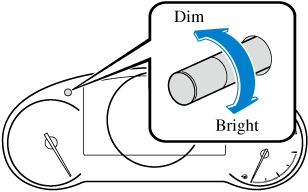

The brightness of the instrument cluster and dashboard illuminations can be adjusted by rotating the knob.

  • The brightness decreases by rotating the knob to the left. A beep sound will be heard when the knob has been rotated to the maximum dim position.

  • The brightness increases by rotating the knob to the right.

Function for canceling illumination dimmer

The illumination dimmer can be canceled by rotating the dashboard illumination knob to the right until a beep sound is heard while the instrument cluster is dimmed with the ignition switched ON. If the instrument cluster's visibility is reduced due to glare from surrounding brightness, cancel the illumination dimmer.



  • When the illumination dimmer is canceled, the instrument cluster cannot be dimmed even if the lights are turned on.

  • When the illumination dimmer is canceled, the screen in the center display switches to constant display of the daytime screen.

Close Note
View Note

Blind Spot Monitoring (BSM) Display

Displays the system status.



Refer to Blind Spot Monitoring (BSM) (Search).

Wrench Indication

The wrench indication is displayed under the following conditions.

  • When the preset maintenance period has arrived.

    Refer to the Applications (Mazda Connect (Type A))/Information (Mazda Connect (Type B)) section in the Mazda Connect Owner's Manual.

  • When the engine oil replacement period has arrived.



  • The wrench indication may display earlier than the preset period depending on vehicle usage conditions.

  • Whenever the engine oil is replaced, a reset of the vehicle engine control unit is necessary.

    Refer to the Applications (Mazda Connect (Type A))/Information (Mazda Connect (Type B)) section in the Mazda Connect Owner's Manual.

Close Note
View Note
