Selector Lever Position Functions

Selector Lever Position Functions

Selector Lever Position Functions

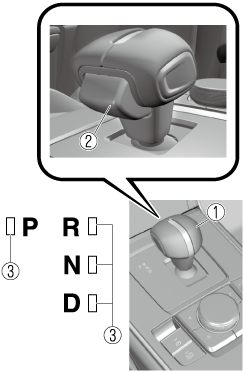

  1. Selector lever

  2. Lock-release button

  3. Shift indicator

P (Park)

Position when parking the vehicle and when starting the EV system.



Always set the selector lever to P position and set the parking brake:

Only setting the selector lever to the P position without using the parking brake to hold the vehicle is dangerous. If P fails to hold, the vehicle could move and cause an accident.

Close Warning
View Warning



When the lead-acid battery is depleted, the parking lock does not operate even if the selector lever is shifted to the P position.

Close Note
View Note

R (Reverse)

Position for reversing the vehicle.

A beep is activated to notify the driver that the shift position is in the R position.

N (Neutral)

Position where power generated by the motor is not transmitted to the EV Transaxle.



Do not shift into N when driving the vehicle:

If the selector lever is shifted to the N position while driving, deceleration using the regenerative braking is not possible which could result in an accident.

Close Warning
View Warning



Apply the parking brake or depress the brake pedal before moving the selector lever from N position to prevent the vehicle from moving unexpectedly.

Close Note
View Note

D (Drive)

Position for normal driving.

Shift indicator

The shift position turns on.



The shift indicator turns on at the same position as the shift position indication in the instrument cluster.

Close Note
View Note

Shift Position Indication

  1. Shift position indication



When the power switch is switched ON, the shift position is displayed in the instrument cluster.

In the following cases, the shift position is displayed in the instrument cluster even if the power switch is in a position other than ON.

  • The AUTO P (parking lock) function is operating.

  • Neutral hold mode (automatic car wash mode) is operating.

Shift guide indication

When the shift position and the selector lever set position differ, the shift position and the selector lever set position are displayed.

  1. Shift guide indication

  2. Selector lever set position

  3. Shift position



The shift guide indication is displayed under the following conditions.

  • The selector lever is shifted to the P position while driving (vehicle speed of about 5 km/h (4 mph) or faster) with the selector lever in the D position.

  • The selector lever is shifted to the R position while driving forward (vehicle speed of about 10 km/h (6.3 mph) or faster) with the selector lever in the D position.

  • The selector lever is shifted to the D position while driving in reverse (vehicle speed of about 10 km/h (6.3 mph) or faster) with the selector lever in the R position.

  • The AUTO P (parking lock) function is operating.

  • While neutral hold mode (automatic car wash mode) is operating, the selector lever is shifted from the N position to the D or R position.



  • In the following cases, the shift position and the selector lever set position differ, however, the shift guide indication is not displayed.

    • The selector lever is shifted from the N position to the D or R position with the brake pedal not depressed.

  • When the power switch is switched ON or from ACC to OFF, the shift guide indication displayed after operating the AUTO P (parking lock) function turns on for about 40 seconds and then it turns off.

Close Note
View Note
