Instrument Cluster and Display
Maintenance Monitor
The following maintenance period notifications can be displayed by turning the Maintenance Monitor on.
-
Scheduled Maintenance
-
Tire Rotation
-
Oil Change
When the remaining days to the maintenance period is 15 days or less, or the remaining distance is 1,000 km (600 miles) or shorter, a message is indicated when the ignition is switched ON.
For the setting method and indications for the maintenance monitor, refer to the Maintenance Monitor.
Refer to the Information section in the Mazda Connect Owner's Manual.
Blind Spot Monitoring (BSM) Display
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Display (Some Models)
Displays the system status.
Refer to Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) (Search).

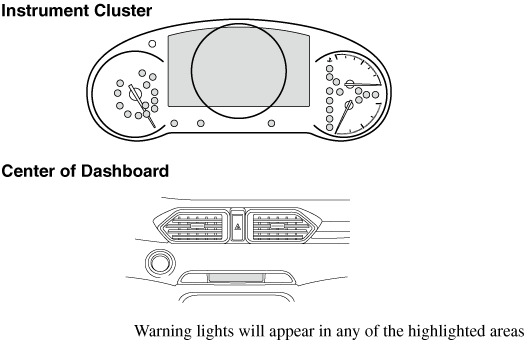

Warning/Indicator Lights
Instrument Cluster varies depending on model and specifications.
Instrument Cluster (Type B)
Tachometer
The tachometer shows engine speed in thousands of revolutions per minute (rpm).

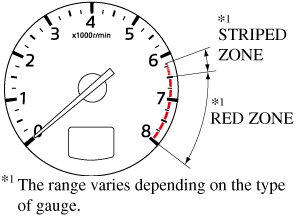

Do not run the engine with the tachometer needle in the RED ZONE.
This may cause severe engine damage.
When the tachometer needle enters the STRIPED ZONE, this indicates to the driver that the gears should be shifted before entering the RED ZONE.
Average Fuel Economy
The average fuel economy is calculated every minute from the total traveled distance on the trip meter and the total fuel consumption, and the average fuel economy for either TRIP A or TRIP B is displayed.
The average fuel economy and trip meters can be reset by pressing the INFO switch for 1.5 seconds or more while in each mode. After the data is cleared, the fuel consumption is recalculated and the - - - km/L (- - - mpg) for the 1 minute prior to it being displayed is indicated.
Current Fuel Economy
This displays the current fuel economy by calculating the amount of fuel consumption and the distance traveled.
Indicates the 0 position when the vehicle speed is about 5 km/h (3 mph) or slower.
Compass Display
The direction the vehicle is moving is displayed in one of eight directions while the vehicle is being driven.
|
Display |
Direction |
|---|---|
|
N |
North |
|
S |
South |
|
E |
East |
|
W |
West |
|
NE |
Northeast |
|
NW |
Northwest |
|
SE |
Southeast |
|
SW |
Southwest |
Message Display
A message such as the system operation status, a malfunction, or an abnormality is indicated.
Warning/indicator light in instrument cluster turns on/flashes or symbol is indicated on display at same time as message
Check the information regarding the warning/indicator light or indicated symbol.
Refer to If a Warning Indication/Warning Lights (Search).
Refer to If a Indication/Indicator Lights (Search).
Message only is indicated on display
Follow the instructions indicated on the display. For the display content, refer to the next page.
Refer to If a Message Indicated on Multi-information Display (Search).

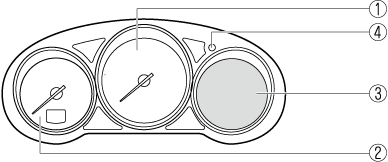

Instrument Cluster (Type C)
Speedometer
The speedometer indicates the speed of the vehicle.
Tachometer
The tachometer shows engine speed in thousands of revolutions per minute (rpm).
Do not run the engine with the tachometer needle in the RED ZONE.
This may cause severe engine damage.
When the tachometer needle enters the STRIPED ZONE, this indicates to the driver that the gears should be shifted before entering the RED ZONE.

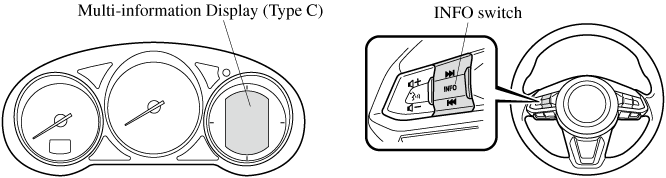

Multi-information Display (Type C)
The multi-information display indicates the following information.
-
Odometer
-
Trip meter
-
Engine coolant temperature gauge
-
Fuel gauge
-
Outside temperature
-
Trip Computer
-
Cruise Control Display
-
Compass Display
