Vehicle Interior Inspection

Checking the Inspection Locations and Inspection Items

Checking the Inspection Locations and Inspection Items

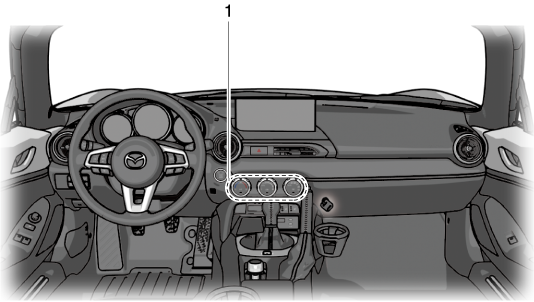

  1. Air Conditioner

Air Conditioner Maintenance

Air Conditioner Maintenance

Before Using the Air Conditioner

Lack of refrigerant may make the air conditioner less efficient.

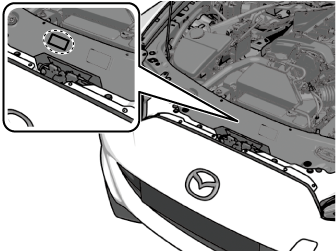

The refrigerant specifications are indicated on a label attached to the inside of the engine compartment. If the wrong type of refrigerant is used, it could result in a serious malfunction of the air conditioner. Consult a professional, government certified repairer for the inspection or repair because a special device is required for the air conditioner maintenance.

For details, consult an Authorized Mazda Dealer.

Air filter

An air filter with pollen and dust collecting function is equipped. To ensure safe and comfortable use of the air conditioner, have the air filter replaced periodically.

For details, consult an Authorized Mazda Dealer.



  • If the airflow of the climate control system significantly decreases, the air filter may be clogged. Replace the air filter.

  • If the vehicle is driven in areas with large amounts of dust and heavy traffic such as in large cities and cold regions, the air filter may need to be replaced more frequently.

Close Note
View Note
Replacing the Fuses

Replacing the Fuses

Fuses on the vehicle's left side

  1. Open the fuse panel cover.



Removing/Installing fuses on the vehicle's left side

  1. Make sure the vehicle power is switched off, and other switches are off.

  2. Remove the fuse puller provided on the fuse block located in the engine compartment according to the following procedure.

    1. Open the hood.

      Refer to How to Use the Hood (Search).

    2. Disengage the rear lock by pressing down on the front tab with your fingers.



    3. Remove the front tab while slightly lifting the front of the cover.



    4. Remove the cover while lifting it and sliding it to the rear.



    5. Remove the fuse puller



  3. Pull the fuse straight out with the fuse puller.



  4. Inspect the fuse and replace it if it is blown.

    1. Normal

    2. Blown



  5. Insert a new fuse of the same amperage rating, and make sure it fits tightly. If it does not fit tightly, have an expert install it. Consult an Authorized Mazda Dealer.

    If you have no spare fuses, borrow one of the same rating from a circuit not essential to vehicle operation, such as the audio or accessory socket circuit.



    Always replace a fuse with a genuine Mazda fuse or equivalent of the same rating. Otherwise, you may damage the electric system.

    Close Caution
    View Caution

  6. Reinstall the cover and make sure that it is securely installed.

Fuses under the hood

Contact an Authorized Mazda Dealer for replacing the fuses under the hood.

Fuse Panel Description

Fuse Panel Description

DESCRIPTION

FUSE RATING

PROTECTED COMPONENT

1

RHT R

30 A

Retractable hardtop (RH) (Some Models)

2

RHT L

30 A

Retractable hardtop (LH) (Some Models)

3

―

―

―

4

ENGINE6

10A

―

5

F.OUTLET

15 A

Accessory sockets

6

―

―

―

7

AT IND

7.5 A

AT shift indicator (Some Models)

8

MIRROR

7.5 A

Power control mirror

9

R_DECK R

30 A

Retractable hardtop (RH) (Some Models)

10

R_DECK L

30 A

Retractable hardtop (LH) (Some Models)

11

F.WASHER

15 A

Windshield washer

12

P.WINDOW

30 A

Power windows

13

―

―

―

14

SRS2/ESCL

15 A

Electronic steering lock

15

SEAT WARM

20 A

Seat warmer (Some Models)

16

M.DEF

7.5 A

Mirror defogger (Some Models)
