Fully Automatic Climate Control System

Air vent open/close

Move the knob or the dial to the fully open or fully closed direction.



Driver's Side Vents

1. Open

2. Close



Passenger's Side Vents

1. Open

2. Close



Rear Vents (Some Models)

1. Open

2. Close



Airflow direction adjustment



Driver's Side Vents



Passenger's Side Vents



Rear Vents (Some Models)



Airflow selection



Dashboard Vents

1. With rear vents



Dashboard and Floor Vents

1. With rear vents



Floor Vents

1. With rear vents



Defroster and Floor Vents

1. With rear vents



Defroster Vents

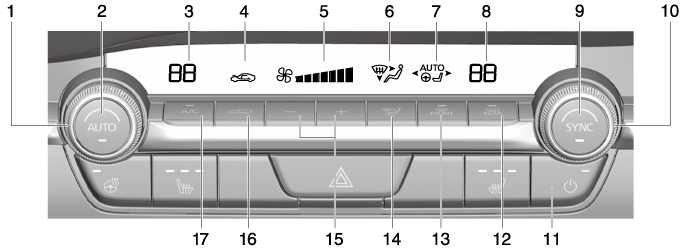

1. Driver temperature control dial

2. AUTO switch

3. Temperature setting display (driver’s side)

4. Air intake display

5. Airflow display

6. Mode selector display

7. Linked auto-comfort display^*1

   Refer to Convenient Ways to Use the Seat Warmer (Search).

   Refer to Convenient Ways to Use Heated Steering Wheel (Search).

8. Temperature setting display (passenger’s side)

9. SYNC (synchronized temperature) switch

10. Passenger temperature control dial

11. Power switch

12. Rear window defogger switch

13. Windshield defroster switch

14. Mode selector switch

15. Fan control switch

16. Air intake selector switch

17. A/C switch

1. The display differs depending on the climate controls, or whether or not the seat warmer and heated steering wheel are equipped.

1. Start the engine.

2.

   The AUTO switch indicator light turns on.

3. Turn the temperature control dial to set the desired temperature.

   Each function is automatically controlled according to the set temperature.

4. To stop the operation, press the climate control system power switch.
