Instrument Cluster

1. Tachometer

2. Multi-information Display

3. Engine Coolant Temperature Gauge

4. Fuel Gauge

5. Dashboard Illumination Switch

6. Speedometer

7. TRIP Switch

The speedometer indicates the speed of the vehicle.

The screen display informs you of the vehicle information.

The multi-information display indicates the following information.

• Speedometer

• Odometer

• Trip meter

• Outside temperature

• Maximum driving distance

• Average fuel economy

• Current fuel economy

• Mazda intelligent Drive Select (Mi-Drive) display

• i-ACTIVSENSE display

• Compass display

• Door-ajar/liftgate-open/hood-open warning indication^*1

• Message display

1. Displayed when opening door/liftgate/hood.

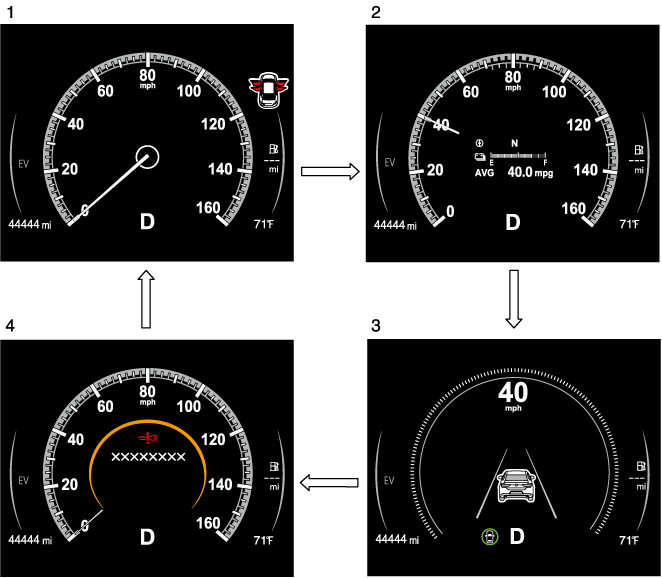

The screen content changes each time the INFO switch is pressed.

1. Basic display

2. Drive information display

3. i-ACTIVSENSE display

4. Message display^*1

1. Displayed only when a warning occurs.

Display information can be switched using Settings in Mazda Connect.

Set using “Settings” on the Mazda Connect home screen or consult an Authorized Mazda Dealer.

Odometer

The odometer records the total distance the vehicle has been driven.

Trip meter

The driving distance for a specified interval is indicated. Two types (TRIP A, TRIP B) of interval distance can be measured.

When the lights are turned on with the vehicle power switched ON, the brightness of the dashboard illumination is dimmed. However, when the light sensor detects that the surrounding area is bright such as when the lights are turned on in the daytime, the dashboard illumination does not dim.



---

When the vehicle power is switched ON in the early evening or at dusk, the dashboard illumination is dimmed for several seconds until the light sensor detects the brightness of the surrounding area, however, the dimming may cancel after the brightness is detected.

Close Note

View Note

Brightening the dashboard illumination

Dimming the dashboard illumination

If you press the - switch again while the dashboard illumination is at maximum dimness, a sound is activated to notify you that the dimmer setting is at maximum dimness.

Function for canceling illumination dimmer

The illumination dimmer can be canceled by pressing the + switch while the instrument cluster is at maximum dimness and while the vehicle power is switched ON. If you press the + switch again while the illumination dimmer is canceled, a sound is activated to notify you that it is canceled. If the instrument cluster's visibility is reduced due to glare from surrounding brightness, cancel the illumination dimmer.

When the vehicle power is switched ON, the outside temperature is displayed.



---

The outside temperature display may differ from the actual outside temperature depending on the surroundings and vehicle conditions. Drive the vehicle for awhile so that the ambient temperature sensor can adjust to the correct outside temperature.

Close Note

View Note

The maximum driving distance is calculated and displayed based on the current remaining charge of the high voltage battery/fuel tank level and the electrical power consumption rate/fuel economy.

1. Maximum driving distance display for fuel and high voltage battery

2. Remaining distance-to-full discharge display for high voltage battery only



---

The maximum driving distance is just an approximate numerical value and differs from the actual driving distance. Drive the vehicle while checking the high voltage battery power gauge/fuel gauge.

Close Note

View Note

To reset the displayed average fuel economy data, press the INFO switch for 2 seconds or longer.

After resetting the data, - - - L/100 km (- - - mpg) is displayed until the average fuel economy is recalculated and displayed.

The direction the vehicle is moving is displayed in one of eight directions while the vehicle is being driven.

Displays a message to notify the user of the system operation status and malfunctions or abnormalities.

Follow the instructions indicated on the display.

Refer to How to Use the Multi-information Display (Search).
