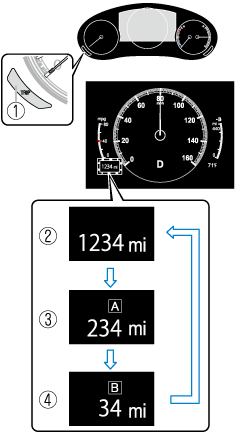

Odometer, Trip Meter and Trip Meter Selector

You can switch between the odometer and trip meter display using the TRIP switch.



  1. TRIP switch

  2. Odometer display

  3. Trip meter A display

  4. Trip meter B display

Odometer

The odometer records the total distance the vehicle has been driven.

Trip meter

The driving distance for a specified interval is indicated. Two types (TRIP A, TRIP B) of interval distance can be measured.



For instance, trip meter A can record the distance from the point of origin, and trip meter B can record the distance from where the fuel tank is filled.



When trip meter A is selected, TRIP A will be displayed. When trip meter B is selected, TRIP B will be displayed.



The trip meter can be reset by pressing the TRIP switch for 1.5 seconds or more while the trip meter is displayed.




Only the trip meters record tenths of kilometers (miles).
