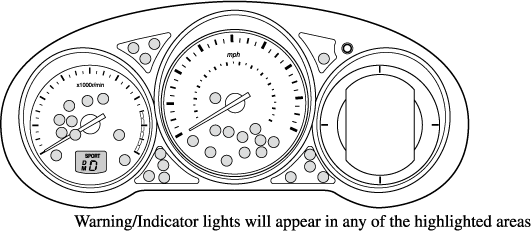

Speedometer

The speedometer indicates the speed of the vehicle.

Odometer, Trip Meter and Trip Meter Selector

The display mode can be changed between trip meter A and trip meter B by pressing the selector while one of them is displayed. The selected mode will be displayed.

Type A

Type B




When the ignition is switched to ACC or OFF, the odometer or trip meters cannot be displayed, however, pressing the selector can inadvertently switch the trip meters or reset them during an approximate ten-minute period in the following cases:

  • After the ignition is switched to OFF from ON.

  • After the driver's door is opened.

Close Note

Odometer

The odometer records the total distance the vehicle has been driven.

Trip meter

The trip meter can record the total distance of two trips. One is recorded in trip meter A, and the other is recorded in trip meter B.



For instance, trip meter A can record the distance from the point of origin, and trip meter B can record the distance from where the fuel tank is filled.



When trip meter A is selected, pressing the selector again within one second will change to trip meter B mode.



When trip meter A is selected, TRIP A will be displayed. When trip meter B is selected, TRIP B will be displayed.



The trip meter records the total distance the vehicle is driven until the meter is again reset. Return it to “0.0” by holding the selector depressed for 1 second or more. Use this meter to measure trip distances and to compute fuel consumption.




  • (Vehicles with type B audio)

    If the fuel economy data is reset using the fuel economy monitor, or trip A is reset using the trip meter when the function which synchronizes the fuel economy monitor and the trip meter is on, the fuel economy data and trip A are reset simultaneously.

    Refer to Fuel Economy Monitor (Search).

  • Only the trip meters record tenths of kilometers (miles).

  • The trip record will be erased when:

    • The power supply is interrupted (blown fuse or the battery is disconnected).

    • The vehicle is driven over 9999.9 km (mile).

Close Note

Tachometer

The tachometer shows engine speed in thousands of revolutions per minute (rpm).




Do not run the engine with the tachometer needle in the RED ZONE.

This may cause severe engine damage.



Close Caution




When the tachometer needle enters the STRIPED ZONE, this indicates to the driver that the gears should be shifted before entering the RED ZONE.

Close Note

Fuel Gauge

The fuel gauge shows approximately how much fuel is remaining in the tank when the ignition is switched ON. We recommend keeping the tank over 1/4 full.

Type A



Type B



If the low fuel warning light illuminates or the fuel level is very low, refuel as soon as possible.

Refer to Warning/Indicator Lights (Search).




  • After refueling, it may require some time for the indicator to stabilize. In addition, the indicator may deviate while driving on a slope or curve since the fuel moves in the tank.

  • The display indicating a quarter or less remaining fuel has more segments to show the remaining fuel level in greater detail.

  • The direction of the arrow () indicates that the fuel-filler lid is on the left side of the vehicle.

Close Note

Dashboard Illumination

Rotate the knob to adjust the brightness of the instrument cluster and other illuminations in the dashboard.




  • The brightness of dashboard illuminations can be adjusted when the headlights and Parking lights are turned on.

  • When the dashboard illumination brightness cannot be adjusted any more, a beep sound will be heard.

Close Note

Canceling the illumination dimmer

When the headlight switch is in the or position, the illumination of the instrument cluster dims.



When driving on snowy or foggy roads, or in other situations when the instrument cluster's visibility is reduced due to glare from surrounding brightness, cancel the illumination dimmer and increase the illumination intensity.



To cancel the illumination dimmer, rotate the knob clockwise fully. You will hear a beep sound and the illumination dimmer will be canceled.






  • This symbol () indicates the knob to adjust the brightness of the dashboard illumination.

  • If the dashboard illumination knob is kept at the illumination dimmer cancel position, the instrument cluster will not dim when the headlight switch is turned to the or position again. Rotate the dashboard illumination knob counterclockwise to activate the illumination dimmer.

Close Note

Outside Temperature Display

When the ignition is switched ON, the outside temperature is displayed.




  • Under the following conditions, the outside temperature display may differ from the actual outside temperature depending on the surroundings and vehicle conditions:

    • Significantly cold or hot temperatures.

    • Sudden changes in outside temperature.

    • The vehicle is parked.

    • The vehicle is driven at low speeds.

Close Note

(Vehicles with type A audio)

The outside temperature unit can be switched between Celsius and Fahrenheit using the following procedure.

  1. Press the INFO button with the ignition switched off and continue pressing the INFO button for 5 seconds or longer while switching the ignition ON. The outside temperature display flashes.

  2. Press the up or down part of the INFO switch to change the outside temperature unit.

  3. Press and hold the INFO button for 3 seconds or longer while the outside temperature display is flashing. The outside temperature display illuminates.

Cruise Control Set Vehicle Speed Display (Type A instrument cluster)

The vehicle speed preset using the cruise control is displayed.



Maintenance Monitor (Type A instrument cluster)

The following maintenance period notifications can be displayed by turning the Maintenance Monitor on.

  • Scheduled Maintenance

  • Tire Rotation

  • Oil Change

For the setting method and indications for the maintenance monitor, refer to the Maintenance Monitor.

Refer to Maintenance Monitor (Search).

The maintenance monitor displays the information when the ignition is switched ON.




This function is inoperable while the vehicle is being driven.

Close Note

Message display

When the remaining time or the distance approaches 0, a message is displayed each time the ignition is switched ON.




  • If any of the INFO switches (up , down , or INFO button) is pressed while a message is displayed, it will no longer be displayed the next time the ignition is switched ON.

  • After the vehicle is serviced and the remaining time/distance is reset, the message for the next maintenance period will be displayed when the remaining distance or time to the next maintenance period approaches 0 (displays when engine is started).

  • If there are multiple messages, they are displayed according to their order.

  • If OFF is set for Messages, messages are not displayed.

Close Note

Trip Computer and INFO Switch

The following information can be selected by pressing the up or down part of the INFO switch with the ignition switched ON.

  • Approximate distance you can travel on the available fuel

  • Average fuel economy

  • Current fuel economy

  • Average vehicle speed

  • Lane departure warning system (LDWS) display (Type A instrument cluster) (Some Models)

  • Mazda Radar Cruise Control (MRCC) display (Type A instrument cluster) (Some Models)

  • Distance Recognition Support System (DRSS) display (Type A instrument cluster) (Some Models)

  • Warning (Type A instrument cluster)

If you have any problems with your trip computer, consult an Authorized Mazda Dealer.

Distance-to-empty mode

This mode displays the approximate distance you can travel on the remaining fuel based on the fuel economy.



The distance-to-empty will be calculated and displayed every second.




  • Even though the distance-to-empty display may indicate a sufficient amount of remaining driving distance before refueling is required, refuel as soon as possible if the fuel level is very low or the low fuel warning light illuminates.

  • The display will not change unless you add more than approximately 10 L (2.6 US gal, 2.2 Imp gal) of fuel.

  • The distance-to-empty is the approximate remaining distance the vehicle can be driven until all the graduation marks in the fuel gauge indicating the remaining fuel supply disappear.

  • If there is no past fuel economy information such as after first purchasing your vehicle or the information is deleted when the battery cables are disconnected, the actual distance-to empty/range may differ from the amount indicated.

Close Note

Average fuel economy mode

This mode displays the average fuel economy by calculating the total fuel consumption and the total traveled distance since purchasing the vehicle, re-connecting the battery after disconnection, or resetting the data. The average fuel economy is calculated and displayed every minute.

To clear the data being displayed, press the INFO button for more than 1.5 seconds.

After pressing the INFO button, - - - L/100 km (- - - mpg) will be displayed for about 1 minute before the fuel economy is recalculated and displayed.

Current fuel economy mode

This mode displays the current fuel economy by calculating the amount of fuel consumption and the distance traveled.



Current fuel economy will be calculated and displayed every 2 seconds.

When you've slowed to about 5 km/h (3 mph), - - - L/100 km (- - - mpg) will be displayed.

Average vehicle speed mode

This mode displays the average vehicle speed by calculating the distance and the time traveled since connecting the battery or resetting the data.

Average vehicle speed will be calculated and displayed every 10 seconds.

To clear the data being displayed, press the INFO button for more than 1.5 seconds. After pressing the INFO button, - - - km/h (- - - mph) will be displayed for about 1 minute before the vehicle speed is recalculated and displayed.

Lane Departure Warning System (LDWS) display (Type A instrument cluster) (Some Models)

Information regarding the Lane Departure Warning System (LDWS) is displayed.

Refer to Lane Departure Warning System (LDWS) (Search).

Mazda Radar Cruise Control (MRCC) display (Type A instrument cluster) (Some Models)

Information regarding the Mazda Radar Cruise Control (MRCC) is displayed.

Refer to Mazda Radar Cruise Control (MRCC) (Search).

Distance Recognition Support System (DRSS) display (Type A instrument cluster) (Some Models)

Information regarding the Distance Recognition Support System (DRSS) is displayed.

Refer to Distance Recognition Support System (DRSS) (Search).

Warning (Display Indication) (Type A instrument cluster)

A message is displayed to notify the user of the system operation status and malfunctions or abnormalities.

Check the indicated message.
