i-ACTIVSENSE
Lane Departure Warning System (LDWS) (Some Models)
The LDWS system notifies the driver that the vehicle may be deviating from its lane.
The system detects the white or yellow lines on the traffic lane using the forward sensing camera and if it determines that the vehicle may be deviating from its lane, it notifies the driver using the multi-information display (vehicles with type A instrument cluster), and by flashing the LDWS warning light (vehicles with type B instrument cluster) and activating the LDWS warning beep.
Use the LDWS when you drive the vehicle on roads with white or yellow lines.
Refer to Forward Sensing Camera (FSC) (Search).
Vehicles with type A instrument cluster
The LDWS OFF indication illuminates when the system has a malfunction.
Vehicles with type B instrument cluster
The LDWS warning light illuminates when the system has a malfunction.
Refer to Warning/Indicator Lights (Search).
Do not use the LDWS under the following conditions:
The system may not operate adequately according to the actual driving conditions, resulting in an accident.
-
Driving on roads with tight curves.
-
Driving under bad weather conditions (rain, fog, and snow).
The functions of the LDWS have limitations:
Always stay on course using the steering wheel and drive with care. The system is not designed to compensate for a driver's lack of caution and if you rely too much on the LDWS it could lead to an accident. The driver is responsible for assuring lane changes and other maneuvers. Always pay attention to the direction in which the vehicle is traveling and the vehicle's surroundings.
Do not modify the suspension. If the vehicle height or the damping force of the suspensions is changed, the LDWS may not operate correctly.
-
If your vehicle deviates from its traffic lane, the LDWS operates (warning sound and indicator light). Steer the vehicle adequately to drive the vehicle to the center of the lane.
-
When the turn signal lever is operated for a lane change, the LDWS warning is automatically canceled. The LDWS warning becomes operable when the turn signal lever is returned and the system detects the white or yellow lines.
-
If the steering wheel, accelerator pedal, or brake pedal is operated abruptly and the vehicle moves close to a white or yellow line, the system determines that the driver is making a lane change and the LDWS warning is automatically canceled.
-
The LDWS may not operate during the period immediately after the vehicle has deviated from its lane and the LDWS has operated, or the vehicle deviates from its lane repeatedly within a short period of time.
-
The LDWS does not operate if it does not detect the white or yellow lines of the traffic lane.
-
Under the following conditions, the LDWS may not be able to detect white or yellow lines correctly and the LDWS may not operate correctly.
-
If an object placed on the dashboard is reflected in the windshield and picked up by the camera.
-
Heavy luggage is loaded in the luggage compartment or on the rear seat and the vehicle is inclined.
-
The tire pressures are not adjusted to the specified pressure.
-
When the vehicle is driven on the entry and exit to or from the rest area or tollgate of a highway.
-
The white or yellow lines are less visible because of dirt or paint flaking.
-
The vehicle ahead is running near a white or yellow line and the line is less visible.
-
A white or yellow line is less visible because of bad weather (rain, fog, or snow).
-
A misleading line is picked up on the road such as a temporary line for construction, or because of shade, lingering snow, or grooves filled with water.
-
The surrounding brightness suddenly changes such as when entering or exiting a tunnel.
-
The illumination of the headlights is weakened because of dirt or the optical axis is deviated.
-
The windshield is dirty or foggy.
-
Back-light is reflecting from the road surface.
-
The road surface is wet and shiny after rain, or there are puddles on the road.
-
The shade of a guardrail parallel to a white or yellow line is on the road.
-
The width of a lane is excessively narrow or wide.
-
The road is excessively uneven.
-
The vehicle is shaken after hitting a road bump.
-
There are two or more adjacent white or yellow lines.
-
There are various road markings or lane markings of various shapes near an intersection.
-
When the System Operates
-
The system goes on operation standby when the LDWS switch is pressed and the LDWS OFF indication/indicator light turns off.
On the type A instrument cluster, the lane indication (border line) is indicated in the multi-information display.
Indication on display
-
Drive the vehicle in the center of the driving lane while the LDWS OFF indicator light is turned off. The system becomes operational when all of the following conditions are met.
-
The vehicle is driven in the center of the driving lane with the white or yellow lines on the left and right sides, or on either side.
-
The vehicle speed is 65 km/h (41 mph) or faster.
-
The vehicle is driven on a straight road or road with gentle curves.
On the type A instrument cluster, the lane indication is indicated in the multi-information display.
Indication on display
The LDWS does not operate in the following cases:
-
The system cannot detect white or yellow lines.
-
The vehicle speed is less than 60 km/h (37 mph).
-
The vehicle is making a sharp curve.
-
The vehicle is making a curve at an inadequate speed.
-
-
The LDWS does not operate until the system detects a white or yellow line on either the left or right.
-
When the system detects a white or yellow line on one side only, the system will activate the warning only when the vehicle deviates on the side where the white or yellow line is being detected.
-
The distance and warning sensitivity (likelihood of a warning) which the system uses to determine the possibility of a lane departure can be changed.
Refer to Personalization Features (Search).
Auto cancel
In the following cases, the LDWS cancels automatically.
-
The temperature inside the camera is high or low.
-
The windshield around the camera is foggy.
-
The windshield around the camera is blocked by an obstruction, causing poor forward visibility.
When the LDWS cancels automatically, the instrument cluster displays as follows.
Vehicle with type A instrument cluster
The lane indication (border line) is indicated in the display.
The LDWS is enabled automatically when operation conditions are met, and the lane indication is indicated in the display.
Vehicle with type B instrument cluster
The LDWS warning light in the instrument cluster turns on.
The LDWS warning light turns off when the LDWS is operable.
Auto cancel warning
When the following operations are performed, the LDWS determines that the driver intends to make a lane change and the LDWS warning is canceled automatically. The LDWS is enabled automatically after the driver performs the operation.
-
The steering wheel is operated abruptly.
-
The brake pedal is depressed abruptly.
-
The accelerator pedal is depressed abruptly.
-
The turn signal lever is operated (after the turn signal lever is returned, the LDWS may not operate for about 3 seconds which is the period of time required to make a lane correction).
After about 60 seconds have elapsed with the turn signal lever left operating, the LDWS warning may operate if the vehicle is close to a white or yellow line.
Canceling the System

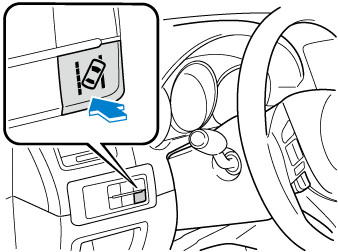

Press the LDWS switch to cancel the LDWS. The LDWS OFF indication/indicator light turns on.
The lane indication displayed in the type A instrument cluster turns off.
LDWS Warning
If the system determines that there is the possibility of a lane departure, the LDWS warning beep activates and the LDWS warning light flashes. (vehicle with type B instrument cluster)
Vehicles with type A instrument cluster, if there is the possibility of a lane departure, the system indicates the direction it determines that the vehicle is deviating in the multi-information display.
Operate the steering wheel appropriately and steer the vehicle to the center of the lane.
Indication on display
-
If the LDWS warning sound is set to rumble*1, the sound will be heard from the vehicle speaker on the side which the system determined the vehicle may be deviating from its lane.
-
It may be difficult to hear the LDWS warning beep depending on the surrounding conditions such as outside noise.
-
The volume of the LDWS warning sound can be changed.
Refer to Personalization Features (Search).
-
The type of warning sound (rumble*1/beep) on the LDWS can be changed.
Refer to Personalization Features (Search).
-
A rumble strip is a series of grooves in the road pavement surface positioned at specific intervals, and when the vehicle passes over it a vibration and rumble sound is produced which alerts the driver that the vehicle is departing from the lane.
The rumble sound is a reproduction of the sound which occurs when a vehicle passes over a rumble strip.
