Maintenance and CareOwner MaintenanceFuses

Fuses

Your vehicle's electrical system is protected by fuses.



If any lights, accessories, or controls do not work, inspect the appropriate circuit protector. If a fuse has blown, the inside element will be melted.



If the same fuse blows again, avoid using that system and consult an Authorized Mazda Dealer as soon as possible.

Maintenance and CareOwner MaintenanceFuses

Fuse Replacement

Replacing the fuses on the vehicle's left side

If the electrical system does not work, first inspect the fuses on the vehicle's left side.



  1. Make sure the ignition is switched off, and other switches are off.

  2. Open the fuse panel cover.

  3. Pull the fuse straight out with the fuse puller provided on the fuse block located in the engine compartment.

  4. Inspect the fuse and replace it if it is blown.

  5. Insert a new fuse of the same amperage rating, and make sure it fits tightly. If it does not fit tightly, have an expert install it. We recommend an Authorized Mazda Dealer.

    If you have no spare fuses, borrow one of the same rating from a circuit not essential to vehicle operation, such as the AUDIO or OUTLET circuit.



    Always replace a fuse with a genuine Mazda fuse or equivalent of the same rating. Otherwise you may damage the electric system.

    Close Caution

  6. Reinstall the cover and make sure that it is securely installed.

Replacing the fuses under the hood

If the headlights or other electrical components do not work and the fuses in the cabin are normal, inspect the fuse block under the hood. If a fuse is blown, it must be replaced. Follow these steps:



  1. Make sure the ignition is switched off, and other switches are off.

  2. Remove the fuse block cover.

  3. If any fuse but the MAIN fuse is blown, replace it with a new one of the same amperage rating.



    Do not replace the main fuse and multiplex slow blow fuse by yourself. Have an Authorized Mazda Dealer perform the replacement:

    Replacing these fuses by yourself is dangerous because they are high current fuses. Incorrect replacement could cause an electrical shock or a short circuit resulting in a fire.

    Close Warning

  4. Reinstall the cover and make sure that it is securely installed.

Maintenance and CareOwner MaintenanceFuses

Fuse Panel Description

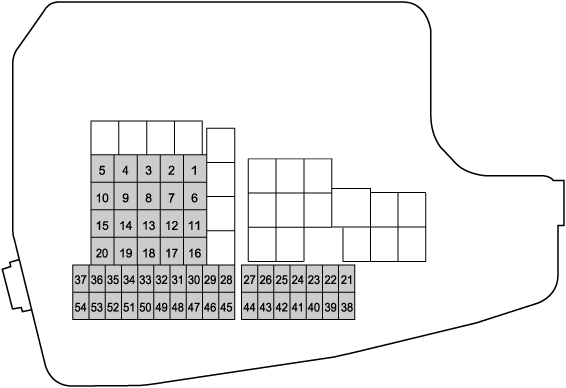

Fuse block (Engine compartment)

DESCRIPTION

FUSE RATING

PROTECTED COMPONENT

1

ADD FAN GE

30 A

Cooling fan

2

IG2

30 A

For protection of various circuits

3

INJECTOR

30 A

Engine control system

4

FAN DE

40 A

―

5

P.WINDOW1

30 A

Power windows

6

―

―

―

7

ADD FAN DE

40 A

―

8

EVVT

20 A

Engine control system

9

DEFOG

40 A

Rear window defogger

10

DCDC DE

40 A

―

11

FAN GE

30 A

Cooling fan

12

EPB L

20 A

Electric parking brake (LH)

13

AUDIO

40 A

Audio system

14

EPB R

20 A

Electric parking brake (RH)

15

ENG.MAIN

40 A

Engine control system

16

ABS/DSC M

50 A

ABS, Dynamic stability control system

17

50 A

For protection of various circuits

18

WIPER

20 A

Front window wiper and washer

19

HEATER

40 A

Air conditioner

20

DCDC REG

30 A

―

21

ENGINE.IG1

7.5 A

Engine control system

22

C/U IG1

15 A

For protection of various circuits

23

H/L LOW L

HID L

15 A

Headlight low beam (LH)

24

H/L LOW R

15 A

Headlight low beam (RH)

25

ENGINE3

15 A

Engine control system

26

ENGINE2

15 A

Engine control system

27

ENGINE1

15 A

Engine control system

28

AT

15 A

Transaxle control system (Some Models), Ignition switch

29

H/CLEAN

20 A

―

30

A/C

7.5 A

Air conditioner

31

AT PUMP

15 A

Transaxle control system (Some Models)

32

STOP

10 A

Brake lights

33

R.WIPER

15 A

Rear window wiper

34

H/L HI

20 A

Headlight high beam

35

HID R

15 A

―

36

FOG

15 A

Fog lights (Some Models)

37

7.5 A

Engine control system

38

AUDIO2

7.5 A

Audio system

39

GLOW SIG

5 A

―

40

METER2

7.5 A

―

41

METER1

10 A

Instrument cluster

42

SRS1

7.5 A

Air bag

43

BOSE

25 A

Bose® Sound System-equipped model (Some Models)

44

AUDIO1

15 A

Audio system

45

ABS/DSC S

30 A

ABS, Dynamic stability control system

46

FUEL PUMP

15 A

Fuel system

47

FUEL WARM

25 A

―

48

TAIL

15 A

Taillights, License plate lights

49

FUEL PUMP2

25 A

―

50

HAZARD

25 A

Hazard warning flashers, Turn signal lights, Parking lights (Front side-marker lights)

51

DRL

15 A

Daytime running lights (Some Models)

52

R.OUTLET2

15 A

Accessory sockets

53

HORN

15 A

Horn

54

ROOM

15 A

Overhead light

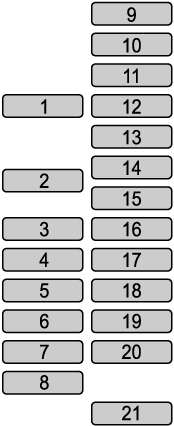

Fuse block (Left side)

DESCRIPTION

FUSE RATING

PROTECTED COMPONENT

1

P.SEAT D

30 A

Power seat (Some Models)

2

P.WINDOW3

30 A

―

3

R.OUTLET3

15 A

Accessory sockets

4

P.WINDOW2

25 A

Power windows

5

SRS2/ESCL

15 A

―

6

D.LOCK

25 A

Power door locks

7

SEAT WARM

20 A

Seat warmer (Some Models)

8

SUNROOF

10 A

Moonroof (Some Models)

9

F.OUTLET

15 A

Accessory sockets

10

MIRROR

7.5 A

Power control mirror

11

R.OUTLET1

15 A

―

12

―

―

―

13

―

―

―

14

―

―

―

15

―

―

―

16

―

―

―

17

M.DEF

7.5 A

Mirror defogger (Some Models)

18

―

―

―

19

―

―

―

20

AT IND

7.5 A

AT shift indicator (Some Models)

21

P.SEAT P

30 A

Power seat (Some Models)
