Instrument Cluster and Display

When the lights are turned on with the ignition switched ON, the brightness of the dashboard illumination is dimmed. However, when the light sensor detects that the surrounding area is bright such as when the lights are turned on in the daytime, the dashboard illumination does not dim.



---

• When the ignition is switched ON in the early evening or at dusk, the dashboard illumination is dimmed for several seconds until the light sensor detects the brightness of the surrounding area, however, the dimming may cancel after the brightness is detected.

• When the lights are turned on, the lights-on indicator light in the instrument cluster turns on.

  Refer to Headlights (Search).

Close Note

View Note

The brightness of the instrument cluster and dashboard illuminations can be adjusted by rotating the knob.

• The brightness decreases by rotating the knob to the left. A beep sound will be heard when the knob has been rotated to the maximum dim position.

• The brightness increases by rotating the knob to the right.

Function for canceling illumination dimmer

The illumination dimmer can be canceled by rotating the dashboard illumination knob to the right until a beep sound is heard while the instrument cluster is dimmed with the ignition switched ON. If the instrument cluster's visibility is reduced due to glare from surrounding brightness, cancel the illumination dimmer.



---

• When the illumination dimmer is canceled, the instrument cluster cannot be dimmed even if the lights are turned on.

• When the illumination dimmer is canceled, the screen in the center display switches to constant display of the daytime screen.

Close Note

View Note

When the ignition is switched ON, the outside temperature is displayed.



---

• Under the following conditions, the outside temperature display may differ from the actual outside temperature depending on the surroundings and vehicle conditions:

  • Significantly cold or hot temperatures.

  • Sudden changes in outside temperature.

  • The vehicle is parked.

  • The vehicle is driven at low speeds.

Close Note

View Note

Changing the Temperature Unit of the Outside Temperature Display

The outside temperature unit can be switched between Celsius and Fahrenheit.

Settings can be changed by operating the center display screen.

Refer to Personalization Features (Search).



---

When the temperature unit indicated in the outside temperature display is changed, the temperature unit indicated in the engine coolant gauge display changes in conjunction with it.

Close Note

View Note

Displays the system status.

Refer to Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) (Search).

The speedometer indicates the speed of the vehicle.

The multi-information display indicates the following information.

• Odometer

• Trip meter

• Engine coolant temperature gauge

• Fuel gauge

• Outside temperature

• Distance-to-empty

• Average fuel economy

• Current fuel economy

• Maintenance Monitor

• Blind Spot Monitoring (BSM) Display

• Distance Recognition Support System (DRSS) Display

• Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) System Display

• Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Display

• Cruise Control Display

• Compass Display

• Warning message

The screen content changes each time the INFO switch is pressed.

The fuel gauge shows approximately how much fuel is remaining in the tank when the ignition is switched ON. We recommend keeping the tank over 1/4 full.

If the fuel level is low, () and () turn an amber color. Refuel as soon as possible.

Refer to Taking Action (Search).



---

• After refueling, it may require some time for the indicator to stabilize. In addition, the indicator may deviate while driving on a slope or curve since the fuel moves in the tank.

• The direction of the arrow () indicates that the fuel-filler lid is on the left side of the vehicle.

Close Note

View Note

The following maintenance period notifications can be displayed by turning the Maintenance Monitor on.

• Scheduled Maintenance

• Tire Rotation

• Oil Change

When the remaining days to the maintenance period is 15 days or less, or the remaining distance is 1,000 km (600 miles) or shorter, a message is indicated when the ignition is switched ON.

For the setting method and indications for the maintenance monitor, refer to the Maintenance Monitor.

Refer to Maintenance Monitor (Search).

Displays the system status.

Refer to Blind Spot Monitoring (BSM) (Search).

The direction the vehicle is moving is displayed in one of eight directions while the vehicle is being driven.

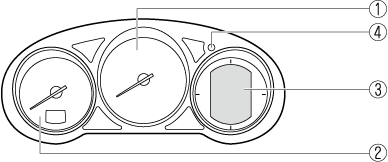

Instrument Cluster varies depending on model and specifications.

The light illuminates continuously when the engine coolant temperature is low and turns off after the engine is warm.
