Instrument Cluster and Display

This displays the current fuel economy by calculating the amount of fuel consumption and the distance traveled.

The average fuel economy for TRIP A is indicated by a blue arrow.



---

Indicates the 0 position when the vehicle speed is about 5 km/h (3 mph) or slower.

Close Note

View Note

Displays the system status.

Refer to Blind Spot Monitoring (BSM) (Search).

The vehicle speed preset using the cruise control is displayed.

Refer to Cruise Control (Search).

The speedometer indicates the speed of the vehicle.

(Without auto-light control)

When the lights are turned on with the ignition switched ON, the brightness of the dashboard illumination is dimmed.

(With auto-light control)

When the lights are turned on with the ignition switched ON, the brightness of the dashboard illumination is dimmed. However, when the light sensor detects that the surrounding area is bright such as when the lights are turned on in the daytime, the dashboard illumination does not dim.



---

• (With auto-light control)

  When the ignition is switched ON in the early evening or at dusk, the dashboard illumination is dimmed for several seconds until the light sensor detects the brightness of the surrounding area, however, the dimming may cancel after the brightness is detected.

• When the lights are turned on, the lights-on indicator light in the instrument cluster turns on.

  Refer to Headlights (Search).

Close Note

View Note

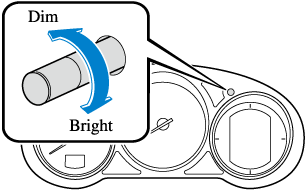

The brightness of the instrument cluster and dashboard illuminations can be adjusted by rotating the knob.

• The brightness decreases by rotating the knob to the left. A beep sound will be heard when the knob has been rotated to the maximum dim position.

• The brightness increases by rotating the knob to the right.

Function for canceling illumination dimmer

The illumination dimmer can be canceled by rotating the dashboard illumination knob to the right until a beep sound is heard while the instrument cluster is dimmed with the ignition switched ON. If the instrument cluster's visibility is reduced due to glare from surrounding brightness, cancel the illumination dimmer.



---

• The illumination dimmer can be canceled by pressing the dashboard illumination knob.

• When the illumination dimmer is canceled, the instrument cluster cannot be dimmed even if the lights are turned on.

• When the illumination dimmer is canceled, the screen in the center display switches to constant display of the daytime screen.

Close Note

View Note

When the ignition is switched ON, the outside temperature is displayed.



---

• Under the following conditions, the outside temperature display may differ from the actual outside temperature depending on the surroundings and vehicle conditions:

  • Significantly cold or hot temperatures.

  • Sudden changes in outside temperature.

  • The vehicle is parked.

  • The vehicle is driven at low speeds.

Close Note

View Note

Changing the Temperature Unit of the Outside Temperature Display

The outside temperature unit can be switched between Celsius and Fahrenheit.

Settings can be changed by operating the center display screen.

Refer to Personalization Features (Search).



---

When the temperature unit indicated in the outside temperature display is changed, the temperature unit indicated in the engine coolant gauge display changes in conjunction with it.

Close Note

View Note

Displays the distance between your vehicle and the vehicle ahead.

Refer to Distance Recognition Support System (DRSS) (Search).

These lights turn on or flash to notify the user of the system operation status or a system malfunction.

Signal	Warning	Page
	Brake System Warning Indication/Warning Light*1*2	(Search)
	ABS Warning Light*1	Electronic Brake Force Distribution System Warning (Search)
		ABS warning (Search)
	Charging System Warning Indication/Warning Light*1	(Search)
	Engine Oil Warning Light*1	(Search)
(Red)	High Engine Coolant Temperature Warning Light*1	(Search)
	Power Steering Malfunction Indication	(Search)
	Master Warning Indication	(Search)
	Electric Parking Brake (EPB) Warning Indication/Warning Light*1	(Search)
	Check Engine Light*1	(Search)
	Automatic Transaxle Warning Indication	(Search)
	AWD Warning Indication (Some Models)	(Search)
	Air Bag/Front Seat Belt Pretensioner System Warning Light*1	(Search)
	Tire Pressure Monitoring System Warning Light*1 (Some Models)	Flashing (Search)
		Turns on (Search)
(Amber/White)	KEY Warning Indication	Amber (Search)
		White (Search)
(Amber)	High Beam Control System (HBC) Warning Indication/Warning Light*1 (Some Models)	(Search)
	Blind Spot Monitoring (BSM) Warning Indication (Some Models)	(Search)
(Amber)	Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Warning Indication (Some Models)	(Search)
	Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Warning Indication (Some Models)	(Search)
	LED Headlight Warning Light*1	(Search)
(Amber)	Smart Brake Support/Smart City Brake Support (SBS/SCBS) Warning Indication (Some Models)	(Search)
	Low Fuel Warning Indication	(Search)
	Check Fuel Cap Warning Indication/Warning Light*1	(Search)
	Engine Oil Level Warning Light*1	(Search)
	Seat Belt Warning Light (Front seat)	(Search)
	Seat Belt Warning Light (Rear seat) (Some Models)	(Search)
	Low Washer Fluid Level Warning Indication (Some Models)	(Search)
	Door-Ajar Warning Indication	(Search)
	Liftgate-Ajar Warning Indication	(Search)

1. The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an Authorized Mazda Dealer.

2. The light turns on continuously when the parking brake is applied.
