Instrument Cluster and Display

The speedometer indicates the speed of the vehicle.

The odometer is constantly displayed on the screen when the ignition is switched ON, and the TRIP A or TRIP B screen can be displayed by operating the INFO switch.

Odometer

The odometer records the total distance the vehicle has been driven.

Trip meter

The driving distance for a specified interval is indicated. Two types (TRIP A, TRIP B) of interval distance and the average fuel economy for each can be measured.

For instance, trip meter A can record the distance from the point of origin, and trip meter B can record the distance from where the fuel tank is filled.

When trip meter A is selected, TRIP A will be displayed. When trip meter B is selected, TRIP B will be displayed.

The trip meter and average fuel economy can be reset by pressing the INFO switch for 1.5 seconds or more while in each mode.



---

• Only the trip meters record tenths of kilometers (miles).

• The trip record will be erased when:

  • The power supply is interrupted (blown fuse or the battery is disconnected).

  • The vehicle is driven over 9999.9 km (mile).

Close Note

View Note

A message such as the system operation status, a malfunction, or an abnormality is indicated.

Warning/indicator light in instrument cluster turns on/flashes or symbol is indicated on display at same time as message

Check the information regarding the warning/indicator light or indicated symbol.

Refer to If a Warning Indication/Warning Lights (Search).

Refer to If a Indication/Indicator Lights (Search).

Message only is indicated on display

Follow the instructions indicated on the display. For the display content, refer to the next page.

Refer to If a Message Indicated on Multi-information Display (Search).

(Without auto-light control)

When the lights are turned on with the ignition switched ON, the brightness of the dashboard illumination is dimmed.

(With auto-light control)

When the lights are turned on with the ignition switched ON, the brightness of the dashboard illumination is dimmed. However, when the light sensor detects that the surrounding area is bright such as when the lights are turned on in the daytime, the dashboard illumination does not dim.



---

• (With auto-light control)

  When the ignition is switched ON in the early evening or at dusk, the dashboard illumination is dimmed for several seconds until the light sensor detects the brightness of the surrounding area, however, the dimming may cancel after the brightness is detected.

• When the lights are turned on, the lights-on indicator light in the instrument cluster turns on.

  Refer to Headlights (Search).

Close Note

View Note

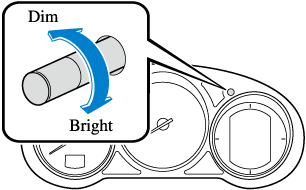

The brightness of the instrument cluster and dashboard illuminations can be adjusted by rotating the knob.

• The brightness decreases by rotating the knob to the left. A beep sound will be heard when the knob has been rotated to the maximum dim position.

• The brightness increases by rotating the knob to the right.

Function for canceling illumination dimmer

The illumination dimmer can be canceled by rotating the dashboard illumination knob to the right until a beep sound is heard while the instrument cluster is dimmed with the ignition switched ON. If the instrument cluster's visibility is reduced due to glare from surrounding brightness, cancel the illumination dimmer.



---

• When the illumination dimmer is canceled, the instrument cluster cannot be dimmed even if the lights are turned on.

• When the illumination dimmer is canceled, the screen in the center display switches to constant display of the daytime screen.

Close Note

View Note

When the ignition is switched ON, the outside temperature is displayed.



---

• Under the following conditions, the outside temperature display may differ from the actual outside temperature depending on the surroundings and vehicle conditions:

  • Significantly cold or hot temperatures.

  • Sudden changes in outside temperature.

  • The vehicle is parked.

  • The vehicle is driven at low speeds.

Close Note

View Note

Changing the Temperature Unit of the Outside Temperature Display

The outside temperature unit can be switched between Celsius and Fahrenheit.

Settings can be changed by operating the center display screen.

Refer to the Settings section in the Mazda Connect Owner's Manual.



---

When the temperature unit indicated in the outside temperature display is changed, the temperature unit indicated in the engine coolant gauge display changes in conjunction with it.

Close Note

View Note

The following information can be selected by pressing the INFO switch with the ignition switched ON.

• Distance-to-empty mode

• Average fuel economy mode

• Current fuel economy mode

• Compass mode

If you have any problems with your trip computer, consult an Authorized Mazda Dealer.

Distance-to-empty mode

This mode displays the approximate distance you can travel on the remaining fuel based on the fuel economy.

The distance-to-empty will be calculated and displayed every second.



---

• Even though the distance-to-empty display may indicate a sufficient amount of remaining driving distance before refueling is required, refuel as soon as possible if the fuel level is very low or the low fuel warning light illuminates.

• The display may not change unless you add more than approximately 9 L (2.3 US gal, 1.9 Imp gal) of fuel.

• The distance-to-empty is the approximate remaining distance the vehicle can be driven until all the graduation marks in the fuel gauge (indicating the remaining fuel supply) disappear.

• If there is no past fuel economy information such as after first purchasing your vehicle or the information is deleted when the battery cables are disconnected, the actual distance-to empty/range may differ from the amount indicated.

Close Note

View Note

Average fuel economy mode

This mode displays the average fuel economy by calculating the total traveled distance and the total fuel consumption since the vehicle was purchased or the past data was reset. The average fuel economy is calculated and displayed every minute.

To reset the displayed past data, press the INFO switch for 1.5 seconds or longer.

After resetting the data, - - - L/100 km (- - - mpg) is displayed for one minute before the fuel economy is recalculated and displayed.



---

If TRIP A is reset using the trip meter when the function which synchronizes (resets) the fuel economy monitor and the trip meter (TRIP A) is on, the displayed past data is reset.

Close Note

View Note

Current fuel economy mode

This mode displays the current fuel economy by calculating the amount of fuel consumption and the distance traveled.

Current fuel economy will be calculated and displayed every 2 seconds.

When you've slowed to about 5 km/h (3 mph), - - - L/100 km (- - - mpg) will be displayed.

Compass mode

The direction the vehicle is moving is displayed in one of eight directions while the vehicle is being driven.

The vehicle speed preset using the cruise control is displayed.

Refer to Cruise Control (Search).

Instrument Cluster varies depending on model and specifications.

These lights turn on or flash to notify the user of the system operation status or a system malfunction.

Signal	Warning	Page
	Brake System Warning Light*1*2	(Search)
	ABS Warning Light*1	Electronic Brake Force Distribution System Warning (Search)
		ABS warning (Search)
	Charging System Warning Light*1	(Search)
	Engine Oil Warning Light*1	(Search)
	Power Steering Malfunction Indicator Light*1	(Search)
	Master Warning Light*1	(Search)
	Electric Parking Brake (EPB) Warning Light*1	(Search)
(Red)	Brake Pedal Operation Demand Warning Light*1	Flashing (Search)
		Buzzer & Flashing (Search)
	Check Engine Light*1	(Search)
	Automatic Transaxle Warning Light*1	(Search)
	AWD Warning Light (Some Models)	(Search)
	Air Bag/Front Seat Belt Pretensioner System Warning Light*1	(Search)
	Tire Pressure Monitoring System Warning Light*1	Flashing (Search)
		Turns on (Search)
(Red)	KEY Warning Light*1	Turns on (Search)
		Flashing (Search)
	LED Headlight Warning Light*1	(Search)
(Amber)	Smart City Brake Support (SCBS) Warning Light*1 (Some Models)	(Search)
	Low Fuel Warning Light	(Search)
	Check Fuel Cap Warning Light*1	(Search)
	Engine Oil Level Warning Light*1	(Search)
	Seat Belt Warning Light (Front seat)	(Search)
(Red)	Seat Belt Warning Light (Rear seat)	(Search)
	Low Washer Fluid Level Warning Light (Some Models)	(Search)
	Door-Ajar Warning Light	(Search)

1. The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an Authorized Mazda Dealer.

2. The light turns on continuously when the parking brake is applied.
