Instrument Cluster and Display

Instrument Cluster (Type A)

Odometer, Trip Meter and Trip Meter Selector

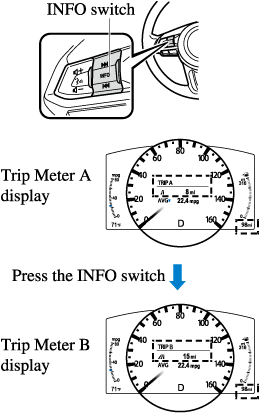

The odometer is constantly displayed on the screen when the ignition is switched ON, and the TRIP A or TRIP B screen can be displayed by operating the INFO switch.



Odometer

The odometer records the total distance the vehicle has been driven.

Trip meter

The driving distance for a specified interval is indicated. Two types (TRIP A, TRIP B) of interval distance and the average fuel economy for each can be measured.



For instance, trip meter A can record the distance from the point of origin, and trip meter B can record the distance from where the fuel tank is filled.



When trip meter A is selected, TRIP A will be displayed. When trip meter B is selected, TRIP B will be displayed.



The trip meter and average fuel economy can be reset by pressing the INFO switch for 1.5 seconds or more while in each mode.



  • Only the trip meters record tenths of kilometers (miles).

  • The trip record will be erased when:

    • The power supply is interrupted (blown fuse or the battery is disconnected).

    • The vehicle is driven over 9999.9 km (mile).

Close Note
View Note
Instrument Cluster (Type B)

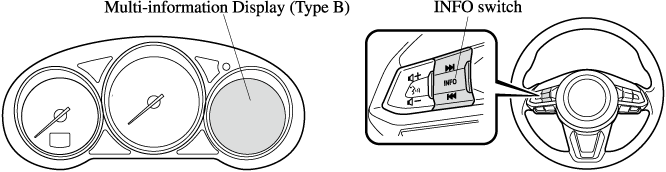

Multi-information Display (Type B)

The multi-information display indicates the following information.

  • Odometer

  • Trip meter

  • Engine coolant temperature gauge

  • Fuel gauge

  • Outside temperature

  • Distance-to-empty

  • Average fuel economy

  • Current fuel economy

  • Maintenance Monitor (Except SKYACTIV-D 2.2)

  • Remaining Diesel Exhaust Fluid (DEF) and Maximum Driving Distance Display (SKYACTIV-D 2.2)

  • Blind Spot Monitoring (BSM) Display

  • Distance Recognition Support System (DRSS) Display

  • Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) System Display

  • Lane Departure Warning System (LDWS) Display

  • Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Display

  • Cruise Control Display

  • Compass Display

  • Message Display

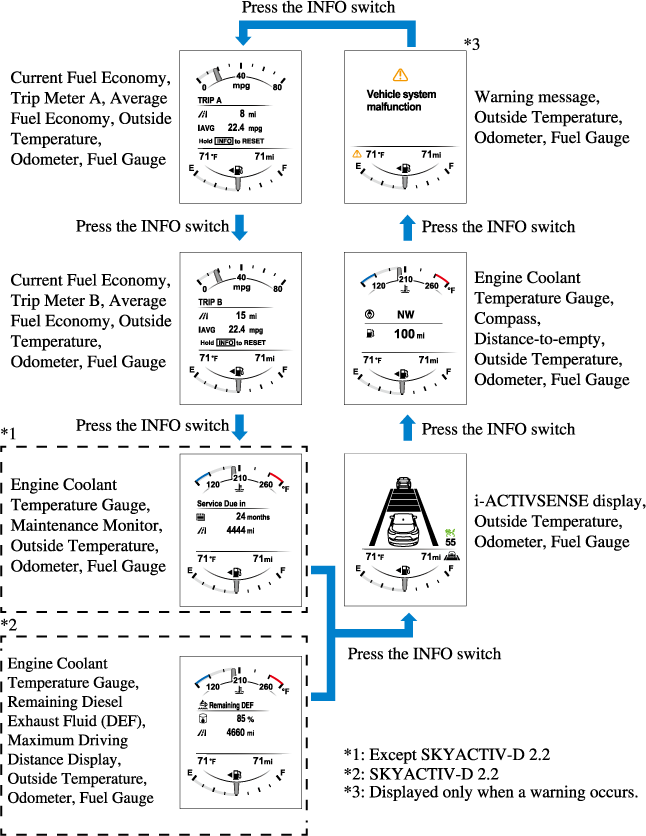

The screen content changes each time the INFO switch is pressed.

Outside Temperature Display

When the ignition is switched ON, the outside temperature is displayed.





  • Under the following conditions, the outside temperature display may differ from the actual outside temperature depending on the surroundings and vehicle conditions:

    • Significantly cold or hot temperatures.

    • Sudden changes in outside temperature.

    • The vehicle is parked.

    • The vehicle is driven at low speeds.

Close Note
View Note

Changing the Temperature Unit of the Outside Temperature Display

The outside temperature unit can be switched between Celsius and Fahrenheit.

Settings can be changed by operating the center display screen.

Refer to the Settings section in the Mazda Connect Owner's Manual.



When the temperature unit indicated in the outside temperature display is changed, the temperature unit indicated in the engine coolant gauge display changes in conjunction with it.

Close Note
View Note

Maintenance Monitor (Except SKYACTIV-D 2.2)

The following maintenance period notifications can be displayed by turning the Maintenance Monitor on.

  • Scheduled Maintenance

  • Tire Rotation

  • Oil Change

When the remaining days to the maintenance period is 15 days or less, or the remaining distance is 1,000 km (600 miles) or shorter, a message is indicated when the ignition is switched ON.

For the setting method and indications for the maintenance monitor, refer to the Maintenance Monitor.

Refer to the Information section in the Mazda Connect Owner's Manual.

Remaining Diesel Exhaust Fluid (DEF) and Maximum Driving Distance Display (SKYACTIV-D 2.2)

The remaining amount of DEF and the remaining-distance-to-empty indications are displayed when the ignition is switched ON.



If the remaining amount of DEF is low or there is a problem with the Selective Catalytic Reduction (SCR) system and there is less maximum remaining driving distance, the remaining-distance-to-empty indication is continuously displayed.



If the remaining amount of DEF is low or there is a problem with the SCR system, the SCR warning light turns on/flashes and a warning message is displayed.

Refer to Selective Catalytic Reduction (SCR) System Indications (Search).

Cruise Control Set Vehicle Speed Display (Some Models)

The vehicle speed preset using the cruise control is displayed.



Refer to Cruise Control (Search).

Message Display

A message such as the system operation status, a malfunction, or an abnormality is indicated.

Warning/indicator light in instrument cluster turns on/flashes or symbol is indicated on display at same time as message

Check the information regarding the warning/indicator light or indicated symbol.

Refer to If a Warning Indication/Warning Lights (Search).

Refer to If a Indication/Indicator Lights (Search).

Message only is indicated on display

Follow the instructions indicated on the display. For the display content, refer to the next page.

Refer to If a Message Indicated on Multi-information Display (Search).

Warning Indication/Warning Lights

These lights turn on or flash to notify the user of the system operation status or a system malfunction.

Signal

Warning

Page

Brake System Warning Indication/Warning Light*1*2

 (Search)

ABS Warning Light*1

Electronic Brake Force Distribution System Warning

(Search)

ABS warning

(Search)

Charging System Warning Indication/Warning Light*1

 (Search)

Engine Oil Warning Light*1

 (Search)

(Red)

High Engine Coolant Temperature Warning Light*1

 (Search)

Power Steering Malfunction Indication

 (Search)

Master Warning Indication/Warning Light

 (Search)

Electric Parking Brake (EPB) Warning Indication/Warning Light*1

 (Search)

Check Engine Light*1

 (Search)

Selective Catalytic Reduction (SCR) system Warning Indication/Warning Light*1 (Some Models)

 (Search)

Automatic Transaxle Warning Indication

 (Search)

AWD Warning Indication (Some Models)

 (Search)

Air Bag/Front Seat Belt Pretensioner System Warning Light*1

 (Search)

Tire Pressure Monitoring System Warning Light*1

Flashing

(Search)

Turns on

(Search)

(Amber/White)

KEY Warning Indication

Amber

(Search)

White

(Search)

(Amber)

High Beam Control System (HBC) Warning Indication/Warning Light*1

 (Search)

Blind Spot Monitoring (BSM) Warning Indication

 (Search)

(Amber)

Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Warning Indication (Some Models)

 (Search)

Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Warning Indication (Some Models)

 (Search)

LED Headlight Warning Light*1

 (Search)

Smart Brake Support/Smart City Brake Support (SBS/SCBS) Warning Indication (Some Models)

 (Search)

Low Fuel Warning Indication

 (Search)

Check Fuel Cap Warning Indication/Warning Light*1

 (Search)

Engine Oil Level Warning Light*1

 (Search)

Seat Belt Warning Light (Front seat)

 (Search)

(Red)

Seat Belt Warning Light (Rear seat)

 (Search)

Low Washer Fluid Level Warning Indication (Some Models)

 (Search)

Door-Ajar Warning Indication

 (Search)

Liftgate-Ajar Warning Indication

 (Search)
