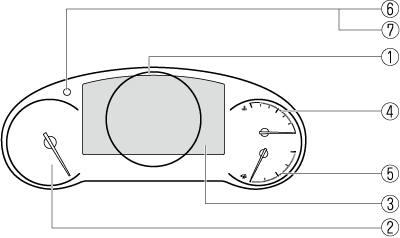

Instrument Cluster and Display

When the tachometer needle enters the STRIPED ZONE, this indicates to the driver that the gears should be shifted before entering the RED ZONE.

Odometer, Trip Meter and Trip Meter Selector

The odometer is constantly displayed on the screen when the ignition is switched ON, and the TRIP A or TRIP B screen can be displayed by operating the INFO switch.

Odometer

The odometer records the total distance the vehicle has been driven.

Trip meter

The driving distance for a specified interval is indicated. Two types (TRIP A, TRIP B) of interval distance and the average fuel economy for each can be measured.

For instance, trip meter A can record the distance from the point of origin, and trip meter B can record the distance from where the fuel tank is filled.

When trip meter A is selected, TRIP A will be displayed. When trip meter B is selected, TRIP B will be displayed.

The trip meter and average fuel economy can be reset by pressing the INFO switch for 1.5 seconds or more while in each mode.

Only the trip meters record tenths of kilometers (miles).
The trip record will be erased when:
- The power supply is interrupted (blown fuse or the battery is disconnected).
- The vehicle is driven over 9999.9 km (mile).

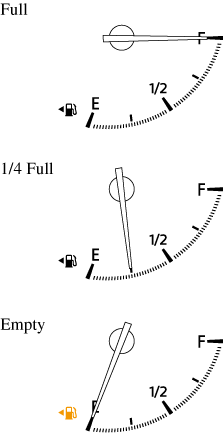

Fuel Gauge

The fuel gauge shows approximately how much fuel is remaining in the tank when the ignition is switched ON. We recommend keeping the tank over 1/4 full.

If the low fuel warning light illuminates or the fuel level is very low, refuel as soon as possible.

If inconsistency in engine performance or stalling occurs due to low fuel level conditions, refuel the vehicle as soon as possible and add at least 10 L (2.7 US gal, 2.2 Imp gal) of fuel.

Refer to Taking Action (Search).

After refueling, it may require some time for the indicator to stabilize. In addition, the indicator may deviate while driving on a slope or curve since the fuel moves in the tank.
The direction of the arrow () indicates that the fuel-filler lid is on the left side of the vehicle.

Speed Unit Selector

In some countries, you may have to change the speed units between km/h and mph.

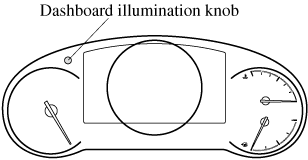

When pressing the dashboard illumination knob, the speed units in the instrument cluster will change.

Distance-to-empty

This displays the approximate distance you can travel on the remaining fuel based on the fuel economy.

The distance-to-empty will be calculated and displayed every second.

Even though the distance-to-empty display may indicate a sufficient amount of remaining driving distance before refueling is required, refuel as soon as possible if the fuel level is very low or the low fuel warning light illuminates.
The display will not change unless you add more than approximately 9 L (2.3 US gal, 1.9 Imp gal) of fuel.
The distance-to-empty is the approximate remaining distance the vehicle can be driven until all the graduation marks in the fuel gauge indicating the remaining fuel supply disappear.
If there is no past fuel economy information such as after first purchasing your vehicle or the information is deleted when the battery cables are disconnected, the actual distance-to empty/range may differ from the amount indicated.

Current Fuel Economy

This displays the current fuel economy by calculating the amount of fuel consumption and the distance traveled.

Indicates the 0 position when the vehicle speed is about 5 km/h (3 mph) or slower.
The arrow on the scale indicates the average fuel economy.

Instrument Cluster (Type B)

Mazda intelligent Drive Select (Mi-Drive) Display

The display changes depending on the driving mode.

Sport mode

Off-road mode (Some Models)

Blind Spot Monitoring (BSM) Display

Displays the system status.

Refer to Blind Spot Monitoring (BSM) (Search).

Cruise Control Set Vehicle Speed Display (Some Models)

The vehicle speed preset using the cruise control is displayed.

Refer to Cruise Control (Search).

Warning/Indicator Lights

Instrument Cluster varies depending on model and specifications.

Warning Indication/Warning Lights

These lights turn on or flash to notify the user of the system operation status or a system malfunction.

Signal	Warning	Page
	Brake System Warning Indication/Warning Light^12	(Search)
	ABS Warning Light^*1	Electronic Brake Force Distribution System Warning (Search)
	ABS Warning Light^*1	ABS warning (Search)
	Charging System Warning Indication/Warning Light^*1	(Search)
	Engine Oil Warning Light^*1	(Search)
	High Engine Coolant Temperature Warning Indication	(Search)
	Power Steering Malfunction Indication	(Search)
	Master Warning Indication/Warning Light	(Search)
	Electric Parking Brake (EPB) Warning Indication/Warning Light^*1	(Search)
	Check Engine Light^*1	(Search)
(Amber)	i-stop Warning Light^*1 (Some Models)	(Search)
	Automatic Transaxle Warning Indication	(Search)
	AWD Warning Indication (Some Models)	(Search)
	Air Bag/Seat Belt Pretensioner System Warning Light^*1	(Search)
	Tire Pressure Monitoring System Warning Light^*1	Flashing (Search)
	Tire Pressure Monitoring System Warning Light^*1	Turns on (Search)
(Amber/White)	KEY Warning Indication	Amber (Search)
(Amber/White)	KEY Warning Indication	White (Search)
(Amber)	High Beam Control System (HBC) Warning Indication/Warning Light^*1 (Some Models)	(Search)
	Blind Spot Monitoring (BSM) Warning Indication (Some Models)	(Search)
(Amber)	Driver Attention Alert (DAA) Warning Indication (Some Models)	(Search)
(Amber)	Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Warning Indication (Some Models)	(Search)
	Traffic Jam Assist (TJA) Warning Indication (Some Models)	(Search)
	Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Warning Indication (Some Models)	(Search)
	LED Headlight Warning Light^*1	(Search)
	Smart Brake Support/Smart City Brake Support (SBS/SCBS) Warning Indication (Some Models)	(Search)
	Low Fuel Warning Indication/Warning Light	(Search)
	Check Fuel Cap Warning Indication/Warning Light^*1	(Search)
	Engine Oil Level Warning Light^*1	(Search)
	Seat Belt Warning Light (Front seat)	(Search)
(Red)	Seat Belt Warning Light (Rear seat)	(Search)
	Low Washer Fluid Level Warning Indication (Some Models)	(Search)
	Door-Ajar Warning Indication	(Search)
	Liftgate-Ajar Warning Indication	(Search)
	Hood-Ajar Warning Indication (With i-stop)	(Search)
	Door-Ajar Warning Light	(Search)

The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an Authorized Mazda Dealer.
The light turns on continuously when the parking brake is applied.

Indication/Indicator Lights

These lights turn on or flash to notify the user of the system operation status or a system malfunction.

Signal	Indicator	Page
(Green)	Seat Belt Indicator Light (Rear seat)	(Search)
	Front Passenger Air Bag Deactivation Indicator Light^*1 (Some Models)	(Search)
	Security Indicator Light^*1	(Search)
(Green)	i-stop Indicator Light (Some Models)	(Search)
	Wrench Indication	(Search)
	Shift Position Indication	(Search)
	Lights-On Indication/Indicator Light	(Search)
	Headlight High-Beam Indicator Light	Headlight High-Low Beam (Search)
	Headlight High-Beam Indicator Light	Flashing the Headlights (Search)
	Turn Signal/Hazard Warning Indicator Lights	Turn and Lane-Change Signals (Search)
	Turn Signal/Hazard Warning Indicator Lights	Hazard Warning Flasher (Search)
	AUTOHOLD Active Indicator Light^*1	(Search)
	Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) indicator Light (Some Models)	(Search)
	Traffic Jam Assist (TJA) indicator Light (Some Models)	(Search)
	TCS/DSC Indicator Light^*1	Traction Control System (TCS) (Search)
		Dynamic Stability Control (DSC) (Search)
		Turns on (Search)
	TCS OFF Indicator Light^*1 (Some Models)	(Search)
	Off-Road Traction Assist Indicator Light^*1 (Some Models)	(Search)
	Select Mode Indication	(Search)
(Green)	High Beam Control System (HBC) Indicator Light (Some Models)	(Search)
	Blind Spot Monitoring (BSM) OFF Indicator Light^*1 (Some Models)	Malfunction (Search)
		Except malfunction (Search)
(White)	Driver Attention Alert (DAA) Indication (Some Models)	(Search)
(White)	Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Main Indication (Some Models)	(Search)
(White)	Traffic Jam Assist (TJA) Main Indication (Some Models)	(Search)
(Green)	Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Set Indication (Some Models)	(Search)
(Green)	Traffic Jam Assist (TJA) Set Indication (Some Models)	(Search)
	Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Indication (Some Models)	(Search)
	Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) OFF Indicator Light^*1 (Some Models)	(Search)
	Smart City Brake Support (SCBS) Indication (Some Models)	Advanced Smart City Brake Support (Advanced SCBS) (Search)
		Smart City Brake Support [Forward] (SCBS F) (Search)
		Smart City Brake Support [Reverse] (SCBS R) (Search)
	Smart Brake Support/Smart City Brake Support (SBS/SCBS) OFF Indicator Light^*1 (Some Models)	Advanced Smart City Brake Support (Advanced SCBS) (Search)
		Smart City Brake Support [Forward] (SCBS F) (Search)
		Smart City Brake Support [Reverse] (SCBS R) (Search)
		Smart Brake Support (SBS) System (Search)
(White)	Cruise Main Indication (Some Models)	(Search)
(Green)	Cruise Set Indication (Some Models)	(Search)

The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an Authorized Mazda Dealer.

Speedometer

The speedometer indicates the speed of the vehicle.

Tachometer

The tachometer shows engine speed in thousands of revolutions per minute (rpm).

Do not run the engine with the tachometer needle in the RED ZONE.

This may cause severe engine damage.

When the tachometer needle enters the STRIPED ZONE, this indicates to the driver that the gears should be shifted before entering the RED ZONE.

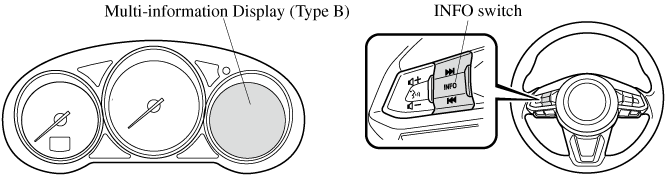

Multi-information Display (Type B)

The multi-information display indicates the following information.

Odometer
Trip meter
Engine coolant temperature gauge
Fuel gauge
Outside temperature
Distance-to-empty
Average fuel economy
Current fuel economy
Maintenance Monitor
Blind Spot Monitoring (BSM) Display
Distance Recognition Support System (DRSS) Display
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) System Display
Traffic Jam Assist (TJA) Display
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Display
Cruise Control Display
Compass Display
Message Display

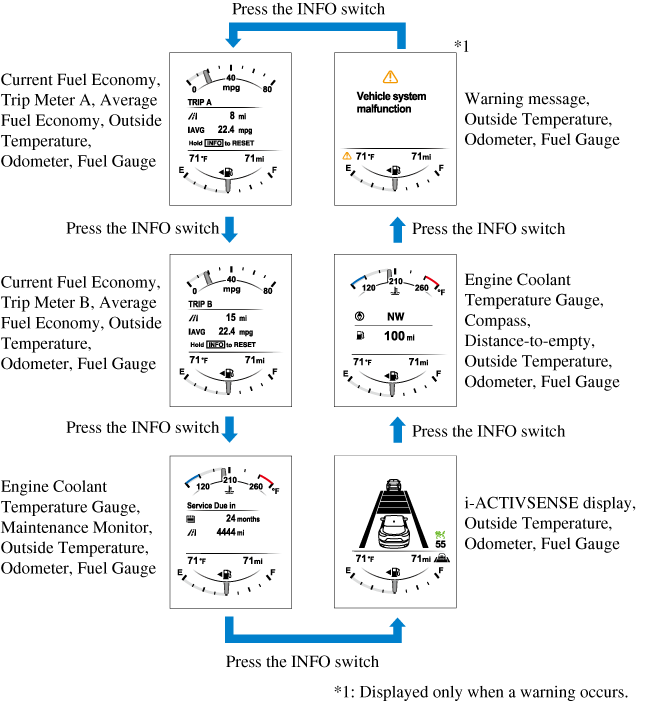

The screen content changes each time the INFO switch is pressed.

Engine Coolant Temperature Gauge

Displays the engine coolant temperature. The blue range of the gauge indicates that the engine coolant temperature is low, and the red range of the gauge indicates that the engine coolant temperature is high and overheating.

If the high engine coolant temperature warning light (red) flashes, there is a possibility of overheating. Drive slowly to reduce engine load until you can find a safe place to stop the vehicle and wait for the engine to cool down.

Refer to Overheating (Search).

(SKYACTIV-G 2.5T)

If the engine coolant temperature is high or the engine is hot, the engine output may be limited.
The temperature unit (Centigrade/Fahrenheit) of the engine coolant gauge display changes in conjunction with the temperature unit of the outside temperature display.

Refer to the Settings section in the Mazda Connect Owner's Manual.

Current Fuel Economy

This displays the current fuel economy by calculating the amount of fuel consumption and the distance traveled.

Indicates the 0 position when the vehicle speed is about 5 km/h (3 mph) or slower.

Instrument Cluster (Type C)

Message Display

A message such as the system operation status, a malfunction, or an abnormality is indicated.

Warning/indicator light in instrument cluster turns on/flashes or symbol is indicated on display at same time as message

Check the information regarding the warning/indicator light or indicated symbol.

Refer to If a Warning Indication/Warning Lights (Search).

Refer to If a Indication/Indicator Lights (Search).

Message only is indicated on display

Follow the instructions indicated on the display. For the display content, refer to the next page.

Refer to If a Message Indicated on Multi-information Display (Search).

Tachometer

The tachometer shows engine speed in thousands of revolutions per minute (rpm).

Do not run the engine with the tachometer needle in the RED ZONE.

This may cause severe engine damage.

When the tachometer needle enters the STRIPED ZONE, this indicates to the driver that the gears should be shifted before entering the RED ZONE.

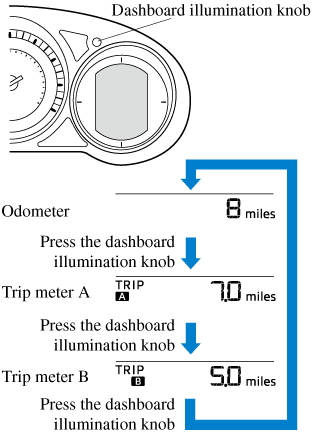

Odometer, Trip Meter and Trip Meter Selector

The display mode can be changed from odometer to trip meter A to trip meter B and then back to odometer by pressing the selector while one of them is displayed. The selected mode will be displayed.

Odometer

The odometer records the total distance the vehicle has been driven.

Trip meter

The trip meter can record the total distance of two trips. One is recorded in trip meter A, and the other is recorded in trip meter B.

For instance, trip meter A can record the distance from the point of origin, and trip meter B can record the distance from where the fuel tank is filled.

When trip meter A is selected, pressing the selector again within 1 second will change to trip meter B mode.

When trip meter A is selected, TRIP A will be displayed. When trip meter B is selected, TRIP B will be displayed.

The trip meter records the total distance the vehicle is driven until the meter is again reset. Return it to “0.0” by depressing and holding the selector for 1 second or more. Use this meter to measure trip distances and to compute fuel consumption.

If TRIP A is reset using the trip meter when the function which synchronizes (resets) the fuel economy monitor and the trip meter (TRIP A) is on, the fuel economy data resets in conjunction with TRIP A.

Refer to the Information section in the Mazda Connect Owner's Manual.
Only the trip meters record tenths of kilometers (miles).
The trip record will be erased when:
- The power supply is interrupted (blown fuse or the battery is disconnected).
- The vehicle is driven over 9999.9 km (mile).

Engine Coolant Temperature Gauge

Displays the engine coolant temperature. The white range of the gauge indicates that the engine coolant temperature is low, and the red range of the gauge indicates that the engine coolant temperature is high and overheating.

If the engine coolant temperature gauge needle (white) flashes, there is a possibility of overheating. Drive slowly to reduce engine load until you can find a safe place to stop the vehicle and wait for the engine to cool down.

Refer to Overheating (Search).

(SKYACTIV-G 2.5T)

If the engine coolant temperature is high or the engine is hot, the engine output may be limited.
The temperature unit (Centigrade/Fahrenheit) of the engine coolant gauge display changes in conjunction with the temperature unit of the outside temperature display.

Refer to the Settings section in the Mazda Connect Owner's Manual.
