Instrument Cluster

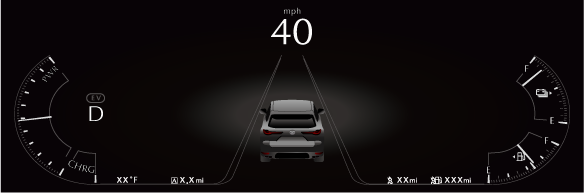

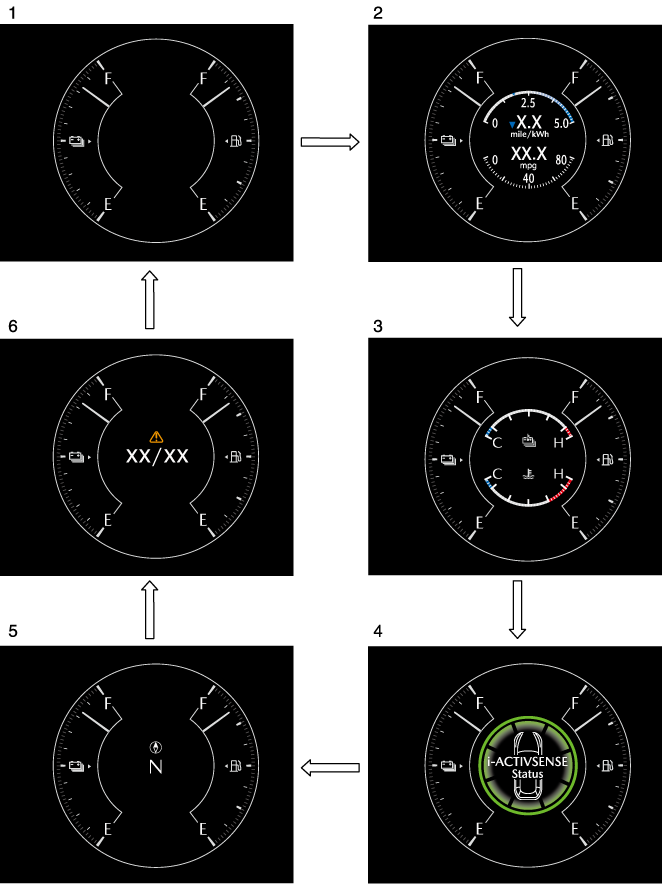

The display changes each time the INFO switch is pressed.

1. Basic display

2. Average electrical power consumption rate display

   Average fuel economy display

   Instantaneous electrical power consumption rate display

   Instantaneous fuel economy display

3. High voltage battery temperature gauge

   Engine coolant temperature gauge

4. i-ACTIVSENSE status symbol (Warning/Risk avoidance support system)

5. Compass display

6. Message display^*1

1. Displayed only when a warning occurs.

The screen will switch automatically when some i-ACTIVSENSE systems are used.

Display information can be switched using Settings in Mazda Connect.

Refer to the Settings section in the Mazda Connect Owner's Manual.

The speedometer indicates the speed of the vehicle.

Odometer

The odometer records the total distance the vehicle has been driven.

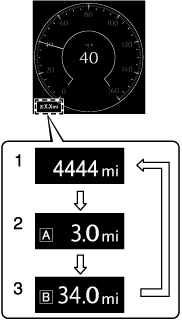

Trip meter

The driving distance for a specified interval is indicated. Two types (TRIP A, TRIP B) of interval distance can be measured.

The display changes each time the TRIP switch is pressed.

1. Odometer display

2. Trip meter A display

3. Trip meter B display

When returning the trip meter to “0”, press the TRIP switch for 2 seconds or longer while the trip meter is displayed.



---

If the lead-acid battery is disconnected for vehicle maintenance or other reasons, the trip meter display returns to “0”.

Close Note

View Note

The fuel gauge shows approximately how much fuel is remaining in the tank when the vehicle power is switched ON.

When the fuel tank is full, F (Full) is indicated, and as the level lowers the needle approaches E (Empty).



---

• After refueling, it may require some time for the indicator to stabilize. In addition, the indicator may deviate while driving on a slope or curve since the fuel moves in the tank.

• The direction of the arrow indicates that the fuel-filler lid is on the left side of the vehicle.

Close Note

View Note

When the vehicle power is switched ON, the outside temperature is displayed.



---

The outside temperature display may differ from the actual outside temperature depending on the surroundings and vehicle conditions.

Close Note

View Note

The instantaneous energy efficiency while driving the vehicle is calculated from the electrical power consumption and displayed.



---

• Displays the 0 position when the vehicle speed decreases to a constant speed or slower.

• The arrow on the instantaneous electrical power consumption rate gauge indicates the average electrical power consumption rate.

Close Note

View Note

This displays the current fuel economy by calculating the amount of fuel consumption and the distance traveled.



---

Displays the 0 position when the vehicle speed decreases to a constant speed or slower.

Close Note

View Note
