Instrument Cluster and Display

Instrument Cluster (Type A)

Speedometer

The speedometer indicates the speed of the vehicle.

Tachometer

The tachometer shows engine speed in thousands of revolutions per minute (rpm).



Do not run the engine with the tachometer needle in the RED ZONE.

This may cause severe engine damage.



Close Caution
View Caution



When the tachometer needle enters the STRIPED ZONE, this indicates to the driver that the gears should be shifted before entering the RED ZONE.

Close Note
View Note

Multi-information Display (Type A)

The multi-information display indicates the following information.

  • Speedometer

  • Odometer

  • Trip meter

  • Outside temperature

  • Distance-to-empty

  • Average fuel economy

  • Current fuel economy

  • Maintenance Monitor

  • Blind Spot Monitoring (BSM) Display

  • Distance Recognition Support System (DRSS) Display

  • Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) System Display

  • Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Display

  • Cruise Control Display

  • Compass Display

  • Door-Ajar/Liftgate-Ajar Warning Indication

  • Warning message

The screen content changes each time the INFO switch is pressed.

The screen content changes each time the selector knob is pressed and held.

Engine Coolant Temperature Gauge

Displays the engine coolant temperature. The blue gauge indicates that the engine coolant temperature is low, and the red gauge indicates that the engine coolant temperature is high and overheating.





If the engine coolant temperature gauge needle is in the red range, there is the possibility of overheating. Drive slowly to reduce engine load until you can find a safe place to stop the vehicle and wait for the engine to cool down.

Refer to Overheating (Search).

Close Caution
View Caution



  • If the engine coolant temperature is high or the engine is hot, the engine output may be limited.

  • During normal driving, the engine coolant temperature stabilizes at 100 °C (210 °F) or less, and the gauge indicates a range lower than 100 °C (210 °F).

Close Note
View Note

Average Fuel Economy

The average fuel economy is calculated every minute from the total traveled distance on the trip meter and the total fuel consumption, and the average fuel economy for either TRIP A or TRIP B is displayed.



The average fuel economy and trip meters can be reset by pressing the INFO switch for 1.5 seconds or more while in each mode. After the data is cleared, the fuel consumption is recalculated and the - - - km/L (- - - mpg) for the 1 minute prior to it being displayed is indicated.

Maintenance Monitor

The following maintenance period notifications can be displayed by turning the Maintenance Monitor on.

  • Scheduled Maintenance

  • Tire Rotation

  • Oil Change

When the remaining days to the maintenance period is 15 days or less, or the remaining distance is 1,000 km (600 miles) or shorter, a message is indicated when the ignition is switched ON.

For the setting method and indications for the maintenance monitor, refer to the Maintenance Monitor.

Refer to Maintenance Monitor (Search).

Warning (Display Indication)

A message is displayed to notify the user of the system operation status and malfunctions or abnormalities.

If the warning light turns on/flashes simultaneously or a symbol is indicated in the display, check the information regarding the warning light or symbol.

Refer to If a Warning Light Turns On or Flashes (Search).

For messages not indicating a symbol, follow the instructions indicated in the multi-information display.

Refer to Message Indicated in Multi-information Display (Search).

Warning Indication/Warning Lights

These lights turn on or flash to notify the user of the system operation status or a system malfunction.

Signal

Warning

Page

Brake System Warning Indication/Warning Light*1*2

 (Search)

ABS Warning Light*1

Electronic Brake Force Distribution System Warning

(Search)

ABS warning

(Search)

Charging System Warning Indication/Warning Light*1

 (Search)

Engine Oil Warning Light*1

 (Search)

High Engine Coolant Temperature Warning Indication

 (Search)

Power Steering Malfunction Indication

 (Search)

Master Warning Indication

 (Search)

Electric Parking Brake (EPB) Warning Indication/Warning Light*1

 (Search)

Check Engine Light*1

 (Search)

Automatic Transaxle Warning Indication

 (Search)

AWD Warning Indication (Some Models)

 (Search)

Air Bag/Front Seat Belt Pretensioner System Warning Light*1

 (Search)

Tire Pressure Monitoring System Warning Light*1 (Some Models)

Flashing

(Search)

Turns on

(Search)

(Amber/White)

KEY Warning Indication

Amber

(Search)

White

(Search)

(Amber)

High Beam Control System (HBC) Warning Indication/Warning Light*1

 (Search)

Blind Spot Monitoring (BSM) Warning Indication

 (Search)

(Amber)

Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Warning Indication (Some Models)

 (Search)

(Amber)

Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Warning Indication

 (Search)

LED Headlight Warning Light*1

 (Search)

Smart Brake Support/Smart City Brake Support (SBS/SCBS) Warning Indication (Some Models)

 (Search)

Low Fuel Warning Indication/Warning Light

 (Search)

Check Fuel Cap Warning Indication/Warning Light*1

 (Search)

Engine Oil Level Warning Light*1

 (Search)

Seat Belt Warning Light (Front seat)

 (Search)

(Red)

Seat Belt Warning Light (Rear seat) (Some Models)

 (Search)

Low Washer Fluid Level Warning Indication (Some Models)

 (Search)

Door-Ajar Warning Indication

 (Search)

Liftgate-Ajar Warning Indication

 (Search)

Door-Ajar Warning Light

 (Search)

  1. The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an Authorized Mazda Dealer.

  2. The light turns on continuously when the parking brake is applied.

Indication/Indicator Lights

These lights turn on or flash to notify the user of the system operation status or a system malfunction.

Signal

Indicator

Page

(Green)

Seat Belt Indicator Light (Rear seat) (Some Models)

 (Search)

Front Passenger Air Bag Deactivation Indicator Light*1

 (Search)

Security Indicator Light*1

 (Search)

Wrench Indication

 (Search)

Shift Position Indication

 (Search)

Lights-On Indication/Indicator Light

 (Search)

Headlight High-Beam Indicator Light

Headlight High-Low Beam

(Search)

Flashing the Headlights

(Search)

Turn Signal/Hazard Warning Indicator Lights

Turn and Lane-Change Signals

(Search)

Hazard Warning Flasher

(Search)

Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) indicator Light*1 (Some Models)

 (Search)

TCS/DSC Indicator Light*1

Traction Control System (TCS)

(Search)

Dynamic Stability Control (DSC)

(Search)

Turns on

(Search)

TCS OFF Indicator Light*1

 (Search)

Select Mode Indication

 (Search)

(Green)

High Beam Control System (HBC) Indicator Light

 (Search)

Blind Spot Monitoring (BSM) OFF Indicator Light*1

Malfunction

(Search)

Except malfunction

(Search)

(White)

Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Main Indication (Some Models)

 (Search)

(Green)

Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Set Indication (Some Models)

 (Search)

Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Indication

 (Search)

Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) OFF Indicator Light*1 (Some Models)

 (Search)

Smart City Brake Support (SCBS) Indication (Some Models)

Advanced Smart City Brake Support (Advanced SCBS)

(Search)

Smart City Brake Support (SCBS)

(Search)

Smart Brake Support/Smart City Brake Support (SBS/SCBS) OFF Indicator Light*1 (Some Models)

Advanced Smart City Brake Support (Advanced SCBS)

(Search)

Smart City Brake Support (SCBS)

(Search)

Smart Brake Support (SBS) System

(Search)

(White)

Cruise Main Indication (Some Models)

 (Search)

(Green)

Cruise Set Indication (Some Models)

 (Search)

  1. The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an Authorized Mazda Dealer.

Instrument Cluster (Type B)

Current Fuel Economy

This displays the current fuel economy by calculating the amount of fuel consumption and the distance traveled.





Indicates the 0 position when the vehicle speed is about 5 km/h (3 mph) or slower.

Close Note
View Note

Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Display (Some Models)

Displays the currently set system status.



Refer to Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) (Search).

Wrench Indicator Light

The wrench indication is displayed under the following conditions.

  • When the preset maintenance period has arrived.

    Refer to Maintenance Monitor (Search).

  • When the engine oil replacement period has arrived.



  • The wrench indication may display earlier than the preset period depending on vehicle usage conditions.

  • Whenever the engine oil is replaced, a reset of the vehicle engine control unit necessary.

    Your Authorized Mazda Dealer will be able to reset the engine control unit or see (Search) for the Vehicle engine control unit reset procedure.

Close Note
View Note



Instrument Cluster (Type C)

Odometer, Trip Meter and Trip Meter Selector

The display mode can be changed from odometer to trip meter A to trip meter B and then back to odometer by pressing the selector while one of them is displayed. The selected mode will be displayed.





Odometer

The odometer records the total distance the vehicle has been driven.

Trip meter

The trip meter can record the total distance of two trips. One is recorded in trip meter A, and the other is recorded in trip meter B.



For instance, trip meter A can record the distance from the point of origin, and trip meter B can record the distance from where the fuel tank is filled.



When trip meter A is selected, pressing the selector again within 1 second will change to trip meter B mode.



When trip meter A is selected, TRIP A will be displayed. When trip meter B is selected, TRIP B will be displayed.



The trip meter records the total distance the vehicle is driven until the meter is again reset. Return it to “0.0” by depressing and holding the selector for 1 second or more. Use this meter to measure trip distances and to compute fuel consumption.



  • If TRIP A is reset using the trip meter when the function which synchronizes (resets) the fuel economy monitor and the trip meter (TRIP A) is on, the fuel economy data resets in conjunction with TRIP A.

    Refer to Fuel Economy Monitor (Search).

  • Only the trip meters record tenths of kilometers (miles).

  • The trip record will be erased when:

    • The power supply is interrupted (blown fuse or the battery is disconnected).

    • The vehicle is driven over 9999.9 km (mile).

Close Note
View Note

Wrench Indicator Light

When the ignition is switched ON, the wrench indicator light turns on and then turns off after a few seconds.



The wrench indicator light turns on under the following conditions:

  • When the preset maintenance period has arrived.

  • When it’s time to replace the engine oil.

Refer to Maintenance Monitor (Search).



  • The wrench indicator light turns on earlier than the preset period depending on vehicle usage conditions.

  • Whenever the engine oil is replaced, a reset of the vehicle engine control unit necessary.

    Your Authorized Mazda Dealer will be able to reset the engine control unit or see (Search) for the Vehicle engine control unit reset procedure.

Close Note
View Note

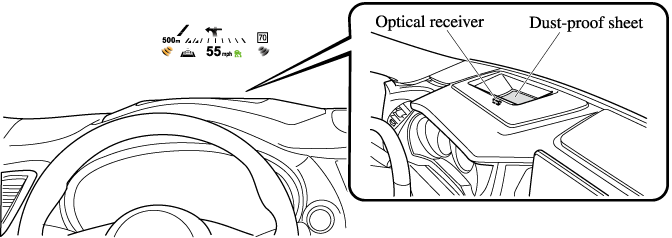

Active Driving Display (Some Models)

Active Driving Display (Some Models)



Always adjust the display brightness and position with the vehicle stopped:

Adjusting the display brightness and position while driving the vehicle is dangerous as doing so could distract your attention from the road ahead and lead to an accident.

Close Warning
View Warning



  • Do not place beverages near the active driving display. If water or other liquids are splashed on the active driving display, it could cause damage.

  • Do not place objects above the active driving display or apply stickers to the dust-proof sheet/optical receiver as they will cause interference.

  • A sensor is integrated to control the display's luminosity. If the optical receiver is covered, the display's luminosity will lower making the display difficult to view.

  • Do not allow intense light to hit the optical receiver. Otherwise, it could cause damage.

Close Caution
View Caution



  • Wearing polarized sunglasses will reduce the visibility of the active driving display due to the characteristics of the display.

  • If the battery has been removed and re-installed or the battery voltage is low, the adjusted position may deviate.

  • The display may be difficult to view or temporarily affected by weather conditions such as rain, snow, light, and temperature.

  • If the audio system is removed, the active driving display cannot be operated.

Close Note
View Note

The active driving display indicates the following information:

  • Blind Spot Monitoring (BSM) Operation Conditions and Warnings

    Refer to Blind Spot Monitoring (BSM) (Search).

  • Distance Recognition Support System (DRSS) Operation Conditions and Warnings

    Refer to Distance Recognition Support System (DRSS) (Search).

  • Traffic Sign Recognition System (TSR) traffic signs and Warnings

    Refer to Traffic Sign Recognition System (TSR) (Search).

  • Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Operation Conditions and Warnings

    Refer to Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) (Search).

  • Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Operation Conditions and Warnings

    Refer to Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) (Search).

  • Advanced Smart City Brake Support (Advanced SCBS) Warnings

    Refer to Advanced Smart City Brake Support (Advanced SCBS) (Search).

  • Smart City Brake Support (SCBS) Warnings

    Refer to Smart City Brake Support (SCBS) (Search).

  • Smart Brake Support (SBS) Warnings

    Refer to Smart Brake Support (SBS) (Search).

  • Cruise Control Operation Conditions

    Refer to Cruise Control (Search).

  • Navigation Guidance (vehicles with navigation system)

  • Speed limit indicator (vehicles with navigation system)

  • Vehicle Speed

Each setting/adjustment for the active driving display can be performed on the center display.

  1. Select the icon on the home screen and display the Settings screen.

  2. Select the AD-Disp tab.

  3. Select the desired item and perform the setting/adjustment.

    • Method for adjusting screen brightness (automatically/manually)

    • Screen brightness initial settings (automatic adjustment is selected)

    • Screen brightness adjustment (manual adjustment is selected)

    • Display position of active driving display (display height)

    • Active driving display angle adjustment (display angle correction)

    • Active driving display ON/OFF (indication)

    • Navigation guidance ON/OFF

    • Reset settings (reset)



  • The desired driving position (display position, brightness level, display information) can be called up after programming the position.

    Refer to Driving Position Memory (Search).

Close Note
View Note

Page top
