Seats

Seat Precautions

Front Seat

Driving Position Memory (Some Models)

The desired driving position can be called up after programming the position.

The following driving positions can be programmed.

Driver’s seat position (seat slide, height adjustment, front edge of seat bottom, seat recline)

Refer to Adjusting the Driver's Seat (Search).
Active driving display (display position, brightness level, display information)

Refer to Active Driving Display (Search).

Do not place fingers or hands around the bottom of the seat while the seat memory function is operating. The seat moves automatically while the seat memory function is operating and fingers or hands could get pinched and injured.

Close Caution

View Caution

A driving position can be programmed or operated using the buttons on the side of the seat or the key.

Lumbar support adjustment cannot be programmed.
A driving position can be programmed to the buttons on the side of the seat and the key in use for driving the vehicle.
If the vehicle has been serviced and the battery cables disconnected, the programmed seat positions will have been erased. Re-program the seat positions.

Close Note

View Note

Programming

Make sure the parking brake is on.
Make sure the selector lever is in the P position.
Start the engine.
Adjust the seat and the active driving display to the desired driving position.

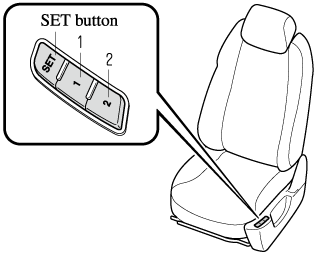

Press the SET button on the seat until a beep sound is heard 1 time.
Perform one of the following settings within 5 seconds of completing step 5 above:
- Programming using a button on the side of the seat

  Press the button you want to program, either button 1 or 2, until a beep sound is heard 1 time.
- Programming using the key

  Press the key button until a beep sound is heard 1 time.

If a beep sound is heard 3 times, the operation is canceled.

Close Note

View Note

To move the driving position to a programmed position

(Using a button on the side of the seat)

Make sure the parking brake is on.
Make sure the selector lever is in the P position.
Start the engine.
Press the programming button for the driving position you want to call up (button 1 or 2).
A beep sound is heard when the driving position adjustment is completed.

If the driving position movement is not changed, only the beep sounds.
A seat position can be called up even with the engine not running.
The driving position adjustment is canceled in the following cases:
- Any of the seat adjustment switches is operated.
- The SET button is pressed.
- Programming button 1 or 2 is pressed.
- The key button or button is operated.
- The vehicle starts moving.
- The active driving display is adjusted.

Close Note

View Note

(Using a programmed key)

Unlock the doors by pressing a request switch or the key button.
After unlocking the doors, the seat position adjustment begins within 40 seconds of opening the driver's door, and a beep sounds when the operation is finished.
Make sure the parking brake is on.
Make sure the selector lever is in the P position.
Start the engine.
The active driving display adjustment begins.

If there is no driving position movement, a beep is not heard.
The driving position adjustment is canceled in the following cases:
- Any of the seat adjustment switches is operated.
- The SET button is pressed.
- Programming button 1 or 2 is pressed.
- The key button or button is operated.
- The vehicle starts moving.
- The active driving display is adjusted.

Close Note

View Note

Erasing programmed driving positions

(Erasing the driving positions programmed to the key)

Switch the ignition OFF.
Press the SET button on the side of the seat until a beep sound is heard 1 time.
After the beep sounds, press the key button within 5 seconds until a beep sound is heard 1 time.

If a beep sound is heard 3 times, the operation is canceled.

Close Note

View Note

Second-Row Seat

Seat Operation

Seat Slide (Forward-back adjustment)

To move a seat forward or backward, raise the lever and slide the seat to the desired position and release the lever.

Make sure the lever returns to its original position and the seat is locked in place by attempting to push it forward and backward.

Seat Recline

To change the seatback angle, lean forward slightly while raising the lever. Then lean back to the desired position and release the lever.

The lever can also be used when flattening down the seats.

Refer to How to Split Folding the Second-Row Seats (Search).

Make sure the lever returns to its original position and the seatback is locked in place by attempting to push it forward and backward.

Third-Row Seat Access

To access to the third-row seats, pull up the lever on the side of the head restraint to fold the seatback and slide the seat forward.

Refer to How to Third-Row Seat Access (Search).

Make sure the lever returns to its original position and the seatback is locked in place by attempting to push it forward and backward.

Split folding the Second-Row Seats

To create a flat luggage compartment space, fold the seatbacks forward.

Folding the seatbacks

Make sure the adjustable components of a second-row seat are locked after folding down the seatback:

A second-row seat that is not securely locked is dangerous. In a sudden stop or collision, the second-row seat could move, causing injury.

After folding down the seatback of a second-row seat, make sure the adjustable components of the seat are locked in place by attempting to slide the seat forward and backward.

Close Warning

View Warning

When folding the seatback forward, always support the seatback with your hand. If it is not supported by a hand, fingers or the hand raising the lever could be injured.
Check the position of a front seat before folding a second-row seatback.

Depending on the position of a front seat, it may not be possible to fold a second-row seatback all the way down because it may hit the seatback of the front seat which could scratch or damage the front seat or its pocket. Remove the head restraint on the second-row outboard seat if necessary.

Close Caution

View Caution

Lower the head restraint all the way down.

Refer to Head Restraints (Search).
Raise the lever on the side of the second-row seat to fold down the seatback.

To create a flat luggage compartment space from the rear of the vehicle to the back of the front seats, fold the second-row and third-row seats (Search).

Close Note

View Note

To return the seatback to its upright position:

When returning a seatback to its upright position, make sure the 3-point seat belt is not caught in the seatback and the 3-point seat belt is not twisted:

If the seat belt is used while it is twisted and caught in the seatback, the seat belt cannot function at its full capacity, which could cause serious injury or death.

Close Warning

View Warning

Make sure that the seat belt is not stuck in the second-row seat and it is not twisted, then raise the seatback while preventing the seat belt from being caught in the seatback.
Press the seatback rearward and lock it in place. After returning the seatback to its upright position, make sure it is securely locked.

Third-Row Seat

Head Restraints

Your vehicle is equipped with head restraints on all outboard seats and the second-row center seat. The head restraints are intended to help protect you and the passengers from neck injury.

Always drive with the head restraints installed when seats are being used and make sure they are properly adjusted. In addition, always raise the head restraints on all second-row seats when they are being used:

Driving with the head restraints adjusted too low or removed is dangerous. With no support behind your head, your neck could be seriously injured in a collision.

Close Warning

View Warning

(Third-row seat)

The head restraints are non-adjustable.

Close Note

View Note

Height Adjustment

Adjust the head restraint so that the center is even with the top of the passenger's ears.

To raise a head restraint, pull it up to the desired position.

To lower the head restraint, press the stop-catch release, then push the head restraint down.

Front outboard seat

Second-row outboard seat

Second-row center seat
