Instrument Cluster and Display

Instrument Cluster (Type A)

Speedometer

The speedometer indicates the speed of the vehicle.

Odometer, Trip Meter and Trip Meter Selector

The odometer is constantly displayed on the screen when the ignition is switched ON, and the TRIP A or TRIP B screen can be displayed by operating the INFO switch.



Odometer

The odometer records the total distance the vehicle has been driven.

Trip meter

The driving distance for a specified interval is indicated. Two types (TRIP A, TRIP B) of interval distance and the average fuel economy for each can be measured.



For instance, trip meter A can record the distance from the point of origin, and trip meter B can record the distance from where the fuel tank is filled.

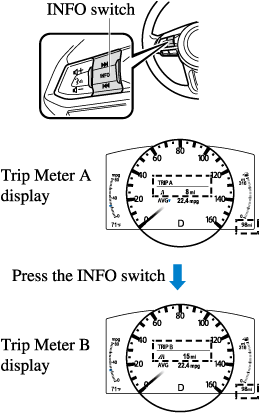

When trip meter A is selected, TRIP A will be displayed. When trip meter B is selected, TRIP B will be displayed.



The trip meter and average fuel economy can be reset by pressing the INFO switch for 1.5 seconds or more while in each mode.



  • Only the trip meters record tenths of kilometers (miles).

  • The trip record will be erased when:

    • The power supply is interrupted (blown fuse or the battery is disconnected).

    • The vehicle is driven over 9999.9 km (mile).

Close Note
View Note

Engine Coolant Temperature Gauge

Displays the engine coolant temperature. The blue gauge indicates that the engine coolant temperature is low, and the red gauge indicates that the engine coolant temperature is high and overheating.





If the engine coolant temperature gauge needle is in the red range, there is the possibility of overheating. Drive slowly to reduce engine load until you can find a safe place to stop the vehicle and wait for the engine to cool down.

Refer to Overheating (Search).

Close Caution
View Caution



  • If the engine coolant temperature is high or the engine is hot, the engine output may be limited.

  • During normal driving, the engine coolant temperature stabilizes at 100 °C (210 °F) or less, and the gauge indicates a range lower than 100 °C (210 °F).

Close Note
View Note

Distance-to-empty

This displays the approximate distance you can travel on the remaining fuel based on the fuel economy.

The distance-to-empty will be calculated and displayed every second.





  • Even though the distance-to-empty display may indicate a sufficient amount of remaining driving distance before refueling is required, refuel as soon as possible if the fuel level is very low or the low fuel warning light illuminates.

  • The display will not change unless you add more than approximately 9 L (2.3 US gal, 1.9 Imp gal) of fuel.

  • The distance-to-empty is the approximate remaining distance the vehicle can be driven until all the graduation marks in the fuel gauge indicating the remaining fuel supply disappear.

  • If there is no past fuel economy information such as after first purchasing your vehicle or the information is deleted when the battery cables are disconnected, the actual distance-to empty/range may differ from the amount indicated.

Close Note
View Note

Maintenance Monitor

The following maintenance period notifications can be displayed by turning the Maintenance Monitor on.

  • Scheduled Maintenance

  • Tire Rotation

  • Oil Change

When the remaining days to the maintenance period is 15 days or less, or the remaining distance is 1,000 km (600 miles) or shorter, a message is indicated when the ignition is switched ON.

For the setting method and indications for the maintenance monitor, refer to the Maintenance Monitor.

Refer to Maintenance Monitor (Search).

Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Display (Some Models)

Displays the currently set system status.



Refer to Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) (Search).

Compass Display

The direction the vehicle is moving is displayed in one of eight directions while the vehicle is being driven.



Display

Direction

N

North

S

South

E

East

W

West

NE

Northeast

NW

Northwest

SE

Southeast

SW

Southwest

Instrument Cluster (Type B)

Multi-information Display (Type B)

The multi-information display indicates the following information.

  • Odometer

  • Trip meter

  • Engine coolant temperature gauge

  • Fuel gauge

  • Outside temperature

  • Distance-to-empty

  • Average fuel economy

  • Current fuel economy

  • Maintenance Monitor

  • Blind Spot Monitoring (BSM) Display

  • Distance Recognition Support System (DRSS) Display

  • Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) System Display

  • Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Display

  • Cruise Control Display

  • Compass Display

  • Warning message

The screen content changes each time the INFO switch is pressed.

Distance Recognition Support System (DRSS) Display (Some Models)

Displays the distance between your vehicle and the vehicle ahead.



Refer to Distance Recognition Support System (DRSS) (Search).

Warning/Indicator Lights

Instrument Cluster varies depending on model and specifications.

Indication/Indicator Lights

These lights turn on or flash to notify the user of the system operation status or a system malfunction.

Signal

Indicator

Page

(Green)

Seat Belt Indicator Light (Rear seat) (Some Models)

 (Search)

Front Passenger Air Bag Deactivation Indicator Light*1 (Some Models)

 (Search)

Security Indicator Light*1

 (Search)

Wrench Indication

 (Search)

(Blue)

Low Engine Coolant Temperature Indicator Light

 (Search)

Shift Position Indication

 (Search)

Lights-On Indication/Indicator Light

 (Search)

Headlight High-Beam Indicator Light

Headlight High-Low Beam

(Search)

Flashing the Headlights

(Search)

Turn Signal/Hazard Warning Indicator Lights

Turn and Lane-Change Signals

(Search)

Hazard Warning Flasher

(Search)

Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) indicator Light*1 (Some Models)

 (Search)

TCS/DSC Indicator Light*1

Traction Control System (TCS)

(Search)

Dynamic Stability Control (DSC)

(Search)

Turns on

(Search)

TCS OFF Indicator Light*1

 (Search)

Select Mode Indication

 (Search)

(Green)

High Beam Control System (HBC) Indicator Light (Some Models)

 (Search)

Blind Spot Monitoring (BSM) OFF Indicator Light*1 (Some Models)

Malfunction

(Search)

Except malfunction

(Search)

(White)

Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Main Indication (Some Models)

 (Search)

(Green)

Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Set Indication (Some Models)

 (Search)

Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Indication (Some Models)

 (Search)

Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) OFF Indicator Light*1 (Some Models)

 (Search)

Smart City Brake Support (SCBS) Indication (Some Models)

Advanced Smart City Brake Support (Advanced SCBS)

(Search)

Smart City Brake Support (SCBS)

(Search)

Smart Brake Support/Smart City Brake Support (SBS/SCBS) OFF Indicator Light*1 (Some Models)

Advanced Smart City Brake Support (Advanced SCBS)

(Search)

Smart City Brake Support (SCBS)

(Search)

Smart Brake Support (SBS) System

(Search)

(White)

Cruise Main Indication (Some Models)

 (Search)

(Green)

Cruise Set Indication (Some Models)

 (Search)

  1. The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an Authorized Mazda Dealer.

Low Engine Coolant Temperature Indicator Light (Blue)

The light illuminates continuously when the engine coolant temperature is low and turns off after the engine is warm.
