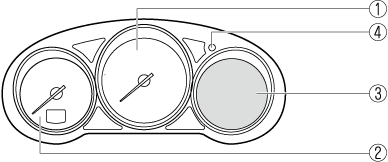

Instrument Cluster and Display

When the tachometer needle enters the STRIPED ZONE, this indicates to the driver that the gears should be shifted before entering the RED ZONE.

Multi-information Display (Type A)

The multi-information display indicates the following information.

Speedometer
Odometer
Trip meter
Outside temperature
Distance-to-empty
Average fuel economy
Current fuel economy
Maintenance Monitor
Blind Spot Monitoring (BSM) Display
Distance Recognition Support System (DRSS) Display
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) System Display
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Display
Cruise Control Display
Compass Display
Door-Ajar/Liftgate-Ajar Warning Indication
Warning message

The screen content changes each time the INFO switch is pressed.

The screen content changes each time the selector knob is pressed and held.

Odometer, Trip Meter and Trip Meter Selector

The odometer is constantly displayed on the screen when the ignition is switched ON, and the TRIP A or TRIP B screen can be displayed by operating the INFO switch.

Odometer

The odometer records the total distance the vehicle has been driven.

Trip meter

The driving distance for a specified interval is indicated. Two types (TRIP A, TRIP B) of interval distance and the average fuel economy for each can be measured.

For instance, trip meter A can record the distance from the point of origin, and trip meter B can record the distance from where the fuel tank is filled.

When trip meter A is selected, TRIP A will be displayed. When trip meter B is selected, TRIP B will be displayed.

The trip meter and average fuel economy can be reset by pressing the INFO switch for 1.5 seconds or more while in each mode.

Only the trip meters record tenths of kilometers (miles).
The trip record will be erased when:
- The power supply is interrupted (blown fuse or the battery is disconnected).
- The vehicle is driven over 9999.9 km (mile).

Engine Coolant Temperature Gauge

Displays the engine coolant temperature. The blue gauge indicates that the engine coolant temperature is low, and the red gauge indicates that the engine coolant temperature is high and overheating.

If the engine coolant temperature gauge needle is in the red range, there is the possibility of overheating. Drive slowly to reduce engine load until you can find a safe place to stop the vehicle and wait for the engine to cool down.

Refer to Overheating (Search).

If the engine coolant temperature is high or the engine is hot, the engine output may be limited.
During normal driving, the engine coolant temperature stabilizes at 100 °C (210 °F) or less, and the gauge indicates a range lower than 100 °C (210 °F).

Fuel Gauge

The fuel gauge shows approximately how much fuel is remaining in the tank when the ignition is switched ON. We recommend keeping the tank over 1/4 full.

If the low fuel warning light illuminates or the fuel level is very low, refuel as soon as possible.

Refer to Taking Action (Search).

After refueling, it may require some time for the indicator to stabilize. In addition, the indicator may deviate while driving on a slope or curve since the fuel moves in the tank.
The direction of the arrow () indicates that the fuel-filler lid is on the left side of the vehicle.

Distance-to-empty

This displays the approximate distance you can travel on the remaining fuel based on the fuel economy.

The distance-to-empty will be calculated and displayed every second.

Even though the distance-to-empty display may indicate a sufficient amount of remaining driving distance before refueling is required, refuel as soon as possible if the fuel level is very low or the low fuel warning light illuminates.
The display will not change unless you add more than approximately 9 L (2.3 US gal, 1.9 Imp gal) of fuel.
The distance-to-empty is the approximate remaining distance the vehicle can be driven until all the graduation marks in the fuel gauge indicating the remaining fuel supply disappear.
If there is no past fuel economy information such as after first purchasing your vehicle or the information is deleted when the battery cables are disconnected, the actual distance-to empty/range may differ from the amount indicated.

Current Fuel Economy

This displays the current fuel economy by calculating the amount of fuel consumption and the distance traveled.

The average fuel economy for TRIP A is indicated by a blue arrow.

Indicates the 0 position when the vehicle speed is about 5 km/h (3 mph) or slower.

Blind Spot Monitoring (BSM) Display

Displays the system status.

Refer to Blind Spot Monitoring (BSM) (Search).

Warning (Display Indication)

A message is displayed to notify the user of the system operation status and malfunctions or abnormalities.

If the warning light turns on/flashes simultaneously or a symbol is indicated in the display, check the information regarding the warning light or symbol.

Refer to If a Warning Light Turns On or Flashes (Search).

For messages not indicating a symbol, follow the instructions indicated in the multi-information display.

Refer to Message Indicated in Multi-information Display (Search).

Indication/Indicator Lights

These lights turn on or flash to notify the user of the system operation status or a system malfunction.

Signal	Indicator	Page
(Green)	Seat Belt Indicator Light (Rear seat) (Some Models)	(Search)
	Front Passenger Air Bag Deactivation Indicator Light^*1	(Search)
	Security Indicator Light^*1	(Search)
	Wrench Indication	(Search)
	Shift Position Indication	(Search)
	Lights-On Indication/Indicator Light	(Search)
	Headlight High-Beam Indicator Light	Headlight High-Low Beam (Search)
	Headlight High-Beam Indicator Light	Flashing the Headlights (Search)
	Turn Signal/Hazard Warning Indicator Lights	Turn and Lane-Change Signals (Search)
	Turn Signal/Hazard Warning Indicator Lights	Hazard Warning Flasher (Search)
	Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) indicator Light^*1 (Some Models)	(Search)
	TCS/DSC Indicator Light^*1	Traction Control System (TCS) (Search)
		Dynamic Stability Control (DSC) (Search)
		Turns on (Search)
	TCS OFF Indicator Light^*1	(Search)
	Select Mode Indication	(Search)
(Green)	High Beam Control System (HBC) Indicator Light	(Search)
	Blind Spot Monitoring (BSM) OFF Indicator Light^*1	Malfunction (Search)
	Blind Spot Monitoring (BSM) OFF Indicator Light^*1	Except malfunction (Search)
(White)	Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Main Indication (Some Models)	(Search)
(Green)	Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Set Indication (Some Models)	(Search)
	Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Indication	(Search)
	Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) OFF Indicator Light^*1 (Some Models)	(Search)
	Smart City Brake Support (SCBS) Indication (Some Models)	Advanced Smart City Brake Support (Advanced SCBS) (Search)
	Smart City Brake Support (SCBS) Indication (Some Models)	Smart City Brake Support (SCBS) (Search)
	Smart Brake Support/Smart City Brake Support (SBS/SCBS) OFF Indicator Light^*1 (Some Models)	Advanced Smart City Brake Support (Advanced SCBS) (Search)
		Smart City Brake Support (SCBS) (Search)
		Smart Brake Support (SBS) System (Search)
(White)	Cruise Main Indication (Some Models)	(Search)
(Green)	Cruise Set Indication (Some Models)	(Search)

The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an Authorized Mazda Dealer.

Wrench Indicator Light

The wrench indication is displayed under the following conditions.

When the preset maintenance period has arrived.

Refer to Maintenance Monitor (Search).
When the engine oil replacement period has arrived.

The wrench indication may display earlier than the preset period depending on vehicle usage conditions.
Whenever the engine oil is replaced, a reset of the vehicle engine control unit necessary.

Your Authorized Mazda Dealer will be able to reset the engine control unit or see (Search) for the Vehicle engine control unit reset procedure.

Instrument Cluster (Type B)

Speedometer

The speedometer indicates the speed of the vehicle.

Tachometer

The tachometer shows engine speed in thousands of revolutions per minute (rpm).

Do not run the engine with the tachometer needle in the RED ZONE.

This may cause severe engine damage.

When the tachometer needle enters the STRIPED ZONE, this indicates to the driver that the gears should be shifted before entering the RED ZONE.

Engine Coolant Temperature Gauge

Displays the engine coolant temperature. The blue gauge indicates that the engine coolant temperature is low, and the red gauge indicates that the engine coolant temperature is high and overheating.

If the high engine coolant temperature warning light (red) flashes, there is a possibility of overheating. Drive slowly to reduce engine load until you can find a safe place to stop the vehicle and wait for the engine to cool down.

Refer to Overheating (Search).

If the engine coolant temperature is high or the engine is hot, the engine output may be limited.
The temperature unit (Centigrade/Fahrenheit) of the engine coolant gauge display changes in conjunction with the temperature unit of the outside temperature display.

Refer to Personalization Features (Search).
During normal driving, the engine coolant temperature stabilizes at 100 °C (210 °F) or less, and the gauge indicates a range lower than 100 °C (210 °F).

Current Fuel Economy

This displays the current fuel economy by calculating the amount of fuel consumption and the distance traveled.

Indicates the 0 position when the vehicle speed is about 5 km/h (3 mph) or slower.
