Instrument Cluster and Display

Instrument Cluster (Type B)

Multi-information Display (Type B)

The multi-information display indicates the following information.

  • Odometer

  • Trip meter

  • Engine coolant temperature gauge

  • Fuel gauge

  • Outside temperature

  • Distance-to-empty

  • Average fuel economy

  • Current fuel economy

  • Maintenance Monitor

  • Blind Spot Monitoring (BSM) Display

  • Distance Recognition Support System (DRSS) Display

  • Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) System Display

  • Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Display

  • Cruise Control Display

  • Compass Display

  • Warning message

The screen content changes each time the INFO switch is pressed.

Engine Coolant Temperature Gauge

Displays the engine coolant temperature. The blue gauge indicates that the engine coolant temperature is low, and the red gauge indicates that the engine coolant temperature is high and overheating.





If the high engine coolant temperature warning light (red) flashes, there is a possibility of overheating. Drive slowly to reduce engine load until you can find a safe place to stop the vehicle and wait for the engine to cool down.

Refer to Overheating (Search).

Close Caution
View Caution



  • If the engine coolant temperature is high or the engine is hot, the engine output may be limited.

  • The temperature unit (Centigrade/Fahrenheit) of the engine coolant gauge display changes in conjunction with the temperature unit of the outside temperature display.

    Refer to Personalization Features (Search).

  • During normal driving, the engine coolant temperature stabilizes at 100 °C (210 °F) or less, and the gauge indicates a range lower than 100 °C (210 °F).

Close Note
View Note

Fuel Gauge

The fuel gauge shows approximately how much fuel is remaining in the tank when the ignition is switched ON. We recommend keeping the tank over 1/4 full.



If the fuel level is low, () and () turn an amber color. Refuel as soon as possible.

Refer to Taking Action (Search).



  • After refueling, it may require some time for the indicator to stabilize. In addition, the indicator may deviate while driving on a slope or curve since the fuel moves in the tank.

  • The direction of the arrow () indicates that the fuel-filler lid is on the left side of the vehicle.

Close Note
View Note

Dashboard Illumination

(Without auto-light control)

When the lights are turned on with the ignition switched ON, the brightness of the dashboard illumination is dimmed.

(With auto-light control)

When the lights are turned on with the ignition switched ON, the brightness of the dashboard illumination is dimmed. However, when the light sensor detects that the surrounding area is bright such as when the lights are turned on in the daytime, the dashboard illumination does not dim.



  • (With auto-light control)

    When the ignition is switched ON in the early evening or at dusk, the dashboard illumination is dimmed for several seconds until the light sensor detects the brightness of the surrounding area, however, the dimming may cancel after the brightness is detected.

  • When the lights are turned on, the lights-on indicator light in the instrument cluster turns on.

    Refer to Headlights (Search).

Close Note
View Note

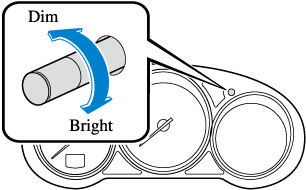

The brightness of the instrument cluster and dashboard illuminations can be adjusted by rotating the knob.

  • The brightness decreases by rotating the knob to the left. A beep sound will be heard when the knob has been rotated to the maximum dim position.

  • The brightness increases by rotating the knob to the right.

Function for canceling illumination dimmer

The illumination dimmer can be canceled by rotating the dashboard illumination knob to the right until a beep sound is heard while the instrument cluster is dimmed with the ignition switched ON. If the instrument cluster's visibility is reduced due to glare from surrounding brightness, cancel the illumination dimmer.



  • The illumination dimmer can be canceled by pressing the dashboard illumination knob.

  • When the illumination dimmer is canceled, the instrument cluster cannot be dimmed even if the lights are turned on.

  • When the illumination dimmer is canceled, the screen in the center display switches to constant display of the daytime screen.

Close Note
View Note

Average Fuel Economy

The average fuel economy is calculated every minute from the total traveled distance on the trip meter and the total fuel consumption, and the average fuel economy for either TRIP A or TRIP B is displayed.



The average fuel economy and trip meters can be reset by pressing the INFO switch for 1.5 seconds or more while in each mode. After the data is cleared, the fuel consumption is recalculated and the - - - km/L (- - - mpg) for the 1 minute prior to it being displayed is indicated.

Maintenance Monitor

The following maintenance period notifications can be displayed by turning the Maintenance Monitor on.

  • Scheduled Maintenance

  • Tire Rotation

  • Oil Change

When the remaining days to the maintenance period is 15 days or less, or the remaining distance is 1,000 km (600 miles) or shorter, a message is indicated when the ignition is switched ON.

For the setting method and indications for the maintenance monitor, refer to the Maintenance Monitor.

Refer to Maintenance Monitor (Search).

Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Display (Some Models)

Displays the currently set system status.



Refer to Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) (Search).

Distance Recognition Support System (DRSS) Display (Some Models)

Displays the distance between your vehicle and the vehicle ahead.



Refer to Distance Recognition Support System (DRSS) (Search).

Warning Indication/Warning Lights

These lights turn on or flash to notify the user of the system operation status or a system malfunction.

Signal

Warning

Page

Brake System Warning Indication/Warning Light*1*2

 (Search)

ABS Warning Light*1

Electronic Brake Force Distribution System Warning

(Search)

ABS warning

(Search)

Charging System Warning Indication/Warning Light*1

 (Search)

Engine Oil Warning Light*1

 (Search)

(Red)

High Engine Coolant Temperature Warning Light*1

 (Search)

Power Steering Malfunction Indication

 (Search)

Master Warning Indication

 (Search)

Electric Parking Brake (EPB) Warning Indication/Warning Light*1

 (Search)

Check Engine Light*1

 (Search)

Automatic Transaxle Warning Indication

 (Search)

AWD Warning Indication (Some Models)

 (Search)

Air Bag/Front Seat Belt Pretensioner System Warning Light*1

 (Search)

Tire Pressure Monitoring System Warning Light*1 (Some Models)

Flashing

(Search)

Turns on

(Search)

(Amber/White)

KEY Warning Indication

Amber

(Search)

White

(Search)

(Amber)

High Beam Control System (HBC) Warning Indication/Warning Light*1 (Some Models)

 (Search)

Blind Spot Monitoring (BSM) Warning Indication (Some Models)

 (Search)

(Amber)

Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Warning Indication (Some Models)

 (Search)

Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Warning Indication (Some Models)

 (Search)

LED Headlight Warning Light*1

 (Search)

(Amber)

Smart Brake Support/Smart City Brake Support (SBS/SCBS) Warning Indication (Some Models)

 (Search)

Low Fuel Warning Indication

 (Search)

Check Fuel Cap Warning Indication/Warning Light*1

 (Search)

Engine Oil Level Warning Light*1

 (Search)

Seat Belt Warning Light (Front seat)

 (Search)

Seat Belt Warning Light (Rear seat) (Some Models)

 (Search)

Low Washer Fluid Level Warning Indication (Some Models)

 (Search)

Door-Ajar Warning Indication

 (Search)

Liftgate-Ajar Warning Indication

 (Search)

  1. The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an Authorized Mazda Dealer.

  2. The light turns on continuously when the parking brake is applied.
