Instrument Cluster and Display

Odometer, Trip Meter and Trip Meter Selector

The odometer is constantly displayed on the screen when the ignition is switched ON, and the TRIP A or TRIP B screen can be displayed by operating the INFO switch.

Odometer

The odometer records the total distance the vehicle has been driven.

Trip meter

The driving distance for a specified interval is indicated. Two types (TRIP A, TRIP B) of interval distance and the average fuel economy for each can be measured.

For instance, trip meter A can record the distance from the point of origin, and trip meter B can record the distance from where the fuel tank is filled.

When trip meter A is selected, TRIP A will be displayed. When trip meter B is selected, TRIP B will be displayed.

The trip meter and average fuel economy can be reset by pressing the INFO switch for 1.5 seconds or more while in each mode.

Only the trip meters record tenths of kilometers (miles).
The trip record will be erased when:
- The power supply is interrupted (blown fuse or the battery is disconnected).
- The vehicle is driven over 9999.9 km (mile).

Close Note

View Note

Instrument Cluster (Type B)

Tachometer

The tachometer shows engine speed in thousands of revolutions per minute (rpm).

Do not run the engine with the tachometer needle in the RED ZONE.

This may cause severe engine damage.

Close Caution

View Caution

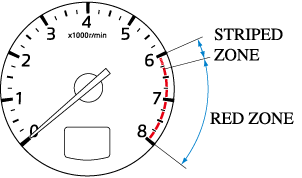

When the tachometer needle enters the STRIPED ZONE, this indicates to the driver that the gears should be shifted before entering the RED ZONE.

Close Note

View Note

Engine Coolant Temperature Gauge

Displays the engine coolant temperature. The blue gauge indicates that the engine coolant temperature is low, and the red gauge indicates that the engine coolant temperature is high and overheating.

If the high engine coolant temperature warning light (red) flashes, there is a possibility of overheating. Drive slowly to reduce engine load until you can find a safe place to stop the vehicle and wait for the engine to cool down.

Refer to Overheating (Search).

Close Caution

View Caution

If the engine coolant temperature is high or the engine is hot, the engine output may be limited.
The temperature unit (Centigrade/Fahrenheit) of the engine coolant gauge display changes in conjunction with the temperature unit of the outside temperature display.

Refer to Personalization Features (Search).
During normal driving, the engine coolant temperature stabilizes at 100 °C (210 °F) or less, and the gauge indicates a range lower than 100 °C (210 °F).

Close Note

View Note

Fuel Gauge

The fuel gauge shows approximately how much fuel is remaining in the tank when the ignition is switched ON. We recommend keeping the tank over 1/4 full.

If the fuel level is low, () and () turn an amber color. Refuel as soon as possible.

Refer to Taking Action (Search).

After refueling, it may require some time for the indicator to stabilize. In addition, the indicator may deviate while driving on a slope or curve since the fuel moves in the tank.
The direction of the arrow () indicates that the fuel-filler lid is on the left side of the vehicle.

Close Note

View Note

Distance-to-empty

This displays the approximate distance you can travel on the remaining fuel based on the fuel economy.

The distance-to-empty will be calculated and displayed every second.

Even though the distance-to-empty display may indicate a sufficient amount of remaining driving distance before refueling is required, refuel as soon as possible if the fuel level is very low or the low fuel warning light illuminates.
The display will not change unless you add more than approximately 9 L (2.3 US gal, 1.9 Imp gal) of fuel.
The distance-to-empty is the approximate remaining distance the vehicle can be driven until all the graduation marks in the fuel gauge indicating the remaining fuel supply disappear.
If there is no past fuel economy information such as after first purchasing your vehicle or the information is deleted when the battery cables are disconnected, the actual distance-to empty/range may differ from the amount indicated.

Close Note

View Note

Average Fuel Economy

The average fuel economy is calculated every minute from the total traveled distance on the trip meter and the total fuel consumption, and the average fuel economy for either TRIP A or TRIP B is displayed.

The average fuel economy and trip meters can be reset by pressing the INFO switch for 1.5 seconds or more while in each mode. After the data is cleared, the fuel consumption is recalculated and the - - - km/L (- - - mpg) for the 1 minute prior to it being displayed is indicated.

Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Display (Some Models)

Displays the currently set system status.

Refer to Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) (Search).

Cruise Control Set Vehicle Speed Display (Some Models)

The vehicle speed preset using the cruise control is displayed.

Refer to Cruise Control (Search).

Compass Display

The direction the vehicle is moving is displayed in one of eight directions while the vehicle is being driven.

Display	Direction
N	North
S	South
E	East
W	West
NE	Northeast
NW	Northwest
SE	Southeast
SW	Southwest

Warning (Display Indication)

A message is displayed to notify the user of the system operation status and malfunctions or abnormalities.

If the warning light turns on/flashes simultaneously or a symbol is indicated in the display, check the information regarding the warning light or symbol.

Refer to If a Warning Light Turns On or Flashes (Search).

For messages not indicating a symbol, follow the instructions indicated in the multi-information display.

Refer to Message Indicated in Multi-information Display (Search).

Low Engine Coolant Temperature Indicator Light (Blue)

The light illuminates continuously when the engine coolant temperature is low and turns off after the engine is warm.

Instrument Cluster (Type C)

Speedometer

The speedometer indicates the speed of the vehicle.

Warning Indication/Warning Lights

These lights turn on or flash to notify the user of the system operation status or a system malfunction.

Signal	Warning	Page
	Brake System Warning Light^12	(Search)
	ABS Warning Light^*1	Electronic Brake Force Distribution System Warning (Search)
	ABS Warning Light^*1	ABS warning (Search)
	Charging System Warning Light^*1	(Search)
	Engine Oil Warning Light^*1	(Search)
	Power Steering Malfunction Indicator Light^*1	(Search)
	Master Warning Light^*1	(Search)
	Electric Parking Brake (EPB) Warning Light^*1	(Search)
	Check Engine Light^*1	(Search)
	Automatic Transaxle Warning Light^*1	(Search)
	Air Bag/Front Seat Belt Pretensioner System Warning Light^*1	(Search)
(Red)	KEY Warning Light^*1	Turns on (Search)
(Red)	KEY Warning Light^*1	Flashing (Search)
	LED Headlight Warning Light^*1	(Search)
	Low Fuel Warning Light	(Search)
	Check Fuel Cap Warning Light^*1	(Search)
	Engine Oil Level Warning Light^*1	(Search)
	Seat Belt Warning Light	(Search)
	Door-Ajar Warning Light	(Search)

The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an Authorized Mazda Dealer.
The light turns on continuously when the parking brake is applied.
