Instrument Cluster and Display

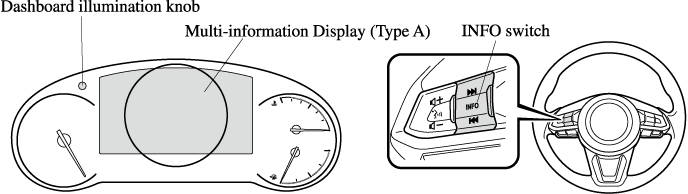

The multi-information display indicates the following information.

• Speedometer

• Odometer

• Trip meter

• Outside temperature

• Distance-to-empty

• Average fuel economy

• Current fuel economy

• Maintenance Monitor (Except SKYACTIV-D 2.2)

• Remaining Diesel Exhaust Fluid (DEF) and Maximum Driving Distance Display (SKYACTIV-D 2.2)

• Blind Spot Monitoring (BSM) Display

• Traffic Sign Recognition System (TSR) Display

• Distance Recognition Support System (DRSS) Display

• Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) System Display

• Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Display

• Cruise Control Display

• Compass Display

• Door-Ajar/Liftgate-Ajar Warning Indication

• Message Display

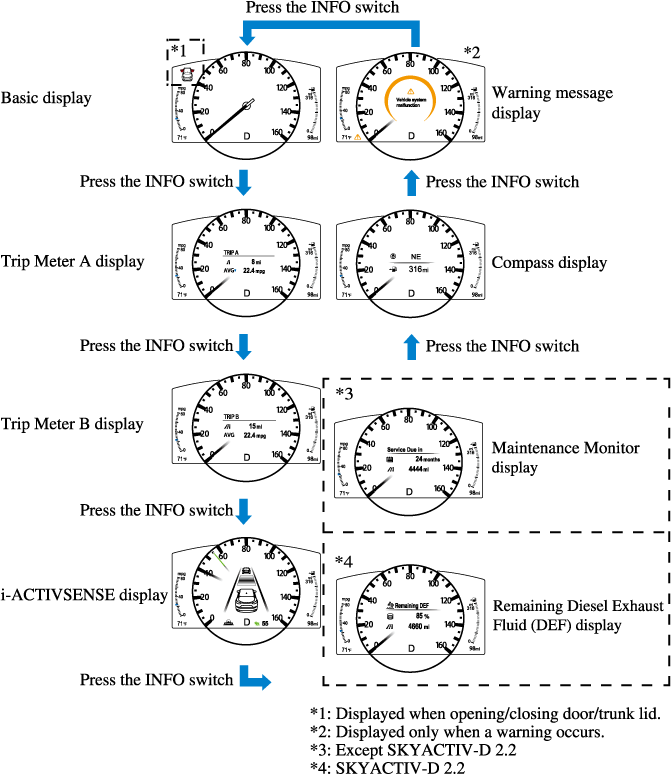

The screen content changes each time the INFO switch is pressed.

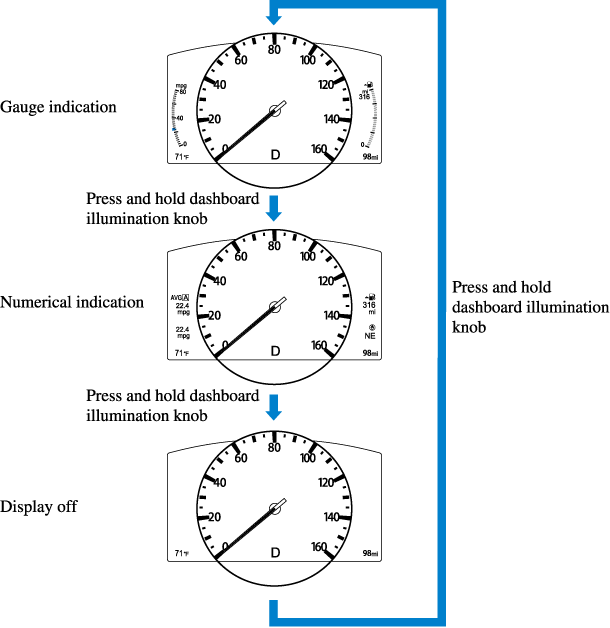

The screen content changes each time the dashboard illumination knob is pressed and held.

The fuel gauge shows approximately how much fuel is remaining in the tank when the ignition is switched ON. We recommend keeping the tank over 1/4 full.

If the low fuel warning light illuminates or the fuel level is very low, refuel as soon as possible.

If inconsistency in engine performance or stalling occurs due to low fuel level conditions, refuel the vehicle as soon as possible and add at least 10 L (2.7 US gal, 2.2 Imp gal) of fuel.

Refer to Taking Action (Search).



---

• After refueling, it may require some time for the indicator to stabilize. In addition, the indicator may deviate while driving on a slope or curve since the fuel moves in the tank.

• The direction of the arrow () indicates that the fuel-filler lid is on the left side of the vehicle.
